ALPINE TDE-7823W

|
1-+12 Volt Battery Wire |
9-Gnd |
2-Speaker LR- |
10-Speaker LF- |
3-Speaker LR+ |
11-Speaker LF+ |
4-Speaker RR- |
12-Speaker RF- |
5-Speaker RR+ |
13-Speaker RF+ |
7-Booster |
16-+12 VOLT IGNITION WIRE |
8-Power Antenna Turn On |
- |
ALPINE 7190M

|
2-Booster |
28-Speaker LF+ |
8-Gnd- Line out |
29-Gnd |
9-Line out R |
31-+12 Volt Battery Wire |
10-Line out L |
32-+12 VOLT IGNITION WIRE |
13-Power Antenna Turn On |
34-Speaker RR+ |
26-Speaker LR+ |
35-Speaker RR- RF- |
27-Speaker LR- LF- |
36-Speaker RF+ |
ALPINE AUK - 8610

ALPINE CDA 7969
ALFA ROMEO 932 RDS (ALPINE)
ALPINE TDE-7823W

ALPINE 7190M

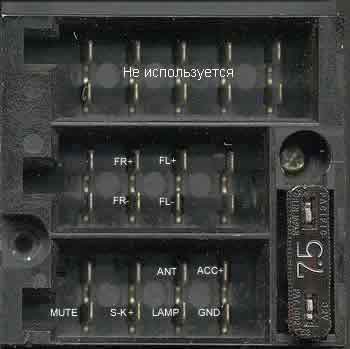

ALPINE for ALFA ROMEO 932 RDS

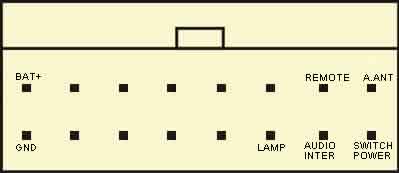

ALPINE CDA 7969

ALPINE CDA-9855R

ALPINE TDA-5641

ALPINE TDM-7990E

ALPINE СDA-9815RB

ALPINE 7293JS

ALPINE CDE-9802RB

ACURA BOSE mod. MT939CO by ALPINE (p/n 39101-SOK-A110-M1)

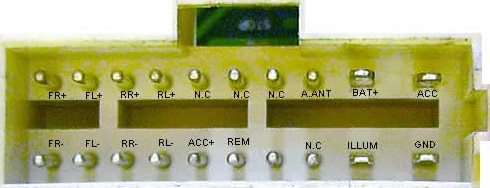

ALPINE AUK-8610 (KIA Logic Control)
ALPINE AUA-8600 (KIA Logic Control)

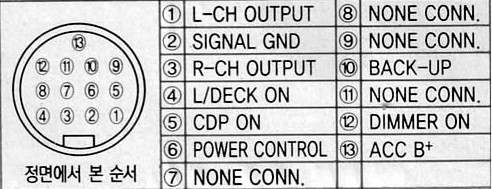

CDR ALPINE AUA-5000

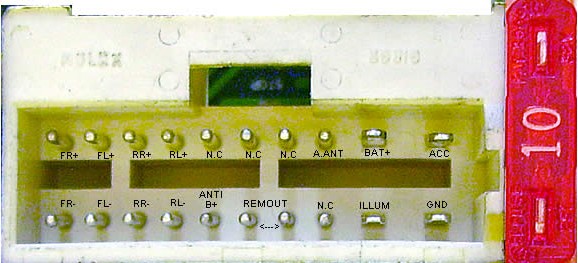

CDR ALPINE AUK-8613
Without equalizer AUK-4511

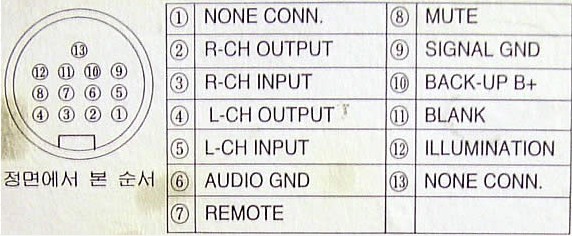

ALPINE 7 BAND EQUALIZER AUK-4511

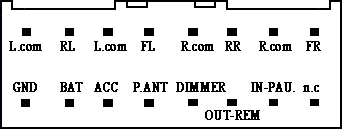

ALPINE 7293JS

ALPINE M-Bus data cable pinout
Models 5957, 5952V, CHM-S600, S601, S611, S620

ALPINE AI-Net Model CDA
|
The Alpine Ai-NET Auxillary
Input allows you to connect 1 audio auxiliary source (iPod, DVD
Player, MP3 Player, etc.) to any Alpine ready Ai-NET head unit.
Once connected, you can select the AUX source on your receiver
and utilize the Bass Engine sound-shaping functions to
personalize the playback. |

ALPINE AUK - 8610

ALPINE IVA-D100R

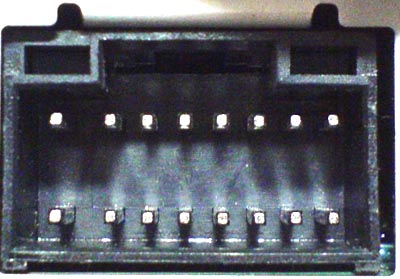

ALPINE IVA-D105R connector pinout



Alpine CDM9807RB


|
Car radio |
Model
autoradio |
Manufacturer |
MCU |
EEPROM |
IC Amplifier |
CD changer |
Car |
ALPINE |
1310R CD changer |
ALPINE |
|
|
|
|
|
ALPINE |
3077 |
ALPINE |
|
|
|
|
|
ALPINE |
5700DA |
ALPINE |
|
|
|
|
|
ALPINE |
580-1 |
ALPINE |
|
|
|
|
|
ALPINE |
7286L |
ALPINE |
51T8286F01 |
ER59256 |
|
|
|
ALPINE |
7287B |
ALPINE |
51T8286F01 |
ER59256 |
|
|
|
ALPINE |
7288L |
ALPINE |
|
X24C01 |
|
|
|
ALPINE |
7521R |
ALPINE |
51T85534W01 297 |
X24C01 smd |
|
|
|
ALPINE |
7828L |
ALPINE |
|
|
|
|
|
ALPINE |
7886 3CD |
ALPINE |
51T85534W01 297 |
X24C01 smd |
|
|
|
ALPINE |
7980 3CD |
ALPINE |
D75P116GF |
S24S45 |
|
|
|
ALPINE |
7982R 3CD |
ALPINE |
51T65166W02 + HD 6473726M H8/3726 |
X24C01 smd |
|
|
|
ALPINE |
7983R |
ALPINE |
51T75135W01 |
X24C01 smd |
|
|
|
ALPINE |
8613 |
ALPINE |
|
|
|
|
|
ALPINE |
8615 |
ALPINE |
|
|
|
|
|
ALPINE |
8617 |
ALPINE |
|
|
|
|
|
ALPINE |
8625 |
ALPINE |
D17010 |
X24C01 smd |
|
|
|
ALPINE |
AUA-8602 |
ALPINE |
51T65502W03 E22 |
X24C01 smd |
|
|
|
ALPINE |
AUA-8606 |
ALPINE |
51T65502W03 |
|
|
|
|
ALPINE |
AUK 3127 |
ALPINE |
D17P005GP |
24C01 |
|
|
|
ALPINE |
AUK 8613 |
ALPINE |
D17010GE 622 |
24C04 |
|
|
|
ALPINE |
CM1020 |
ALPINE |
|
|
|
|
|
ALPINE |
XDG101550LNF |
ALPINE |
|
|
|
|
|
ALPINE |
XQD000110LNF |
ALPINE |
|
|
|
|
|
ALPINE |
CMS80-1 |
ALPINE |
M50944EFP |
93LC46 |
|
|
|
ALPINE |
1310R CD |
ALPINE |
|
24LC04 |
|
ALPINE |
5700DA |
ALPINE |
|
|
|
ALPINE |
580-1 |
ALPINE |
|
|
|
ALPINE |
7286L |
ALPINE |
51T82868F01 |
ER59256 |
|
ALPINE |
7286L |
ALPINE |
51T82868F02 |
ER59256 |
|
ALPINE |
7287B |
ALPINE |
51T82868F02 |
ER59256 |
|
ALPINE |
7287J |
ALPINE |
51T82868F02 |
ER59256 |
|
ALPINE |
7288L |
ALPINE |
|
X24C01 |
|
ALPINE |
7521R |
ALPINE |
51T55383W01 |
X24C00 smd |
|
ALPINE |
7828L |
ALPINE |
|
|
|
ALPINE |
7886 3CD |
ALPINE |
51T85534W01-297 |
X24C01 smd |
|
ALPINE |
7980 3CD |
ALPINE |
D75P116GF |
S24S45 |
|
ALPINE |
7982R 3CD |
ALPINE |
51T65166W02 + HD6473726M |
X24C01 smd |
|
ALPINE |
CDA-7998R |
ALPINE |
M30624FGAGP-204 |
24C04 |
NO |
ALPINE |
CDM-7983R 3CD |
ALPINE |
51T75135W01 |
X24C01 smd |
NO |
ALPINE |
MRD-M300 |
ALPINE |
51T45654Y01 |
24C01 |
TDA7571 |
|
|
|
|
|
|
