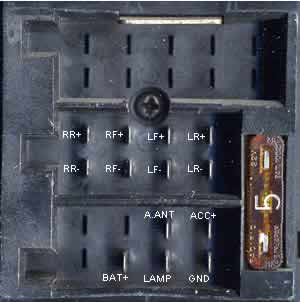

AUTOSOUND A 510

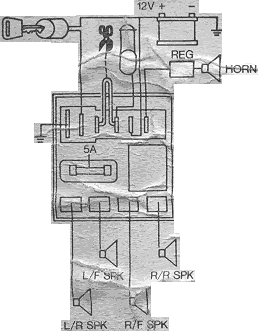

AUTOSOUND AS 560



Speaker Wiring Notes

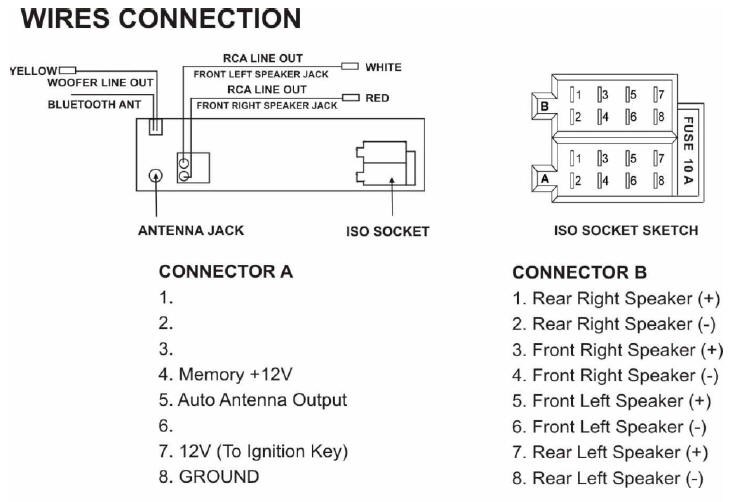

• Follow the above wiring diagram to install the head unit with new or existing
speakers.
• This unit is designed for use with four speakers with an impedance between
4Ohms to 8Ohms.
• An impedance load of less than 4 Ohms could damage the unit.
• Never Bridge or combine the speaker wire outputs. When not using four
speakers, use electrical tape to tape the ends of the un-used speaker outputs
to prevent a short circuit.
• Never ground the negative speaker terminals to chassis ground.



Wiring Connection

Make sure that you have a good chassis ground. Good ground connections will
eliminate most electrical noise problems. A good chassis ground requires a
tight connection to the vehicle's metal chassis. The area around the ground
connection should be clean, bare metal without rust, paint, plastic, dust, or dirt
for a good electrical connection.





Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

AUTOSOUND

A320

AUTOSOUND

LC7230

93C46







AUTOSOUND

A400

AUTOSOUND

D75116GF 652

CXK1012







AUTOSOUND

A420

AUTOSOUND

D1719G 552

CXK1012







AUTOSOUND

A430

AUTOSOUND

D1719G

CXK1012







AUTOSOUND

A440

AUTOSOUND

LC7230

93C46

2xLA4425





AUTOSOUND

A480

AUTOSOUND

D1719G 570

CXK1012







AUTOSOUND

A490

AUTOSOUND

D1719G 556

CXK1012







AUTOSOUND

A510

AUTOSOUND

LC7230 8338

93C46

TDA1554Q





AUTOSOUND

A560

AUTOSOUND

D1719G 570

CXK1012







AUTOSOUND

A590

AUTOSOUND

D75116GF 652 or 707

35C102







AUTOSOUND

A610

AUTOSOUND

D75116GF 707

35C102







AUTOSOUND

A620

AUTOSOUND

D75116GF 652 or 707

35C102







AUTOSOUND

A640

AUTOSOUND

LC7232

S2914







AUTOSOUND

A660

AUTOSOUND











AUTOSOUND

A690

AUTOSOUND

D75116GF 707

35C102

TDA1554Q





AUTOSOUND

A700

AUTOSOUND

MB88551H

ER5911







AUTOSOUND

A800 CD

AUTOSOUND

D17005GF 604

S2914









AUTOSOUND A320 AUTOSOUND LC7230 93C46 LA4425 x 2
AUTOSOUND A340 AUTOSOUND LC7232 8482 S2914 LA4485
AUTOSOUND A420 AUTOSOUND D1719G552 CXK1012 uPC1310V
AUTOSOUND A430 AUTOSOUND D1719 CXK1012
AUTOSOUND A440 AUTOSOUND LC7230 93C46 LA4425 x 2
AUTOSOUND A480 AUTOSOUND D1719G570 or 556 CXK1012 TA8205AH
AUTOSOUND A490 AUTOSOUND D1719G556 CXK1012
AUTOSOUND A510 AUTOSOUND LC7230 8338 93C46 TDA1554Q
AUTOSOUND A560 AUTOSOUND D1719G570 CXK1012 TA7270P
AUTOSOUND A590 AUTOSOUND D75116GF652 or 707 35C102
AUTOSOUND A610 AUTOSOUND D75116GF707 35C102
AUTOSOUND A620 AUTOSOUND D75116GF652 or 707 35C102
AUTOSOUND A640 AUTOSOUND LC7232 8421 S2914 HA13135
AUTOSOUND A690 AUTOSOUND D75116GF707 35C102 TDA1554Q
AUTOSOUND A700  ZURICH AUTOSOUND MB88551H 293N ER5911 TA7271P + TA7299P
AUTOSOUND A800 CD AUTOSOUND D17005GF604 S2914
AUTOSOUND AR70 AUTOSOUND CCR510V1.3 PCF8581
