CITROEN

Citroen

1-Speaker RF+

8-Speaker RF-

2-Speaker RR+

9-Speaker RR-

3-GND

10-+12 VOLT BATTERY WIRE

4-Power Antenna Turn On

11-Dash Light Dimmer Wire

5-+12 VOLT IGNITION WIRE

12-Speaker LR-

6-Speaker LR+

13-Speaker LF-

7-Speaker LF+

-







Citroen Clarion PU-2471   PU-2472    PU-2473

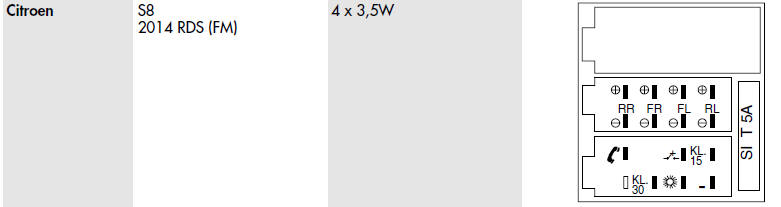

  Grundig auto radio S8, 2014 RDS (FM)





Citroen RD4 Blaupunkt connector radio wiring





Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

CITROEN

2014 RDS R

GRUNDIG

D17006 AGFE49

24C08





SAXO

CITROEN

2014 L

GRUNDIG









SAXO

CITROEN

2014 RDS FM

GRUNDIG



24LC08





SAXO

CITROEN

22 DC594/35 bez displeja

PHILIPS

P83CE558 EFB012

24C16







CITROEN

22 DC594/62 bez displeja

PHILIPS

P83CE558 EFB080

24C16





XM

CITROEN

22 RC200/35

PHILIPS

RC200/35-V110 PN-R3-V1.01  93CU44DF-4504  93CW44DF-1B03

24C32







CITROEN

22 RC220/35Z

VDO









XARA

CITROEN

22 RC290/35

VDO



24C32







CITROEN

22 RC465/23

PHILIPS



24E166







CITROEN

22 RC465/35S

PHILIPS

93CU44DF-4504

24D32 smd





XARA

CITROEN

BASIC N2 (C) BP1761

BLAUPUNKT

ST6154Q8EA

93C46

TDA2005





CITROEN

N2 (A) BP1760

BLAUPUNKT



93C46







CITROEN

PF1(A) BP1760

BLAUPUNKT









ZX  ,  BERLINGO

CITROEN

PF1(A) BP1761

BLAUPUNKT

ST6154Q8/EA (8925900455)

93C46

TDA2005



ZX  ,  BERLINGO

CITROEN

PF1(B) BP1770

BLAUPUNKT



93C46







CITROEN

PF1(D) BP5761

BLAUPUNKT

ST6154Q8

93C46







CITROEN

PH1(C) BP2775

BLAUPUNKT

ZC400854CFN  MC68HC05B6 (8925900921)

 NO SEC TMS70C82  RD

24C02 + MCU

2xTDA7374V



XANTIA

CITROEN

PH1(D) BP2490

BLAUPUNKT

MC68HC05B6 (8925901075)

MCU







CITROEN

PH1(D) BP2491 široki panel

BLAUPUNKT

MC68HC05B16                         TMS70C82  RDS

24C04 + MCU

2xTDA7374V





CITROEN

PH1(D) BP2492 široki panel

BLAUPUNKT

MC68HC05B6 (8925901651)









CITROEN

PH1(D) BP2492 široki panel

BLAUPUNKT

ZC99113CFN  MC68HC05B6 (8925901582)

MCU







CITROEN

PSA 100 CMV



D17006GF

93C46







CITROEN

PSA RCD111-00

VDO

280/65v1.30  93CW44DF-4F66

24C32







CITROEN

PU-1561A  XANTIA

CLARION

D17708GC572

93C46 smd





XANTIA

CITROEN

PU-1562A  XANTIA

CLARION











CITROEN

PU-2294A (C) CD

CLARION

D784216BGC111

93C46 smd rotated

TDA7385





CITROEN

PU-2294B (D)

CLARION



93C46 smd rotated







CITROEN

PU-2295A

CLARION

D784216BGC103

93C46







CITROEN

PU-2495C

CLARION











CITROEN

PU-2472

CLARION

D784216BY 106







XSARA

CITROEN

PU-2472C

CLARION



24C02





XSARA

CITROEN

PU-9358A

CLARION

D1719G 608



4xTA8201AK





CITROEN

PU-9427A

CLARION

D1719G 608









CITROEN

PU-9428

CLARION











CITROEN

PU-9479

CLARION











CITROEN

PU-9594A

CLARION

D75516GF

130 T46 S2914 rotated

2xTA8210L





CITROEN

PU-9597A

CLARION











CITROEN

PU-9636A

CLARION

D75328GC521

S2914







CITROEN

PU-9637A

CLARION









AX

CITROEN

PU-9666

CLARION

D1723GF 658









CITROEN

PU-9667A

CLARION

D1723GF







XANTIA

CITROEN

REVERSE N2 (B) BP1770

BLAUPUNKT



93C46







CITROEN

REVERSE N2 (D) BP1771

BLAUPUNKT



93C46








CITROEN PH1(C) BP2775 wide panel BLAUPUNKT MC68HC05B8 (8925900921)   TDA7350 x 2
CITROEN PH1(D) BP2490 wide panel BLAUPUNKT MC68HC05B6 (8925901075)   TDA7374 x 2
CITROEN PH1(D) BP2491 wide panel BLAUPUNKT MC68HC05B16 (8925901582)   TDA7374 X 2
CITROEN PH1(D) BP2492 wide panel BLAUPUNKT MC68HC05B6 (8925901651)   TDA7374 x 2
CITROEN N2 (A) BP1760 BLAUPUNKT   93C46
CITROEN PF1(A) BP1760 BLAUPUNKT ST6154Q8/RX (8925901834) 93C46 TDA2005
CITROEN PF1(B) BP1770 BLAUPUNKT ST6154Q8/BT (8925900346) 93C46 TDA2005
CITROEN PF1(C) BP1761 BLAUPUNKT ST6154Q8/EA/5 (8925900455) 93C46 TDA2005
CITROEN PF1(D) BP1771 BLAUPUNKT ST6154Q8/EA/5 (8925900455) 93C46 TDA2005
CITROEN PF1(D) 3021 RDS  BP5761 BLAUPUNKT TMP47C860F TMS375C006 TDA7374 x 2
CITROEN BASIC N2 (C) BP1761 BLAUPUNKT ST6154Q8/EA/5 93C46 TDA2005
CITROEN SAXO 2014 RDS GRUNDIG D17006AGFE49 or AGFE42 24C16 TDA8561Q
CITROEN SAXO 2014 RDS GRUNDIG   24LC08 smd
CITROEN 22 DC594/35 without display PHILIPS P83CE558EFB012 594/35set1.0 24C16 TDA7374 x 2
CITROEN 22 DC594/62 without display PHILIPS P83CE558EFB/080 24C16
CITROEN 22 RC200/35 PHILIPS RC200/35-V1.10    93CU44DF-1A50 24C32 smd TDA7375 +TDA7451
CITROEN 22 RC200/35 PHILIPS RC200/35-V110  93CU440F-1A50 24C32 smd TDA7375 +TDA7451
CITROEN 22 RC290/35  RD3-00   without display VDO RC290/35-V120  93CW44DF-3JB0 24C32 smd TDA7385
CITROEN 22 RC465/35 PHILIPS P83CE560EFB008 24E16 smd TDA7375
CITROEN 22 RC465/35S PHILIPS P83CE560EFB008 24E16 smd TDA7375
CITROEN 22 RC465/36 PHILIPS P83CE560EFB036 24E166 smd TDA7375 x 2
CITROEN 22 RC465/65 PHILIPS P83CE560EFB008 24E16 smd TDA7375 x 2
CITROEN NAVIGATION MAGNETI MARELLI + GRUNDIG D78F4225GC0151E 24C16 smd TDA7454
CITROEN PSA 100 CMV   D17006GF 93C46
CITROEN PSA RD4 B5 N1 KML VA  BP5137  without display BLAUPUNKT D703078AY156 (8928906229) 95640 smd + 25P05 smd TA8276H
CITROEN PU-1561A  XANTIA CLARION D17708GC572 93LC46 smd
CITROEN PU-1562A  XANTIA CLARION D17708GC529 93LC46 smd
CITROEN PU-2294A(C)   CD CLARION D784216BGC111 93C46 smd TDA7385
CITROEN PU-2294B(D)   CD CLARION D784216BGC111 93C46 smd TDA7385
CITROEN PU-2295A CD  without display CLARION D784216BGC112 93C46 smd TDA7385
CITROEN PU-2295B(H) CD CLARION D784216BGC122 93C46 smd
CITROEN PU-2295C CD CLARION D78F4216G9930C 93C46 smd
CITROEN PU-2295C CD CLARION D784216BGC112 93C46 smd TDA7385
CITROEN PU-2380B(E) CLARION D784216BY107 24C02 TDA7385
CITROEN PU-2472B(J) CLARION D784216BY109 24C02 smd
CITROEN PU-9358A CLARION D1719G608   TA8201AK x 4
CITROEN PU-9427A CLARION D1719G608   TA8201AK x 4
CITROEN PU-9428 CLARION
CITROEN PU-9479 CLARION
CITROEN PU-9594A CLARION D75516GF436 + D75328GC605 S2914 smd TA8210L x 2
CITROEN PU-9597A CLARION D75516GF291 + D75328GC188 S2914 smd TA8210L x 2
CITROEN PU-9636A CLARION D75328GC521 S2914 smd
CITROEN PU-9666A CLARION D1723GF658 or GF665   TA8210AH
CITROEN PU-9667A CLARION
CITROEN RB2-00  without display VDO RC220/35-V110     93CU44DF-1A89 24C32 smd TDA7375 + TDA7451
CITROEN RB3-00  without display SIEMENS VDO RC260/65-V110     93CU44DF-3G70 24C32 smd TDA7385
CITROEN SR-1406   LC72336-9C20 24LC16 smd
