DAEWOO

Daewoo

1 -+12 VOLT IGNITION WIRE

11 - Speaker RF+

2 -GND

12 -Speaker RF-

3 -+12 VOLT BATTERY WIRE

13 -Speaker LF+

4 -Dash Light Dimmer Wire

14 -Speaker LF-

5 -Power Antenna Turn On

15 -Speaker LR+

6 -Speaker RR+

16 -Speaker LR-

7 -Speaker RR-

-







DAEWOO AKF-4087XC    AKF-9625

DAEWOO AKF-4087XC

1- Speaker RR (-)

8 - SpeakerRR SP (+)

2 - Speaker RL (-)

9 - Negative ground

3 - Auto anten

10 - Light lluminator

4 - Acc B (+) power

11 - Battery B+

5 - Speaker FR SP (+)

12 - Speaker FR SP (-)

6 - Speaker FL SP (+)

13 - Speaker FL SP (-)

7 -Speaker RL SP (+)

-







DAEWOO AKF- 43065

1-Front R-CH SP+

7 -Rear L-CH SP+

13 -No conection

2 -Rear R-CH SP+

8 -Front L-CH SP+

14 -Gnd

3 -ILLumination

9 -Front R-CH SP-

15 -No conection

4 -ACC B+

10 -Rear R -CH SP-

16 -No conection

5 -Back-UP B+

11 -ILLumination

17 -Rear L-CH SP-

6 -No conection

12 -Auto Ant B+

18 -Front L-CH SP-

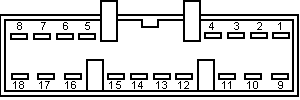

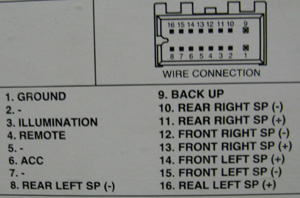

DAEWOO AKF- 8846   AKF- 8847

DAEWOO AKF-8846, AKF-8847

1 -Speaker RF+

7 -Speaker LR+

12 -+12 VOLT IGNITION WIRE ANTENN

2 -Speaker RR+

8 -Speaker LF+

14 -GND NEGATIVE

3 -ILL DIMM(B+)

9 -Speaker RF-

17 -Speaker LR-

4 -ACC B+

10 -Speaker RR-

18 -Speaker LF-

5 -BACK UP B+

11 -LL KONTROL V

-







DAEWOO AKF-9255V

Daewoo AKF-9255V

1 -Speaker RF+

9 -GND Line out

2 -Speaker RF-

10 -Speaker LF+

3 -Speaker RR+

11 -Speaker LF-

4 -Speaker RR-

12 -Speaker LR+

5 -GND

13 -Speaker LR-

6 -GND

14 -+12 VOLT IGNITION WIRE

7 -+12 VOLT BATTERY WIRE

15 -+12 VOLT IGNITION WIRE

8 -Line out R

16 -Power Antenna Turn On







DAEWOO AKF-9255XV

1 -Speaker RF+



7- +12 Volt Ignition Wire



19 -Speaker LF-

 Ч

2 -Speaker RF-

 Ч

14 -



20 -Speaker LF+



3 -Speaker RR+



15 -питание antenna.



-

-

4 -Speaker RR-

 Ч

17 -Speaker LR-

 Ч

-

-

6 -gnd



18 -Speaker LR+



-

-







DAEWOO AKF-9345

A

B

C

4-Питание B+

1-Speaker RR+

5-Лин

5-Antennaенна В+

2-Speaker RR-

6-Лин

7-U+ ACC

3-Speaker RL+

8-GND

8-GND

4-Speaker RL-

10-Amplifier

-

5-Speaker FL+

-

-

6-Speaker FL-

-

-

7-Speaker FR+

-

-

8-Speaker FR-

-







DAEWOO AKF-9625WY-RE





 Daewoo AGC-7112RC





DAEWOO AKF-8017X AKF-0305RC





DAEWOO PX2640AG 96192335U00

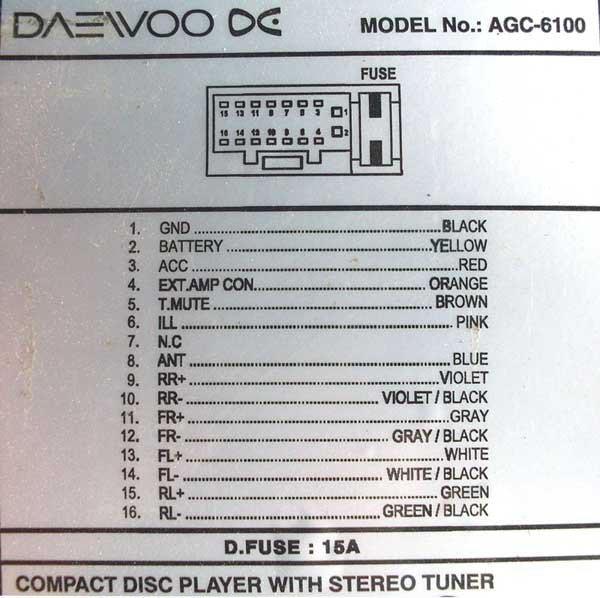

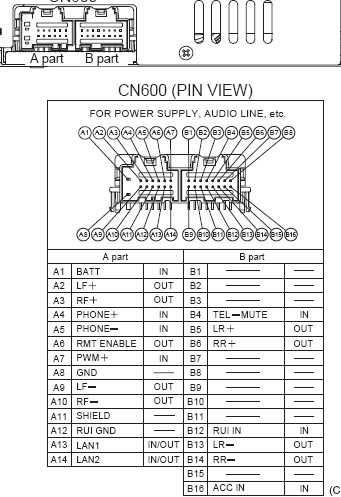

Daewoo AGC-6100





DAEWOO AKF-8055x

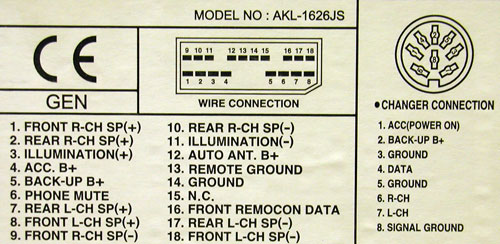

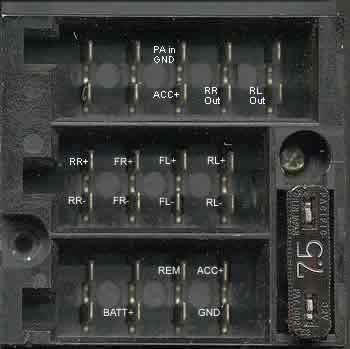

DAEWOO AKL-1626JS





DAEWOO AKL-1676TS

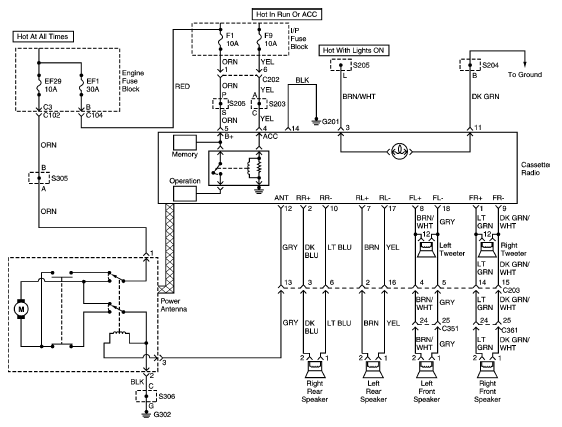

Daewoo Leganza Audio System Stereo Wiring Diagram





Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

DAEWOO

AKB-0516AC-A

DAEWOO

AKF 0816 UP2

24LC02 smd







DAEWOO

AKD-0636VS  MC+CD

DAEWOO











DAEWOO

AKD-4346EG

DAEWOO

C63511Y  AKF4316-S

24LC02







DAEWOO

AKD-4346EY

DAEWOO

C63514Y  AKF4316-2

24LC02







DAEWOO

AKD-4346 MC+CD

DAEWOO











DAEWOO

AKD-4401W

DAEWOO

CXP5048H240

CXK1023M







DAEWOO

AKF-0306RE

DAEWOO

LC72362

24LC16 smd

HA13158





DAEWOO

AKF-0315RC

DAEWOO



24LC16 smd







DAEWOO

AKF 0816EG

DAEWOO

C63513Y AKF0816-1









DAEWOO

AKF-0816EY

DAEWOO

C63516Y  AKF0816-2

24C02







DAEWOO

AKF-0827RR

DAEWOO

LC72366-9553  9DA0

24LC16







DAEWOO

AKF-4085

DAEWOO











DAEWOO

AKF-4306EG

DAEWOO

D17012GF-E13  DMC-T-MASTER



TDA8560Q





DAEWOO

AKF-4331

DAEWOO

D17012GFE13



TDA8560Q





DAEWOO

AKF-4336EG

DAEWOO

D1712GF-E31



TDA1519Q





DAEWOO

AKF-4637

DAEWOO











DAEWOO

AKF-5073WKG

DAEWOO











DAEWOO

AKF-8817R

DAEWOO

D17006GF 664

24LC01







DAEWOO

AKF-9395

DAEWOO

D17005GF 667









DAEWOO

AKF-9445R

DAEWOO

D17006AGF E25

24C01

TDA7394





DAEWOO

AKF-9625 WG-RE  TANK

DAEWOO

D1723GF 720



TDA8560Q





DAEWOO

AKF-9635

DAEWOO











DAEWOO

AKF-9637WG

DAEWOO

D1723GF









DAEWOO

CM-3919

ALPINE

51T25615W03









DAEWOO

KONDOR CD

DAEWOO











DAEWOO

KRD410

DAEWOO

D1723GF 613









DAEWOO

KRDS 240

DAEWOO











DAEWOO

RADIO 1 BP1040

BLAUPUNKT











DAEWOO

RADIO 2 BP1048

BLAUPUNKT











DAEWOO

RADIO 3 BP1043

BLAUPUNKT













DAEWOO AKB-0516AC-A DAEWOO AKF 0816 UP2 24LC02 smd
DAEWOO AKD-0636VA  CC+CD DAEWOO LC723748-9918
DAEWOO AKD-0636VS  CC+CD DAEWOO LC723748-9918
DAEWOO AKD-4346AG-A DAEWOO AKF4342UP 24LC02
DAEWOO AKD-4346EY DAEWOO AKF4316-2  (C63514Y) 24LC02
DAEWOO AKD-4401W DAEWOO CXP5048H240 CXK1023M
DAEWOO AKF-0305W DAEWOO LC72362-9433 24LC16 smd HA13158A
DAEWOO AKF-0306RE DAEWOO LC72362 24LC16 smd HA13158
DAEWOO AKF-0646LA DAEWOO LC723700
DAEWOO AKF-0676JA DAEWOO LC723748   TDA8571J
DAEWOO AKF-0816AG-A DAEWOO AKF-0816UP2  C168-006  9943C C012 24LC16 HA13158A
DAEWOO AKF-0816EY DAEWOO AKF0816-2  (C63516Y) 24C02
DAEWOO AKF-0816HG DAEWOO AKF0816-2  (C63516Y) 24C02
DAEWOO AKF-0827RR DAEWOO LC72366-9553 24C16 TDA7386
DAEWOO AKF-4306EG DAEWOO D17012GFE13   TDA8560Q
DAEWOO AKF-4331 DAEWOO D17012GFE13   TDA8560Q
DAEWOO AKF-4336EG DAEWOO D17012GFE31   TDA1519Q
DAEWOO AKF-4015EW DAEWOO SD4002 B0452G   TDA1519CJ
DAEWOO AKF-4085 DAEWOO D17012GF555   TDA8560Q + TDA1519Q
DAEWOO AKF-4637 DAEWOO
DAEWOO AKF-5073K  panel DAEWOO D17006AGFE25 24C01 smd TDA7394
DAEWOO AKF-5073WKG DAEWOO
DAEWOO AKF-8817R DAEWOO D17006AGF664 24LC01 smd
DAEWOO AKF-8846JSN DAEWOO DAEWOO 8846V1-607 (0143M3001)   HA13158A
DAEWOO AKF-9445R DAEWOO D17006AGFE25 24C01 TDA7394
DAEWOO AKF-9635 DAEWOO
DAEWOO AKF-9637WG-RE DAEWOO D1723GF
DAEWOO AKL-1626JS DAEWOO LC723748
DAEWOO AKL-1676JS DAEWOO LC723748N 9C80   TDA8571J
DAEWOO AKL-1676TS DAEWOO LC723748 9B98   TDA8571J
DAEWOO AKR-1846US DAEWOO D17012GF621   TDA8571J
DAEWOO AKR-1846TS DAEWOO D17012GF621   TDA8571J
DAEWOO AKR-4625WG-E DAEWOO LC72P338 or LC72336 9C77 NO TDA8560Q
DAEWOO KONDOR CD DAEWOO
DAEWOO KRD410 DAEWOO D1723GF613
DAEWOO TANK AKF-9625WG-RE DAEWOO D1723GF720   TDA8560Q
DAEWOO TANK AKF-9625WY-RE DAEWOO DMC4001-002   TDA8560Q
DAEWOO AKF-9625W DAEWOO DMC4001-002   TDA8560Q
DAEWOO RADIO 1  BP1040 BLAUPUNKT ST7285 (8925905004) 24C16 smd + M92256 smd TDA7375A x 2
DAEWOO RADIO 2  BP1048 BLAUPUNKT ST7285 (8925905004) 24C16 smd + M92256 smd TDA7375A x 2
DAEWOO RADIO 3  BP1043 BLAUPUNKT ST7285 (8925905004) 24C16 smd + M92256 smd TDA7375A x 2
DAEWOO CM-3919 ALPINE 51T25615W03
