2000 Dodge Neon Stereo Wiring

Permanant 12V+ Pink
Accessories 12V+ Red/White
Ground - Black
Illumination Orange
Dimmer Black/Yellow
Antenna Location Right Front
Front Speakers 6 1/2 Doors
Front Left + Dark Green
Front Left - Brown/Red
Front Right + Purple
Front Right - Dark Blue/Red
Rear Speakers 6 x 9 Rear Deck
Rear Left + Brown/Yellow
Rear Left - Brown/Light Blue
Rear Right + Dark Blue/White
Rear Right - Dark Blue/Orange

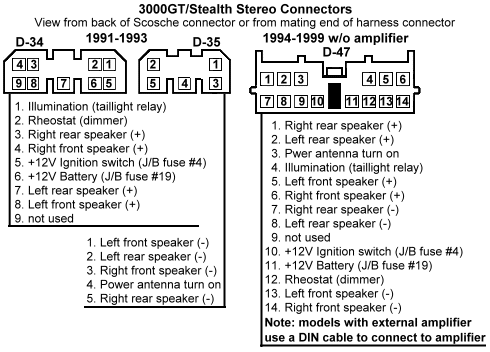

Dodge 3000GT Stealth





Dodge car stereo wiring harness







Philips 22DC964-52R 22DC924-02R





Dodge Durango 2004







Dodge Durango 2004 stereo wiring connector C2









Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

DODGE

PH 964/52R

PHILIPS



24C16 + 24C04
