FIAT Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.car stereo harness wire speaker pinout connectors power how to install






  Fiat
 Bravo / Brava / Marea / Weekend Maera
 Grundig AD182H and AD185H (x)





A: Power B: Speakers C: Changer / special
1. weight (x) 1. RR 1. -
2. tel mute (x) 2. RR - 2. -
3. ant control (x) 3. RF 3. -
4. +12 V ACC 4. RF - 4. -
5. - 5. LF 5. -
6. Illumination 6. LF - 6. -
7. +12 V BATT 7. LR 7. -
8. Ground (-) 8. LR - 8. pilot - mass
Radio has a logic of ignition, so the pros are swapped places.

  • R - right (right)
  • L - Left (left), second letter indicates the location of

  • R - Rear (rear)
  • F - Front (front)
    - means the negative speaker terminal
    Note: Do not connect (-) with the mass of the vehicle and may damage the amplifier.
  • 9pilot - in
    10. -
    11. -
    12 -
    13. CD-Bus
    14. -
    15. CD-Bus GND
    16. 12 V constant
    17. +12 V from the radio-controlled
    18. CD-NF GND
    19. NF CD-Left
    20. Right-NF CD
    CD Changer Interface 13-20
    This is a standard Grundig MCD36/40. Some versions have a car with the steering wheel radio controls, and if it is connected to the remote connector (not always on the radio is a connector). This is a typical resistor ladder. The contacts marked (x) occur only in the model AD185H.




    Fiat Punto

     Blaupunkt Punto Low




    Fiat Punto  Blaupunkt Punto Low



    A: Power B: Speakers C: Changer / special
    1. - First RR First -
    2. - Second RR - Second -
    3. +12 V control Third RF Third -
    4. - 4. RF - 4. -
    5. antenna control 5. LF 5. -
    6. - 6. LF - 6. -
    7. +12 V BATT 7. LR 7. -
    8. Ground (-) 8. LR - 8. -
    Radio is connected only one plus, so do not turn off the ignition.

  • R - right (right)
  • L - Left (left), second letter indicates the location of

  • R - Rear (rear)
  • F - Front (front)
    - means the negative speaker terminal
    Note: Do not connect (-) with the mass of the vehicle and may damage the amplifier.
  • 9. -
    10. -
    11. -
    12 -
    13. CD BUS RX
    14. CD BUS TX
    15. 12 V, not to exclude
    16. -
    17. -
    18. Audio CD GND
    19. CD audio L
    20. Audio CD R
    CD Changer Interface 13-20









    Fiat  Punto

    Blaupunkt CD High Punto Fiat Stilo HIGH CD





    A: Power B: Speakers C: Changer / special
    1. tel mute 1. RR 1. CAN B
    2. tel mute gnd 2. RR - 2. CAN A
    3. +12 V control 3. RF 3. -
    4. - 4. RF - 4. tel nf in -
    5. antenna control 5. LF 5. tel + nf in
    6. - 6. LF - 6. -
    7. +12 V BATT 7. LR 7. -
    8. Ground (-) 8. LR - 8. -
    Radio is connected only one plus, so do not turn off the ignition.

  • R - right (right)
  • L - Left (left), second letter indicates the location of

  • R - Rear (rear)
  • F - Front (front)
    - means the negative speaker terminal
    Note: Do not connect (-) with the mass of the vehicle and may damage the amplifier.
  • 9. -
    10. -
    11. -
    12 -
    13. DATA IN
    14. DATA OUT
    15. 12 V, not to exclude
    16. 12 V off
    17. mass
    18. Audio CD GND
    19. CD audio L
    20. Audio CD R
    CD Changer Interface 13-20
     Changer connector looks like a standard Blaupunkt. Explanations may include CAN bus interface. It provides information about the signal speed, and is used to identify the car, if it is not connected to the radio will not turn on just shows CANCHECK.



    Fiat Stilo






    A: Power B: Speakers C: Changer / special
    1. CAN B 1. RR 1. TMC In + Audio
    2. subwofer active 2. RR - 2. TMC audio in -
    3. CAN A 3. RF 3. TMC mute in
    4. +12 V ACC 4. RF - 4. -
    5. antenna control 5. LF 5. -
    6. - 6. LF - 6control amplifier *
    7. +12 V BATT 7. LR 7. tel in +
    8. Ground (-) 8. LR - 8. tel in -
    Radio has a logic of ignition, so the pros are swapped places.

  • R - right (right)
  • L - Left (left), second letter indicates the location of

  • R - Rear (rear)
  • F - Front (front)
    - means the negative speaker terminal
    Note: Do not connect (-) with the mass of the vehicle and may damage the amplifier.
  • 9. tel mute
    10. -
    11. -
    12. Tel GND
    13. CD out date
    14. CD data in
    15. 12 V constant
    16. Switchable +12 V
    17. CD weight of .e bus
    18. Audio CD GND
    19. CD audio L
    20. Audio CD R
    CD Changer Interface 13-20
    Changer is probably a standard Blaupunkt CDC-A08, despite confusing description. Contact marked * are not always connected. The radio is connected with the installation of the car using the CAN bus. Some radios are additionally secured control of the CAN modules are connected, if it does not detect the display will show the message CANCHECK. This is a very effective protection against the use of another's property, but it turns out that it is no longer a problem to bypass the blockade.



    Fiat Ducato, Panda

    Blaupunkt CD, MP3 Blaupunkt Blaupunkt CC






    A: Power B: Speakers C: Changer / special
    1.CAN B First RR First -
    2. BOSE IN Second RR - Second -
    3.CAN A Third RF Third -
    4. - 4. RF - 4. -
    5. antenna control 5. LF 5. -
    6. - 6. LF - 6. control BOSTER
    7. +12 V BATT 7. LR 7. Tel: AF +
    8. Ground (-) 8. LR - 8. Tel: AF-
    Radio is connected only one plus, so do not turn off the ignition.

  • R - right (right)
  • L - Left (left), second letter indicates the location of

  • R - Rear (rear)
  • F - Front (front)
    - means the negative speaker terminal
    Note: Do not connect (-) with the mass of the vehicle and may damage the amplifier.
  • 9. Tel Mute
    10. RC-A
    11. RC-B
    12. mass
    13. DATA OUT
    14. DATA IN
    15. 12 V, not to exclude
    16. 12 V off
    17. mass
    18. Audio CD GND
    19. CD audio L
    20. Audio CD R
    CD Changer Interface 13-20
    Changer connector looks like a standard Blaupunkt. Explanations may include CAN bus interface. It provides information about the signal speed, and is used to identify the car, if it is not connected to the radio will not turn on just shows CANCHECK. I rozpracowanego pilot to radio (soon will be on the side of the pilots), which is connected to pin RC-A and RC-B. The same connector also has a radio to some versions of the Lancia and Citroen and Peugeot vans.





    Blaupunkt 7643385616 (cancheck) - Fiat Code Entry Instructions


    Turn on the radio, the display should show ' CANCHECK 'while the set searches for the vehicles ECU.

    If the radio is being installed in its original vehicle then the set will switch on after a short while.

    However if the set is being installed in a new vehicle then after ' CANCHECK ' has been displayed ' CODE ' will appear on display.

    Input the code using [ Pre-sets 1-6 ]. To save use the station pre-set [ >> ].

    The set will now operate.






      Fiat Grundig A182 H3, AD182 H4, AD182 M2, AD183 M Spider






















    Fiat Bravo Brava Marea stereo radio wiring

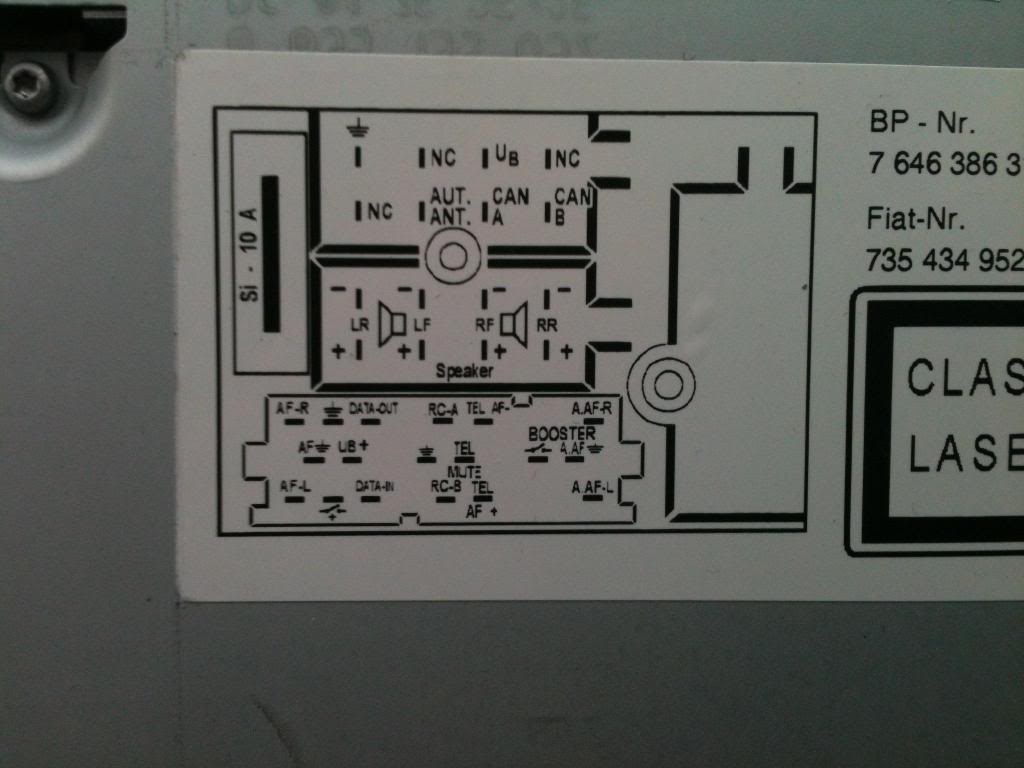

    Fiat Panda stereo wiring connector



    • Fiat Blaupunkt CDC-A08 compatible

    • Fiat 500 2007 Bosch Fiat 312

    • Fiat Bravo II 2007 Blaupunkt

    • Fiat Croma 2007 Blaupunkt

    • Fiat Dobló Panorama 2009 Blaupunkt

    • Fiat Fiorino 2008 Blaupunkt

    • Fiat Grande Punto 2005 Blaupunkt

    • Fiat Linea 2007 Blaupunkt

    • Fiat Multipla Blaupunkt

    • Fiat Panda (2nd gen) 2003 2012 Blaupunkt 169

    • Fiat Panda (3nd gen) 2012 Continental Basic (non-navigation) Radio

    • Fiat Punto EVO 2010 Delphi F199

    • Fiat Qubo 2007 Blaupunkt

    • Fiat Sedici 2006 all Non navigation head units











    CONNECT NAV+



    CONNECTOR A

    •  1         N.C.                                                                2         N.C.

    •  3         N.C.                                                                4         N.C.

    •  5         N.C.                                                                6         12v Controlled by Ignition for ask Amplifier

    •  7         N.C                                                                 8         N.C

    •  9         N.C.                                                               10        Input 1 for Steering Wheel Buttons

    • 11        Input 2 for Steering Wheel Buttons                    12        Reference for Steering Wheel Buttons

    • 13        Rx CD Changer BUS                                        14        Tx CD Changer BUS

    • 15        12v Permanent for CD Changer                          16        12v Controlled by Ignition for CD Changer

    • 17        GND CD Changer BUS                                     18        Audio Reference from CD Changer

    • 19        Left Audio Signal from CD Changer                     20        Right Audio Signal from CD Changer



    CONNECTOR B

    •  1         + Right Rear Speaker                                      2         - Right Rear Speaker

    •  3         + Right Front Speaker                                     4         - Right Front Speaker

    •  5         + Left Front Speaker                                       6         - Left Front Speaker

    •  7         + Left Rear Speaker                                        8         - Left Rear Speaker



    CONNECTOR C

    •  1         BUS B-CAN B                                                  2         Input from BOSE Amplifier

    •  3         BUS B-CAN A                                                  4         Key on Input (+Key)

    •  5         12v for Automatic Aerial                                     6         N.C.

    •  7         12v Permanent                                                  8         GND Supply



    CONNECTOR D

    •  1         N.C.                                                                2         Serial Line for Telepass

    •  3         N.C.                                                                4         N.C.

    •  5         N.C.                                                                6         Input from Privacy Handset

    •  7         Audio Signal to Privacy Handset (MIC OUT)        8         Microphone Input from Privacy Handset (MIC IN)

    •  9         Input from Handsfree Microphone                      10        N.C,

    • 11        N.C.                                                               12        Electronic Earth

    • 13        Crash –ve Signal from Airbag ECU                    14        N.C.

    • 15        N.C.                                                               16        Microphone Input from Privacy Handset (MIC IN Ref)

    • 17        Audio Signal to Privacy Handset                       18        Input from Handsfree Microphone (MIC IN Ref)

    •            (MIC OUT Ref)






    Car radio

    Model autoradio

    Manufacturer

    MCU

    EEPROM

    IC Amplifier

     Car

    FIAT

    188 HIGH  BP1376

    BLAUPUNKT

    SC401686CFU2  MC68HC11PA8 (8925904870)  CAN-BUS

     24C08 + MCU

    2xTDA7375

    PUNTO

    FIAT

    188 HIGH  BP1376

    BLAUPUNKT

    SC401695CFU2  MC68HC11PA8 (8925904889)  CAN-BUS

    24C08 + MCU

    2xTDA7375

    PUNTO

    FIAT

    188 HIGH  BP1376

    BLAUPUNKT

    SC514307CFU2  MC68HC11PA8 (8925905242)  CAN-BUS

    24C08 + MCU

    2xTDA7375

    PUNTO

    FIAT

    188 LOW   BP9372

    BLAUPUNKT

    M990B9927C (8925904411)

    25LC160



    PUNTO

    FIAT

    188 MID    BP1374

    BLAUPUNKT

    M990G0218C (8925904798)   CAN-BUS

    25LC160



    PUNTO

    FIAT

    188 MID    BP9374

    BLAUPUNKT

    M990B0009C (8925904533) CAN-BUS

    25LC160



    PUNTO

    FIAT

    22 DC449/64L

    PHILIPS

    TMP87CM21F-2212

    ST24166





    FIAT

    22 RC465/65

    PHILIPS

    P83CE560EFB008

    24E16 smd





    FIAT

    22 DC710/64S

    PHILIPS



    24C08





    FIAT

    22 RC465/65

    PHILIPS

    P83CE560EFB008

    24E16 smd





    FIAT

    AD 182H

    GRUNDIG

    D17006AGF E31

    24C08





    FIAT

    AD 182H  MAREA

    GRUNDIG

    D17006E 41C

    24C08





    FIAT

    AD 182H2

    GRUNDIG



    24C16





    FIAT

    AD 182L

    GRUNDIG







    BRAVO,  BRAVA,

    MAREA

    FIAT

    AD 182H4

    GRUNDIG

    NEC

    24C16





    FIAT

    AD 182M





    24C16





    FIAT

    AD 183M

    GRUNDIG

    D17006AGF E47

    GRN009





    FIAT

    AD 185H(B)

    GRUNDIG

    D17006AGFE 43 or 44

    24C08





    FIAT

    ALFA  156 CD BP0378

    BLAUPUNKT

    MC68HC11PA8 (8925904889)

    24C08





    FIAT

    BP9373

    BLAUPUNKT









    FIAT

    CRX 83R

    CLARION

    D75116GF-762

    93C46





    FIAT

    DIGITAL STEREO AD 185H

    GRUNDIG

    D17006AGF E43

    24C08





    FIAT

    DUCATO CC MID    BP0373

    BLAUPUNKT

    MC68HC11PA8 (8925905063)





    DUCATO

    FIAT

    DUCATO CD HIGH  BP0377

    BLAUPUNKT







    DUCATO

    FIAT

    GRANADA AS0480

    AUTOSOUND

    D1719G 570

    CXK1012





    FIAT

    IRRADIO XR-2000



    LC7232SANY

    93C46





    FIAT

    IRRADIO XRC-3000



    D17010GF 532

    93C56





    FIAT

    MAREA

    GRUNDIG

    FIAT H2/02 GRUNDIG 9837K8059

    24C16





    FIAT

    MULTIPLA CC BP2371

    BLAUPUNKT









    FIAT

    MULTIPLA CD BP2372

    BLAUPUNKT









    FIAT

    MULTIPLA

    BLAUPUNKT



    24C08



    MULTIPLA

    FIAT

    PALIO CC BP1371

    BLAUPUNKT

    SC401694CFU2  MC68HC11PA8  (8925904887)

    24C08



    PALIO

    FIAT

    PALIO CD BP1372

    BLAUPUNKT









    FIAT

    PUNTO CD  BP2375

    BLAUPUNKT

    D70F3079AYGC (8609503102)

    ST95320 smd + 25P10 smd

     TA8276H

    PUNTO

    FIAT

    SCUDINO CC MID   BP0371

    BLAUPUNKT

    SC401687CFU2  MC68HC11PA8  (8925904781)CAN-BUS

    24C08 + MCU



    SCUDINO , DOBLO

    FIAT

    SCUDINO CD HIGH BP0370

    BLAUPUNKT

    MC68HC11PA8 (8925904780)  CAN-BUS

    24C08 + MCU



    SCUDINO , DOBLO

    FIAT

    TRAVEL PILOT ALPHA 156 BP1491

    BLAUPUNKT

    FIS







    FIAT

    TRAVEL PILOT RNS 3  BP1330

    BLAUPUNKT

    FIS

    95LC160



    PUNTO

    FIAT

    TRAVEL PILOT RNS 3  BP1430

    BLAUPUNKT

    FIS  (8638340560A02)

    95LC160



    PUNTO

    FIAT

    TRAVEL PILOT RNS4

    BLAUPUNKT







    MULTIPLA

    FIAT



    BLAUPUNKT









    FIAT

    OB

    VISTEON

    ST92F120V1Q7    CAN-BUS





    STILO


    FIAT 169 CC NSB  BP3389 BLAUPUNKT D70F3079AYGC 95160W smd + 25P10 smd TA8276H
    FIAT 199 CD BP5352 BLAUPUNKT   95320 smd TA8276H
    FIAT 199 CD MP3  BP5353 BLAUPUNKT D703078AY-163 (8928907169) 95320 smd TA8276H
    FIAT 199 CD  BP6327 BLAUPUNKT D70F3281YGC V850ES/SG2 95320 smd TA8276H
    FIAT 199 CD  BP6328 BLAUPUNKT D70F3281YGC V850ES/SG2 95320 smd TA8276H
    FIAT 223 MP3  BP6332 BLAUPUNKT D70F3281YGC 25320 smd TA8276H
    FIAT 250 CD  BP6322 BLAUPUNKT D70F3281YGC 95320 smd TA8276H
    FIAT 250 MP3  BP6322 BLAUPUNKT D70F3281YGC 95320 smd TA8276H
    FIAT 22 DC349/64 PHILIPS 47C820DF-NA51 349/00-V1.0 24C04 TDA7374B
    FIAT 22 DC449/64S PHILIPS 87CM21F-2222  DC449/64-V2.0 24C16 smd TDA7375 x 2
    FIAT 22 DC449/64L PHF011W PHILIPS 87CM21F-2222  DC449/64 V2.0 24C16 smd
    FIAT 22 RC465/65 PHILIPS P83CE560EFB008 24E16 smd TDA7375 x 2
    FIAT 22 DC501/64 PHILIPS D1723GF644 24C02
    FIAT 22 DC710/64S PHILIPS   24C08
    FIAT AD 182H GRUNDIG D17006AGFE43 24C08 TDA7375 x 2
    FIAT AD 182H2 GRUNDIG   24C16
    FIAT AD 182L GRUNDIG D1713AG674   TDA2005
    FIAT AD 182M GRUNDIG NEC FIAT H2/02.1 24C16 smd TDA7450
    FIAT AD 183M GRUNDIG D17006AGFE47 or E31 GRN009 TDA2005
    FIAT AD 185H GRUNDIG   24C08 TDA2005
    FIAT AD 185H(B) GRUNDIG D17006AGFE44 24C08 TDA2005
    FIAT AD 185M GRUNDIG D17006AGFE44 24C08
    FIAT CONNECT (NAVIGATION + GSM) MAGNETI MARELLI   24C16 smd TDA7454
    FIAT D323 MP3 TE SB05  BP6348 BLAUPUNKT D703281Y-A20 (8928908839) 95320 smd TA8276H
    FIAT DIGITAL STEREO AD 185H GRUNDIG D17006AGFE43 24C08
    FIAT DUCATO CC MID  BP0373 BLAUPUNKT MC68HC11PA8 (8925905063)
    FIAT DUCATO CC BP4319 BLAUPUNKT D70F3079AYGC 95320 smd + 25P10 smd TA8276H
    FIAT DUCATO CD BP3318 BLAUPUNKT D70F3079AYGC 95320 smd + 25P10 smd
    FIAT DUCATO CD HIGH  BP0377 BLAUPUNKT MC68HC11PA8 (8925904889) 24C08 smd + M92256 smd TDA7375A
    FIAT GRANADA AS0480 AUTOSOUND D1719G570 CXK1012 TA8205AH
    FIAT F199 CD   GHT1400 GRUNDIG D70F3268YGC 24C32 smd
    FIAT IDEA CD  BP3363 BLAUPUNKT D70F3079AYGC 95320 smd TA8276H
    FIAT IDEA CD MP3  BP3365 BLAUPUNKT
    FIAT IRRADIO XR-2000   LC7232SANY 93C46
    FIAT IRRADIO XR-C3000   D17010GF532 93C46
    FIAT MULTIPLA BLAUPUNKT
    FIAT MULTIPLA CC  BP2371 BLAUPUNKT MC68HC11PA8 24C08 smd
    FIAT MULTIPLA CD  BP2372 BLAUPUNKT MC68HC11PA8 24C08 smd
    FIAT MULTIPLA TRAVELPILOT RNS4  BP2400 BLAUPUNKT FIS (8638340472) 25C160 smd + 24C01 smd TDA7454
    FIAT PALIO CC  BP1371 BLAUPUNKT MC68HC11PA8 (8925904887) 24C08 smd + M92256 smd TDA7375A x 2
    FIAT PALIO CC CLOCK  BP2378 BLAUPUNKT MC68HC11PA8 24C08 smd + M92256 smd TDA7375A x 2
    FIAT PALIO CD  BP1372 BLAUPUNKT
    FIAT PALIO CD CLOCK  BP2379 BLAUPUNKT MC68HC11PA8 24C08 smd + M92256 smd TDA7375A x 2
    FIAT PALIO CD  BP3322 BLAUPUNKT
    FIAT PANDA 169 CC  BP3383 BLAUPUNKT MC68HC11PA8 (8925905063) 24C08 smd + M92256 smd TDA7375A x 2
    FIAT PANDA 169 CD  BP3385 BLAUPUNKT   ST95320 smd + 25P10 smd
    FIAT PANDA 169 CD MP3  BP3387 BLAUPUNKT
    FIAT PUNTO 188 CONNECT  GSM phone BLAUPUNKT D703077 (8609502410) M95320 smd + 25P10 smd TDA7454
    FIAT PUNTO LOW  BP9372 BLAUPUNKT M990B9927C (8925904411) AT25160N smd + M92256 smd TDA7375
    FIAT PUNTO LOW RHD BP9373 BLAUPUNKT ST7282A5 (8609501470) 25C160 smd + M92256 smd TDA7375
    FIAT PUNTO MID BP1374 BLAUPUNKT ST7285 (8925904798) 25LC160 smd + M92256 smd TDA7375 x 2
    FIAT PUNTO MID BP9374 BLAUPUNKT M990B0009C 25LC160 smd
    FIAT PUNTO MID RHD BP9375 BLAUPUNKT M990B0009C 25LC160 smd
    FIAT PUNTO HIGH CD BP1376 BLAUPUNKT MC68HC11PA8 (8902904780) 24C08
    FIAT PUNTO CC  BP2374 BLAUPUNKT D70F3079AYGC ST95160 smd + 25P10 smd TA8276H
    FIAT PUNTO CD  BP2375 BLAUPUNKT D70F3079AYGC (8609503102) ST95320 smd + 25P10 smd TA8276H
    FIAT PUNTO CD  BP4336 BLAUPUNKT D703078 (8611200639) ST95320 smd + 25P10 smd TA8276H
    FIAT PUNTO CD MP3  BP2376 BLAUPUNKT D70F3079AYGC (8609503112) ST95320 smd + 25P10 smd TA8276H
    FIAT PUNTO NAV  BP1494 BLAUPUNKT
    FIAT RNS 3  BP1330 BLAUPUNKT FIS 95C160 smd
    FIAT RNS 3  BP1430 BLAUPUNKT FIS (8638340560A02) 95C160 smd
    FIAT SCUDINO CC MID BP0371 BLAUPUNKT MC68HC11PA8 (8925904781) 24C08
    FIAT SCUDINO CD HIGH BP0370 BLAUPUNKT MC68HC11PA8 (8925904780 or 904889) 24C08 TDA7375A x 2
    FIAT   VISTEON TMS470AVF688APZA 24L16 smd 70072AB
    FIAT STILO VISTEON
    FIAT STILO  CD VISTEON ST92F120V1Q7
    FIAT STILO OA VISTEON ST92F120V1Q7
    FIAT STILO OA VISTEON ST92F120V1Q7   TDA7562
    FIAT STILO OB VISTEON ST92F120V1Q7
    FIAT STILO OB VISTEON TMS470AVF688APZA CD-72ALDJW 24C16 smd 70072AB x 2




    FIAT Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.

    FIAT Car radio wiring diagrams. car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.

    FIAT auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation.  How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.



    Copyright © 2007 Tehnomagazin.com
    Terms & Conditions                                        Privacy Policy                                                Impressum
