GELHARD GXR-2XX

Gelhard GXR-2xx

A

3 -Speaker RF+

4 -Memori

4 -Speaker RF-

7 -+12V

5 -Speaker LF+

8 -Gnd

6 -Speaker LF-

B

7 -Speaker LR+

1 -Speaker RR+

8 -инамик LR-

2 -Speaker RR-

-



GELHARD GXR-860QM

Gelhard GXR-860QM

2 -Speaker R+

12 -Speaker L+

3 -Speaker R-

13 -Speaker L-

4 -GND

14 -+12 VOLT IGNITION WIRE

5 -+12 VOLT BATTERY WIRE

15 -Power Antenna Turn On

7 -Line out R

17 -Dash Light Dimmer Wire

8 -Line out L

18 -GND Line out

10 -ANT GND

20 -ANT

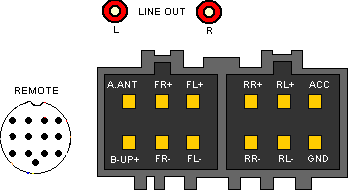

GELHARD GXR 260DT

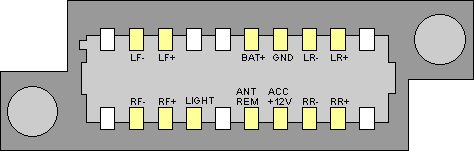

GELHARD GXR-944S







Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

GELHARD

DXR259 RD/WS

GELHARD











GELHARD

GXR221RP

GELHARD

CCR520V1.0

24C04A

TDA1558Q





GELHARD

GXR222RP GE222P

GELHARD

CCR520V1

24C04A

TDA1519AQ





GELHARD

GXR234DS

GELHARD

CCR520V1.5

8594E smd

 TA8238





GELHARD

GXR244DV

GELHARD

P83CE528EFB

8594E2Y

 TDA7375 x 2





GELHARD

GXR245AV

GELHARD



8594E2Y

 TDA7375 x 2





GELHARD

GXR246LD

GELHARD

P83C528EFB

8594

2xTDA7375





GELHARD

GXR247DV

GELHARD

CCR523V1-1

9594C smd

2xTDA7375





GELHARD

GXR252RP

GELHARD



24C04

TDA1558Q





GELHARD

GXR254DR

GELHARD



8594E







GELHARD

GXR256WT

GELHARD

CCR520V1-5

8594

TDA1554Q





GELHARD

GXR257

GELHARD



8594E







GELHARD

GXR283DV

GELHARD











GELHARD

GXR879

GELHARD



S2444







GELHARD

GXR880

SANYO

D1714G 643

S2444







GELHARD

KR256DT

GELHARD

CCR520V1

8594
