GOLDSTAR  TCC - 330

3-Speaker RF+



  7-Speaker RF-



11-GND Lin out

con

15-L-ch+CD input

con

4-Speaker RR+



  8-Speaker LF-



12-L-ch+Lin out

con

16-Speaker LR-



5-Speaker LF+



  9-+12 VOLT BATTERY WIRE



13-R-ch+CD input

con

17-Speaker RR-



6-Speaker LR+



10-R-ch+Lin out

con

14-GND  CD input

con

18-GND







GOLDSTAR  TCC - 573

1-Power Antenna Turn On



5-Speaker LR+



  9-Speaker LF-

 Ч

2-Speaker RF+



6-+12 VOLT BATTERY WIRE



10-Speaker RR-

 Ч

3-Speaker LF+



7-+12 VOLT IGNITION WIREmemori



11-Speaker LR-

 Ч

4-Speaker RR+



8-Speaker RF-

 Ч

12-GND

 Ч

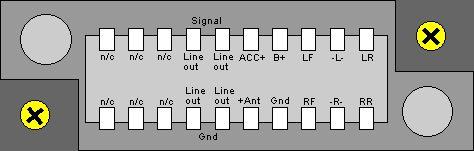

GOLDSTAR TCC-1800




LG TCC-8020








LG TCC- 573






LG TCC- 5610





LG TCC-100 LG TCC- 200
