GRUNDIG Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install













GRUNDIG WKC2830, WKC2820

Grundig WKC2830, WKC2820

1 -GND

2 -+12 VOLT IGNITION WIRE

3 -Dash Light Dimmer Wire

4 -Power Antenna Turn On

5 -+12 VOLT BATTERY WIRE



GRUNDIG WKC2841

Grundig WKC2841

1 -GND

7 -CTRL

2 -+12 VOLT IGNITION WIRE

8 -Speaker LF

3 -Dash Light Dimmer Wire

9 -Speaker RF

4 -CTRL

10- Speaker LR

5 -+12 VOLT BATTERY WIRE

11- Speaker RR

6 -GND

-



GRUNDIG

Grundig

A

B

C

1 -SCV*

1 -Speaker RR+

1 -TXD

2 -TEL MUTE

2 -Speaker RR-

2 -RXD

-

3 -Speaker RF+

3 -+A (CD)

4 -+12 VOLT BATTERY WIRE

4 -Speaker RF-

4 -+U (CD)

5 -Power Antenna Turn On

5 -Speaker LF+

5 -GND Line out

6 -Dash Light Dimmer Wire

6 -Speaker LF-

6 -GND

7 -+12 VOLT IGNITION WIRE

7 -Speaker LR+

7 -Line out RF

8 -GND

8 -Speaker LR-

8 -Line out RR

-

-

9 -Line out LF

-

SCV*-Speed Control Volume

10-Line out LR



GRUNDIG

Grundig

A

B

C

1 -SCV*

1-Speaker RR+

1-Line out LR

11-AUX IN

2 -TEL MUTE

2-Speaker RR-

2-Line out RR

12-AUX GND

3 -   ---

3-Speaker RF+

3-GND Line out

13-CD-BUS

4 -+12 VOLT BATTERY WIRE

4-Speaker RF-

4-Line out LF

15-CD-BUS GND

5 -Power Antenna Turn On

5-Speaker LF+

5-Line out RF

16-+A (CD)

6 -Dash Light Dimmer Wire

6-Speaker LF-

6-12V

17-+U (CD)

7 -+12 VOLT IGNITION WIRE

7-Speaker LR+

7-RXD

18-CD-NF GND

8 -GND

8-Speaker LR-

8-TXD

19-CD-NF LEFT

-

-

9-GND

20-CD-NF RIGHT

SCV*-Speed

-

-

13-20-CD Changer

Control Volume

-

-

Interface



Grundig car radio iso connector



WKC3880 RDS



WKC5300 RDS



WKC2830
WKC2841







Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

GRUNDIG

ADVANCE CC

GRUNDIG

ZC506517CFN  MC68HC11KA2

MCU

2xTDA7375A





GRUNDIG

ADVANCE CD

GRUNDIG

ZC506517CFN  MC68HC11KA2

MCU

2xTDA7375A





GRUNDIG

CHALLENGE 400

GRUNDIG

NEC WKC 3000 02

24L04 smd







GRUNDIG

CHALLENGE 500

GRUNDIG

NEC WKC 3000 02

24LC04 smd







GRUNDIG

CHALLENGE 500 A

GRUNDIG



24C08 smd







GRUNDIG

CHALLENGE 530 DAB

GRUNDIG











GRUNDIG

CHALLENGE 600 CD

GRUNDIG

D780308GF012

24C08

2xTDA7375A





GRUNDIG

EC 4000 RDS

GRUNDIG

D78044AGF1843B9  (EC4000)

24C16

TDA8561Q





GRUNDIG

EC 4200 RDS

GRUNDIG

D78044AGF1843B

24C16

TDA8561Q





GRUNDIG

EC 4290 CD

GRUNDIG

D78045AGF

24C16

TDA8561Q





GRUNDIG

EC 4490 CD

GRUNDIG

D78045FGF0223B

24C16

TDA8561Q





GRUNDIG

EC 4600 RDS

GRUNDIG

D78045-045 (EC4600-01)

24LC16

2xTDA7375A





GRUNDIG

EC 4700 CD

GRUNDIG

D78045-101

24LC16

2xTDA7375A





GRUNDIG

EC 4790 CD

GRUNDIG

D78045FGF XXX ( EC4790)

24LC16

TDA7454





GRUNDIG

EC 4890 CD

GRUNDIG

D78045FGF 102 (EC4790)

24LC16

TDA7454





GRUNDIG

EC 7400 RDS

GRUNDIG

MC68HC11P2 (EC 7X00 V2)

MCU







GRUNDIG

EC 7500 RDS

GRUNDIG

MC68HC11P2 (EC 7X00 V2)

MCU







GRUNDIG

R100 D tuner

GRUNDIG

D17003AGFE14

24C01

NEMA





GRUNDIG

R2001 only  tuner   2DIN

GRUNDIG

R/CAR200X-1

24C01 smd







GRUNDIG

SC303 (C) bez displeja

GRUNDIG

MC68HC11E9 v5.42

MCU

2xTDA7350A





GRUNDIG

SC303D (C)

GRUNDIG

MC68HC11E9 v5.20

MCU

2xTDA7350A





GRUNDIG

SC303D (C)

GRUNDIG

MC68HC11E9 v5.42

MCU

2xTDA7350A





GRUNDIG

SCC1501

GRUNDIG











GRUNDIG

SCC3400 RDS

GRUNDIG

D780308GF

24C08  smd

TDA7381





GRUNDIG

SCC3460 RDS

GRUNDIG

D780308GF (SCX34xxG2)

24C08  smd

TDA7381





GRUNDIG

SCC5460 RDS  ALLIXX

GRUNDIG

D703079YGC-XXX-8EU

24C16  smd

TA8276H





GRUNDIG

SCD1590 VD

GRUNDIG

D17003AGFE11

4C01C6 smd







GRUNDIG

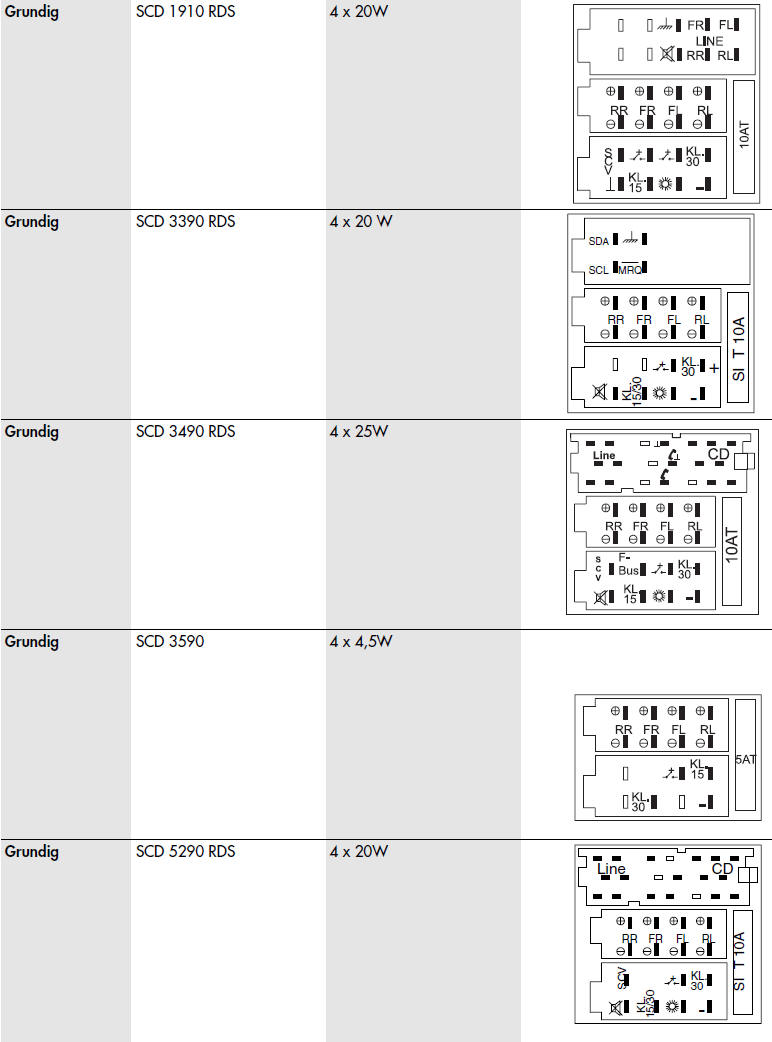

SCD1910 RDS

GRUNDIG

MC68HC11L6 ? (SCD1910)

MCU

2xTDA1553Q





GRUNDIG

SCD3390 RDS

GRUNDIG

D780308GF012

24C08

2xTDA7375A





GRUNDIG

SCD3460 RDS

GRUNDIG

D780308GF

24C08  smd







GRUNDIG

SCD3490 RDS

GRUNDIG

D78P0308GF

24C08  smd

TDA7381





GRUNDIG

SCD3590

GRUNDIG

D17003AGFE11

GR0919                ST4C01C6







GRUNDIG

SCD5190 RDS  ALLIXX

GRUNDIG

D703079YGC-XXX-8EU

24C16 smd







GRUNDIG

SCD5290 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5L_CD-01)

MCU

2xTDA8561Q





GRUNDIG

SCD5300 RDS INFOMAT

GRUNDIG











GRUNDIG

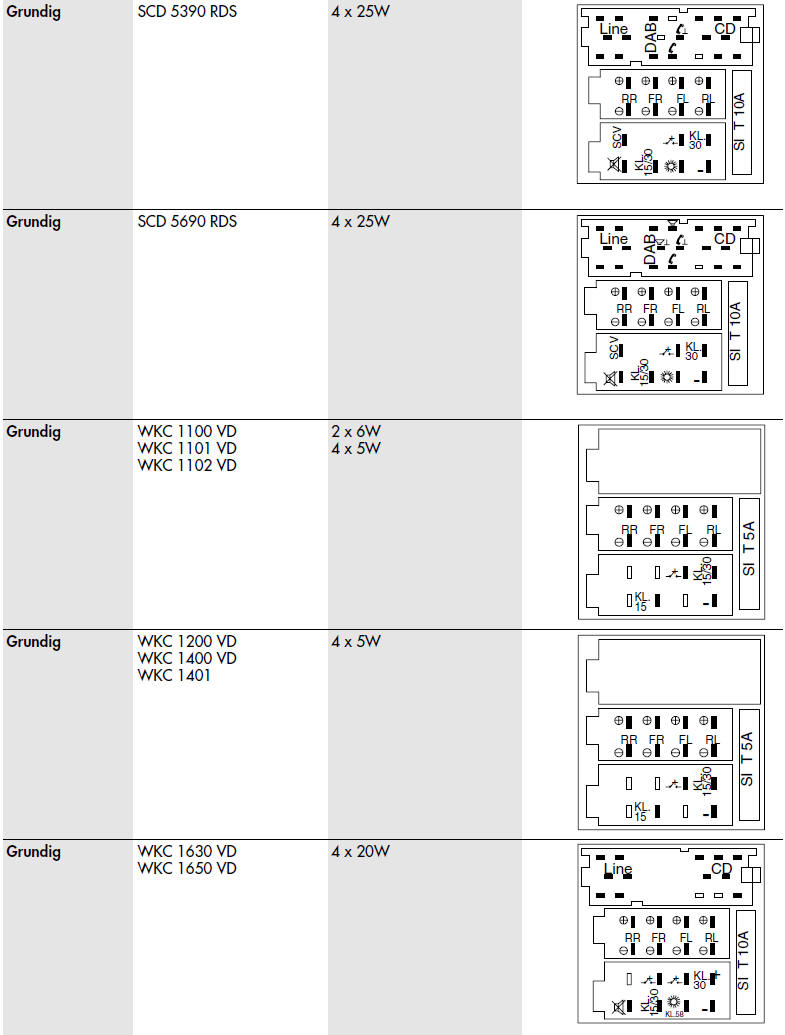

SCD5390 RDS INFOMAT

GRUNDIG

MC68HC11KA4   (WKC5X90-37 DAB)

MCU

2xTDA7375A





GRUNDIG

SCD5410 RDS  ALLIXX

GRUNDIG

D703079YGC-XXX-8EU

24C16 smd

TA8276H





GRUNDIG

SCD5490 RDS  ALLIXX

GRUNDIG

D703079YGC-XXX-8EU

24C16 smd

TA8276H





GRUNDIG

SCD5690 RDS INFOMAT

GRUNDIG

MC68HC11KA4 ? (WKC5X90-37 DAB)

MCU

2xTDA7375A





GRUNDIG

SMART only radio

GRUNDIG

MC68HC11KA4 (MCC SMART MC02)

MCU

TDA7375A





GRUNDIG

SMART CC

GRUNDIG

MC68HC11KA1 (MCC SMART MC02)

MCU







GRUNDIG

SMART CD

GRUNDIG

D78P0308GF

24C08







GRUNDIG

SV284

GRUNDIG

D1719G 641

GRN-002







GRUNDIG

WKC 1630 VD REVERSE

GRUNDIG

D17011GFE94

MCU







GRUNDIG

WKC 1650 VD REVERSE

GRUNDIG

D17011GFE93 (E94)

MCU

2xTDA1553Q





GRUNDIG

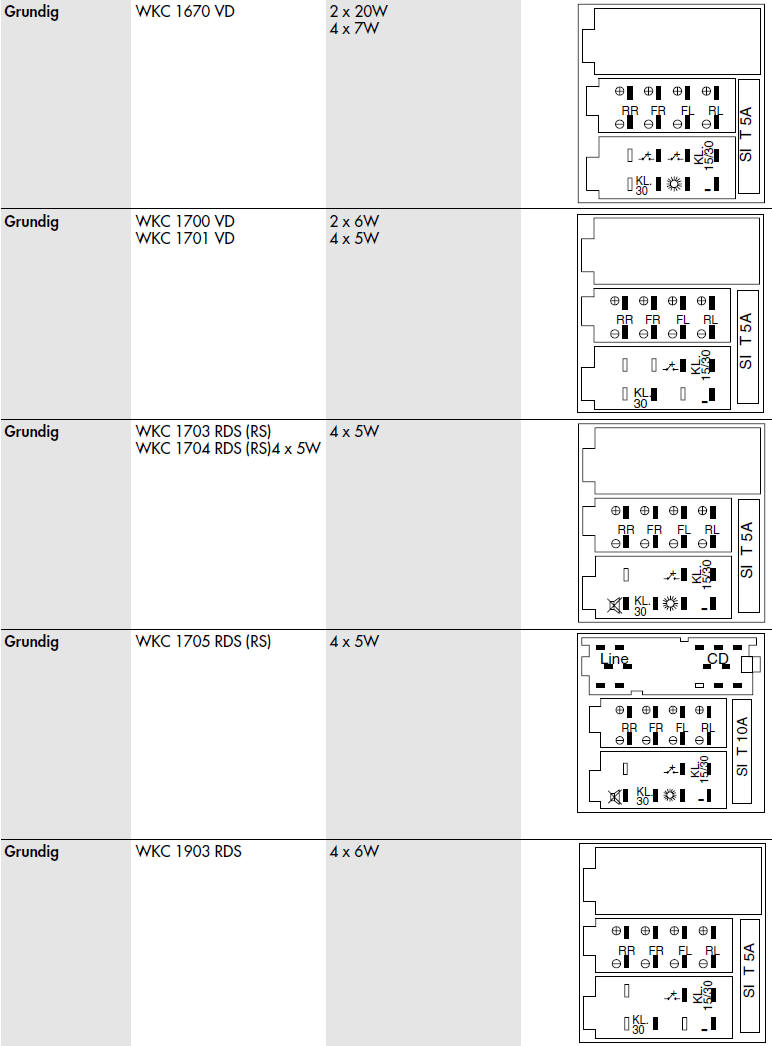

WKC 1670 VD

GRUNDIG



GRS-003           24C02







GRUNDIG

WKC 1703 RDS INFOMAT

GRUNDIG

D17006GFE19

GRX-008           24C04

TDA2005





GRUNDIG

WKC 1704 RDS INFOMAT

GRUNDIG

D17006GF E19

GRM-008          X2404







GRUNDIG

WKC 1705 RDS INFOMAT

GRUNDIG

D17006AGF E46

GRX-008           24C04







GRUNDIG

WKC 1903 RDS

GRUNDIG

D17005GF E16 , (E17) , (E19)

GRX-008 + GRM004        24C04

TDA2005





GRUNDIG

WKC 1904 RDS

GRUNDIG

D17005GF E20

GRX-008           24C04

TDA2005





GRUNDIG

WKC 1910 RDS

GRUNDIG

MC68HC11E9

MCU







GRUNDIG

WKC 2201 RDS

GRUNDIG

D780306GF014

24C04 smd

2xTDA7375A





GRUNDIG

WKC 2670 VD REVERSE panel

GRUNDIG

D17003AGF 587

GRS-003           24C02

TDA1553Q





GRUNDIG

WKC 2680 VD REVERSE

GRUNDIG

D17003AGF 589 or 609

GRS-003           24C02







GRUNDIG

WKC 2803 VD STEREO

GRUNDIG

D17003AGF 587

GRM-003







GRUNDIG

WKC 2803A VD STEREO

GRUNDIG

D17005GF E20

GRX-008           24C04

TDA2005





GRUNDIG

WKC 2804 VD REVERSE

GRUNDIG

D17003AGF 317

GRS-003           24C02

TDA2005





GRUNDIG

WKC 2804 VD REVERSE

GRUNDIG

D17003AGF 587

GRS-003           24C02

TDA2005





GRUNDIG

WKC 2805 VD REVERSE

GRUNDIG

D17003AGF 587

GRS-003           24C02







GRUNDIG

WKC 2841 VD

GRUNDIG

D1719G 574 (547)

GRN-001







GRUNDIG

WKC 2842 VD

GRUNDIG

D1719G 641

GRN-002           93C46

2xTDA1553Q





GRUNDIG

WKC 2845 VD

GRUNDIG

D1714G 634

GRN-001







GRUNDIG

WKC 3200 RDS

GRUNDIG

D78P0308GF (WKC3000 02)

24LC04 smd

2xTDA7375A





GRUNDIG

WKC 3201 RDS

GRUNDIG

D780306  (WKC3000 01)

24LC04 smd

2xTDA7375A





GRUNDIG

WKC 3300 RDS

GRUNDIG

D780306  (WKC3000 01)

24LC04 smd

2xTDA7375A





GRUNDIG

WKC 3301 RDS

GRUNDIG

D780306

24LC04 smd

2xTDA7375A





GRUNDIG

WKC 3650 VD

GRUNDIG

D17011GF

MCU

TDA1553Q





GRUNDIG

WKC 3670

GRUNDIG



24C02







GRUNDIG

WKC 3680 REVERSE

GRUNDIG

D17003AGF

GRS-003







GRUNDIG

WKC 3703 RDS INFOMAT

GRUNDIG

D17006

24C04







GRUNDIG

WKC 3705 RDS INFOMAT

GRUNDIG

D17006AGF E34

X24C08

TDA2005





GRUNDIG

WKC 3707 RDS INFOMAT

GRUNDIG

D17006AGF E34

X24C08







GRUNDIG

WKC 3803 VD

GRUNDIG

D17003

GRM-003







GRUNDIG

WKC 3804 REVERSE

GRUNDIG











GRUNDIG

WKC 3841

GRUNDIG

D1714G 547

GRN-002 or GRO-002







GRUNDIG

WKC 3842

GRUNDIG



9743 OKI  93C46







GRUNDIG

WKC 3851 RDS

GRUNDIG

MC68HC11E9

MCU







GRUNDIG

WKC 3860 VD

GRUNDIG

D7516HG 584 or 596

GRN-001







GRUNDIG

WKC 3870 RDS INFOMAT

GRUNDIG

MC68HC11E9 (WKC38XO V2.2)

MCU

2xTDA7350A





GRUNDIG

WKC 3880 RDS INFOMAT

GRUNDIG

MC68HC11E9 (WKC38XO V2.2)

MCU

2xTDA1553Q





GRUNDIG

WKC 3904 RDS REVERSE

GRUNDIG

D17005GF E17 , E19 or E20

GRX-008 , GRM005        24C04







GRUNDIG

WKC 3905 RDS REVERSE

GRUNDIG

D17005GF E19 or 20

GRX-006           24C04

2xTDA1553Q





GRUNDIG

WKC 3907

GRUNDIG



24C16







GRUNDIG

WKC 4000 RDS

GRUNDIG











GRUNDIG

WKC 4290

GRUNDIG











GRUNDIG

WKC 4600

GRUNDIG











GRUNDIG

WKC 4804 VD REVERSE

GRUNDIG

D17003AGF 587

GRM-003          24C02







GRUNDIG

WKC 4805 VD REVERSE

GRUNDIG

D17003AGF 587

GRS-003           24C02







GRUNDIG

WKC 4870 RDS

GRUNDIG











GRUNDIG

WKC 4870 RDS A

GRUNDIG

MC68HC11E9

MCU

4xTDA7241





GRUNDIG

WKC 4870 RDS C INFOMAT

GRUNDIG

WKC487X V4.1

MCU







GRUNDIG

WKC 4871 RDS INFOMAT

GRUNDIG

MC68HC11E9 (487X v4.1)

MCU

4xTDA7241





GRUNDIG

WKC 5000 RDS panel ( design F.A.PORSHE )

GRUNDIG

MC68HC11E9 (4870 RDS-3)

MCU







GRUNDIG

WKC 5000 RDS panel ( design F.A.PORSHE )

GRUNDIG

MC68HC11E9

MCU







GRUNDIG

WKC 5100 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5L MC-03)

MCU

TDA8561Q





GRUNDIG

WKC 5100 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5L MC-01)

MCU

TDA8561Q





GRUNDIG

WKC 5101 RDS INFOMAT

GRUNDIG

MC68HC11KA4

MCU

TDA8561Q





GRUNDIG

WKC 5200 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5L MC-03)

MCU

TDA8561Q





GRUNDIG

WKC 5201 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5L MC-03)

MCU

2xTDA8561Q





GRUNDIG

WKC 5290 RDS INFOMAT

GRUNDIG



MCU







GRUNDIG

WKC 5300 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5300-30 DAB)  NO SEC

MCU

2xTDA7375A





GRUNDIG

WKC 5300 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5300-11 DAB)

MCU

2xTDA7375A





GRUNDIG

WKC 5333 RDS INFOMAT

GRUNDIG

MC68HC11KA4

MCU







GRUNDIG

WKC 5400 RDS INFOMAT

GRUNDIG



MCU







GRUNDIG

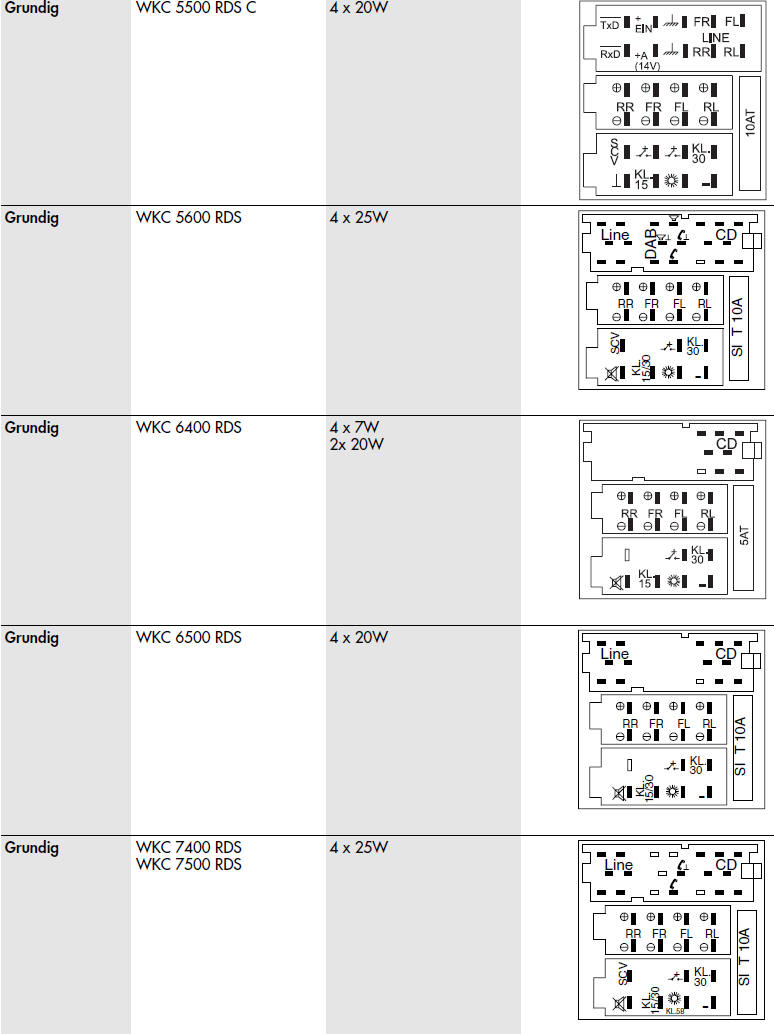

WKC 5500 RDS C  panel (design F.A.PORSHE)

GRUNDIG

MC68HC11E9 (WKC 487X V4.1)

MCU

4xTDA7241





GRUNDIG

WKC 5600 RDS INFOMAT

GRUNDIG

MC68HC11KA4 (WKC5600  32 DAB)

MCU

2xTDA7375A





GRUNDIG

WKC 6400 RDS INFOMAT

GRUNDIG

MC68HC11E20 (WKC6X00-01)

MCU







GRUNDIG

WKC 6440 RDS INFOMAT

GRUNDIG

MC68HC11E20

MCU







GRUNDIG

WKC 6500 RDS INFOMAT

GRUNDIG

MC68HC11E20 (WKC 6X00-01)

MCU

2xTDA1553Q





GRUNDIG

WKC 7000 RDS INFOMAT

GRUNDIG



MCU







GRUNDIG

WKC 7400 RDS INFOMAT

GRUNDIG

MC68HC11P2

MCU







GRUNDIG

WKC 7500 RDS INFOMAT

GRUNDIG

MC68HC11P2  (EC7X00)

MCU

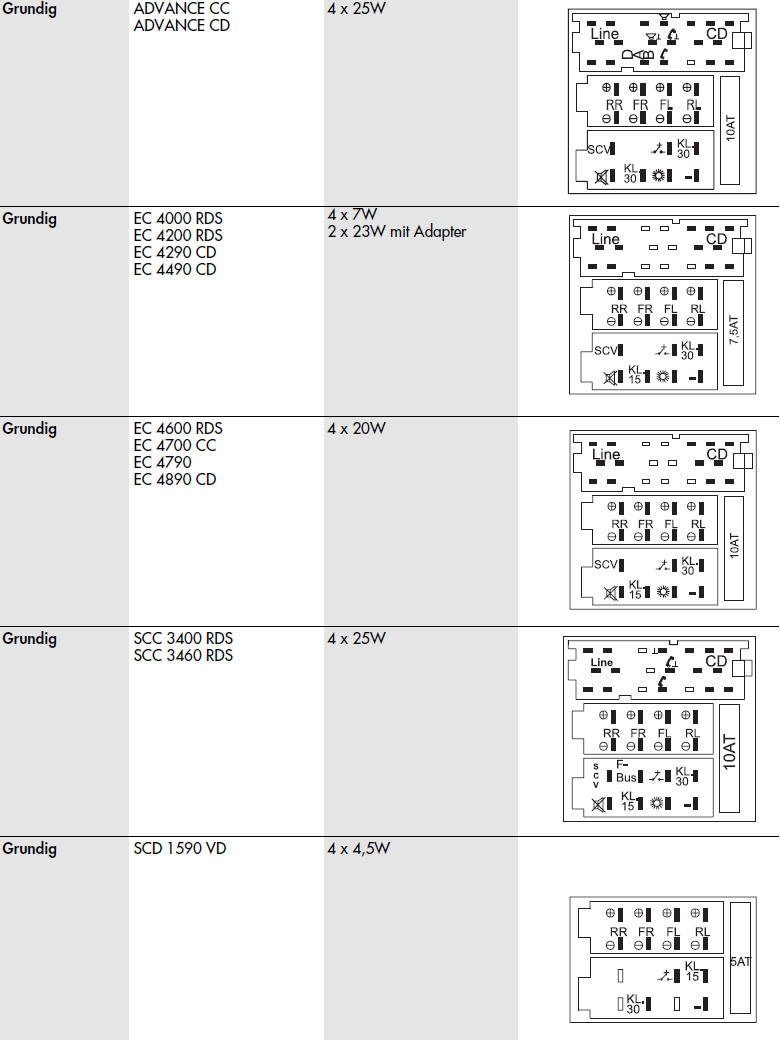

GRUNDIG ADVANCE CC GRUNDIG MC68HC11KA2   TDA7375A x 2
GRUNDIG ADVANCE CD GRUNDIG MC68HC11KA2  (ZC506517CFN) or (ADVANCE DAB) TDA7375A x 2
GRUNDIG CAR200 (D)  without display GRUNDIG D17003AGFE14 24C016 smd
GRUNDIG CAR2002 GRUNDIG NEC R/CAR 200X-1 24C01 smd TDA7365
GRUNDIG CHALLENGE CL300 GRUNDIG
GRUNDIG CHALLENGE 400 GRUNDIG NEC WKC 3000 02 24LC04 smd TDA7375A
GRUNDIG CHALLENGE CL400 GRUNDIG RS8802-127  A19 24C04 smd
GRUNDIG CHALLENGE 500 GRUNDIG NEC WKC 3000 02 24LC04 smd
GRUNDIG CHALLENGE CL500 MP3 GRUNDIG
GRUNDIG CHALLENGE 530 DAB GRUNDIG
GRUNDIG CHALLENGE 600 CD GRUNDIG D780308GF012 24C08 smd TDA7375A x 2
GRUNDIG CHALLENGE CL2200 DELPHI GRUNDIG KRS RS8802-137A22 24C04 smd
GRUNDIG CHALLENGE CL2300 DELPHI GRUNDIG
GRUNDIG CHALLENGE CL2300VW DELPHI GRUNDIG
GRUNDIG EC 4000 RDS GRUNDIG D78044AGF1843B9 24C16 TDA8561Q
GRUNDIG EC 4200 RDS GRUNDIG D78044AGF1843B 24C16 TDA8561Q
GRUNDIG EC 4290 CD GRUNDIG D78045AGF 24C16 TDA8561Q
GRUNDIG EC 4490 CD GRUNDIG D78045FGF0223B 24C16 TDA8561Q
GRUNDIG EC 4600 RDS GRUNDIG D78044-45 24LC16 TDA7375A x 2
GRUNDIG EC 4700 RDS GRUNDIG D78045FGF101 24LC16 TDA7375A x 2
GRUNDIG EC 4790 CD GRUNDIG D78045 (EC4790) 24LC16 TDA7454
GRUNDIG EC 4890 CD GRUNDIG D78045FGF102 (EC4790) 24LC16 TDA7454
GRUNDIG EC 7400 RDS GRUNDIG MC68HC11P2 (EC7X00 or EC7X00 V2)   TDA7375A x 2
GRUNDIG EC 7500 RDS GRUNDIG MC68HC11P2 (EC7X00 or EC7X00 V2)   TDA7375A x 2
GRUNDIG R100(D)  only tuner GRUNDIG D17003AGFE14 24C01 smd TDA2005
GRUNDIG R2001  only tuner  2DIN GRUNDIG R/CAR 200x-1 24C01 smd
GRUNDIG RCSS (Remote Control Sound System) GRUNDIG XC68HC711E20CFN   NO
GRUNDIG SC303D(C) GRUNDIG MC68HC11E9 v5.20   TDA7350A x 2
GRUNDIG SC303D(C) GRUNDIG MC68HC11E9 v5.42   TDA7350A x 2
GRUNDIG SC303(C)  without display GRUNDIG MC68HC11E9 v5.42 or v5.20   TDA7350A x 2
GRUNDIG SC303(C) IT  without display GRUNDIG MC68HC11E9 v5.42   TDA7350A x 2
GRUNDIG SCC3400 RDS  small panel GRUNDIG D780308GF (SCX 34XX 65) 24C08 smd TA8276H
GRUNDIG SCC3460 RDS  small panel GRUNDIG D780308GF (SCX 34XX 62) 24C08 smd TDA7381
GRUNDIG SCC5460 RDS ALLIXX GRUNDIG D703079 YGC-XXX-8EU 24C16 smd TA8276H
GRUNDIG SCD1590 VD GRUNDIG D17003AGFE11 24C01 smd TDA2005 x 2
GRUNDIG SCD1910 RDS GRUNDIG MC68HC11L6 or 711L6 (SCD1910)   TDA1553Q x 2
GRUNDIG SCD2493 MP3 GRUNDIG
GRUNDIG SCD3390 RDS GRUNDIG D780308GF012 (PF 3XXX 21) 24C08 smd TDA7375A x 2
GRUNDIG SCD3490 RDS GRUNDIG D780308GF 24C08 smd TDA7381
GRUNDIG SCD3590 GRUNDIG D17003AGFE11 ST4C01C6
GRUNDIG SCD5290 RDS INFOMAT GRUNDIG MC68HC11KA4 (WKC5L_CD-01)   TDA8561Q x 2
GRUNDIG SCD5390 RDS INFOMAT GRUNDIG MC68HC11KA4 (WKC5X90-37 DAB)   TDA7375A x 2
GRUNDIG SCD5410 DAB ALLIXX GRUNDIG D703079 YGC-XXX-8EU 24C16 smd TA8276H
GRUNDIG SCD5490 RDS ALLIXX GRUNDIG D703079 YGC-XXX-8EU 24C16 smd TA8276H
GRUNDIG SCD5690 RDS INFOMAT GRUNDIG MC68HC11KA4 (WKC5X90-37 DAB)   TDA7375A x 2
GRUNDIG SMART RADIO GRUNDIG MC68HC11KA4 (MCC SMART MC02)   TDA7375A
GRUNDIG SMART RADIO MRR GRUNDIG NEC MRR-1 24C08 TDA7381
GRUNDIG SMART CC GRUNDIG MC68HC11KA4 (MCC SMART MC02)   TDA7375A
GRUNDIG SMART CC GRUNDIG MC68HC711KA2   TDA7375A x 2
GRUNDIG SMART CD GRUNDIG MCC MRR 02 0605K8008 24L08 smd TDA7381
GRUNDIG SMART CD GRUNDIG D78P0308GF 24C08
GRUNDIG SMART CD MRR GRUNDIG SMARTCD MRR (9374.053.73) 24C08 smd
GRUNDIG WKC 1630 VD REVERSE GRUNDIG D17011GFE93 or E94   TDA1553Q x 2
GRUNDIG WKC 1650 VD REVERSE GRUNDIG D17011GFE93 or E94   TDA1553Q x 2
GRUNDIG WKC 1670 VD REVERSE GRUNDIG D17003AGF587 GRS-003 TDA1553Q
GRUNDIG WKC 1701 VD GRUNDIG D1713AG650 NO TDA2005
GRUNDIG WKC 1703 RDS INFOMAT GRUNDIG D17006AGFE19 GRX-008 TDA2005
GRUNDIG WKC 1704 RDS INFOMAT GRUNDIG D17006AGFE19 or E31 GRM-008 TDA2005
GRUNDIG WKC 1705 RDS INFOMAT GRUNDIG D17006AGFE46 or E34 GRX-008 TDA2005
GRUNDIG WKC 1903 RDS GRUNDIG D17005GFE16 or E17 or E19 GRX-008 TDA2005
GRUNDIG WKC 1904 RDS GRUNDIG D17005GFE20 or D17006AGFE31 GRX-008 TDA2005
GRUNDIG WKC 1910 RDS GRUNDIG MC68HC11E9
GRUNDIG WKC 2201 RDS GRUNDIG D780306GF014 24C04 smd TDA7375A x 2
GRUNDIG WKC 2670 VD REVERSE panel GRUNDIG D17003AGF587 GRS-003 TDA1553Q
GRUNDIG WKC 2680 VD REVERSE GRUNDIG D17003AGF589 or 609 GRS-003 TDA1553Q x 2
GRUNDIG WKC 2803 VD STEREO GRUNDIG D17003AGF587 GRM-003 TDA2005
GRUNDIG WKC 2803A VD STEREO GRUNDIG D17005GFE20 GRX-008 TDA2005
GRUNDIG WKC 2804 VD REVERSE GRUNDIG D17003AGF317 or 587 GRS-003 TDA2005
GRUNDIG WKC 2805 VD REVERSE GRUNDIG D17003AGF587 GRS-003 TDA2005
GRUNDIG WKC 2830 VD GRUNDIG D1713AG566   TDA2004
GRUNDIG WKC 2841 VD GRUNDIG D1719G574 or 547 or 641 GRN-001 TDA7350 x 2
GRUNDIG WKC 2842 VD GRUNDIG D1719G641 GRN-002 TDA1553Q x 2
GRUNDIG WKC 2845 VD GRUNDIG D1714G634 GRN-001
GRUNDIG WKC 3200 RDS GRUNDIG D78P0308GF (WKC3000 02) 24LC04 smd TDA7375A x 2
GRUNDIG GME 3201 RDS GRUNDIG D780306 24LC04 smd TDA7375A x 2
GRUNDIG WKC 3201 RDS GRUNDIG D780306 24LC04 smd TDA7375A x 2
GRUNDIG WKC 3300 RDS GRUNDIG D780306 (WKC3000 01) 24LC04 smd TDA7375A x 2
GRUNDIG WKC 3301 RDS GRUNDIG D780306 or D78P0308GF (WKC3000 01 or 02) 24LC04 smd TDA7375A x 2
GRUNDIG WKC 3650 VD GRUNDIG D17011GFE93   TDA1553Q x 2
GRUNDIG WKC 3670 REVERSE GRUNDIG D17000AGF587 GRS-003 TDA1553Q
GRUNDIG WKC 3680 REVERSE GRUNDIG D17003AGF GRS-003
GRUNDIG WKC 3680 VD GRUNDIG D17003AGF GRN-003
GRUNDIG WKC 3703 RDS INFOMAT  24v GRUNDIG D17006AGFE31 GRM007
GRUNDIG WKC 3705 RDS INFOMAT GRUNDIG D17006AGFE34 X24C08 TDA2005
GRUNDIG WKC 3707 RDS INFOMAT GRUNDIG D17006AGFE34 X24C08
GRUNDIG WKC 3803 VD  24v GRUNDIG D17003AGF587 GRM-003 TDA2005
GRUNDIG WKC 3804 REVERSE GRUNDIG D17003AGF587 GRX-003 TDA2005
GRUNDIG WKC 3841 GRUNDIG D1714G547 GRN-002 or GRO-002
GRUNDIG WKC 3842 GRUNDIG   OKI9743
GRUNDIG WKC 3851 RDS GRUNDIG MC68HC11E9 (ZC400269CFN   GR RDS-436) TDA7350A x 2
GRUNDIG WKC 3860 VD GRUNDIG D7516HG584 or 596 GRN-001 TDA2003 x 4
GRUNDIG WKC 3867 VD GRUNDIG
GRUNDIG WKC 3870 RDS INFOMAT GRUNDIG MC68HC11E9 (WKC38X0 V2.2)   TDA7350A x 2
GRUNDIG WKC 3880 RDS INFOMAT GRUNDIG MC68HC11E9 (WKC38X0 V2.2)   TDA1553Q x 2
GRUNDIG WKC 3904 RDS REVERSE GRUNDIG D17005GFE17 or E19 or E20 GRX-008 or GRM-005
GRUNDIG WKC 3904 RDS REVERSE GRUNDIG D17005GFE17 or E19 or E20 GRX-008 or GRM-005 TDA2005
GRUNDIG WKC 3905 RDS REVERSE GRUNDIG D17005GFE19 or E17 or E20 or E29 GRX-006 TDA1553Q x 2
GRUNDIG WKC 3907 GRUNDIG   24C16
GRUNDIG WKC 4000 RDS GRUNDIG
GRUNDIG WKC 4290 GRUNDIG
GRUNDIG WKC 4600 GRUNDIG
GRUNDIG WKC 4804 VD REVERSE GRUNDIG D17003AGF587 GRM-003 or 24c02 TDA2005
GRUNDIG WKC 4804 VD REVERSE GRUNDIG D17003AGF587 GRM-003 or 24c02 TDA2005
GRUNDIG WKC 4805 VD REVERSE GRUNDIG D17003AGF587 GRS-003 or 25C02 TDA2005
GRUNDIG WKC 4870 RDS GRUNDIG MC68HC11A8   TDA7241 x 4
GRUNDIG WKC 4870 RDS A GRUNDIG MC68HC11E9   TDA7241 x 4
GRUNDIG WKC 4870 RDS A GRUNDIG MC68HC11E9 (SC400137FN)   TDA7241 x 4
GRUNDIG WKC 4871 RDS INFOMAT GRUNDIG MC68HC11E9 (WKC487X V4.1)   TDA7241 x 4
GRUNDIG WKC 5000 RDS ( design F.A.PORSCHE ) GRUNDIG MC68HC11E9 (4870 RDS-3)   TDA7241 x 4
GRUNDIG WKC 5000 RDS ( design F.A.PORSCHE ) GRUNDIG MC68HC11E1 (GRRDS-435)   TDA7241 x 4
GRUNDIG WKC 5100 RDS INFOMAT GRUNDIG MC68HC11KA4 (WKC5L MC-01 or 03)   TDA8561Q
GRUNDIG WKC 5101 RDS INFOMAT GRUNDIG MC68HC11KA4   TDA8561Q
GRUNDIG WKC 5200 RDS INFOMAT GRUNDIG MC68HC11KA4 (WKC5L MC-03)   TDA8561Q
GRUNDIG WKC 5201 RDS INFOMAT GRUNDIG MC68HC11KA4   TDA8561Q x 2
GRUNDIG WKC 5290 RDS INFOMAT GRUNDIG
GRUNDIG WKC 5300 RDS INFOMAT GRUNDIG MC68HC11KA4 (WKC5300-30 DAB)   TDA7375A x 2
GRUNDIG WKC 5300 RDS INFOMAT GRUNDIG MC68HC11KA4 (11 DAB)   TDA7375A x 2
GRUNDIG WKC 5333 RDS INFOMAT GRUNDIG MC68HC11KA4
GRUNDIG WKC 5400 RDS INFOMAT GRUNDIG
GRUNDIG WKC 5500 RDS (design F.A.PORSCHE) GRUNDIG MC68HC11E9   TDA7241 x 4
GRUNDIG WKC 5500 RDS (design F.A.PORSCHE) GRUNDIG MC68HC11E9 (WKC 487X V4.1)   TDA7241 x 4
GRUNDIG WKC 5600 RDS INFOMAT GRUNDIG MC68HC11KA4 (32 DAB)   TDA7375A x 2
GRUNDIG WKC 6400 RDS INFOMAT GRUNDIG MC68HC11E20 (WKC 6X00-01)
GRUNDIG WKC 6440 RDS INFOMAT GRUNDIG MC68HC11E20
GRUNDIG WKC 6500 RDS INFOMAT GRUNDIG MC68HC11E20 (WKC 6X00-01)   TDA1553Q x 2
GRUNDIG WKC 7000 RDS INFOMAT GRUNDIG
GRUNDIG WKC 7400 RDS INFOMAT GRUNDIG MC68HC11P2
GRUNDIG WKC 7500 RDS INFOMAT GRUNDIG MC68HC11P2



GRUNDIG Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.

GRUNDIG Car radio wiring diagrams. Car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.

GRUNDIG auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation.  How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.



Copyright © 2007 Tehnomagazin.com
Terms & Conditions                                        Privacy Policy                                                Impressum
