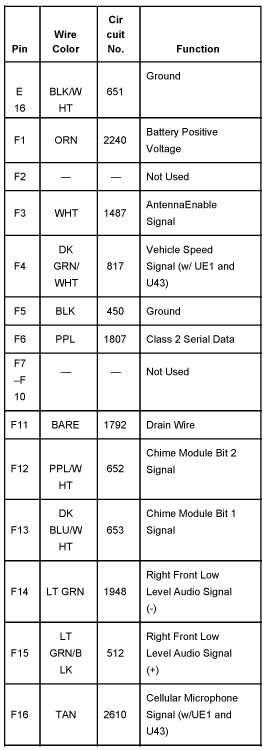

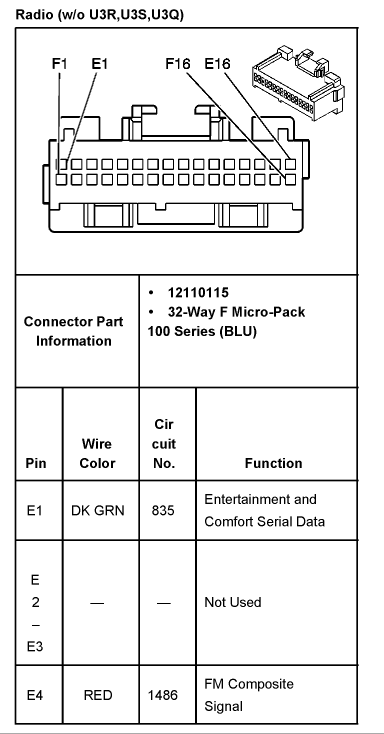

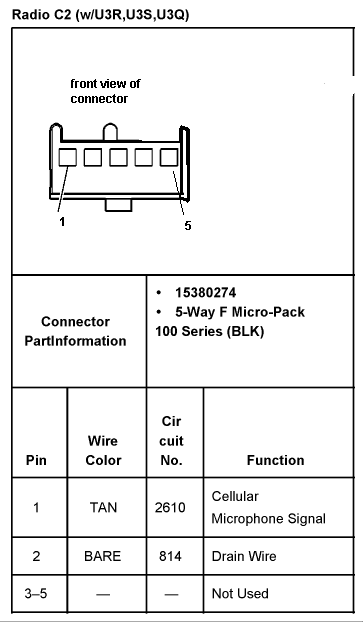

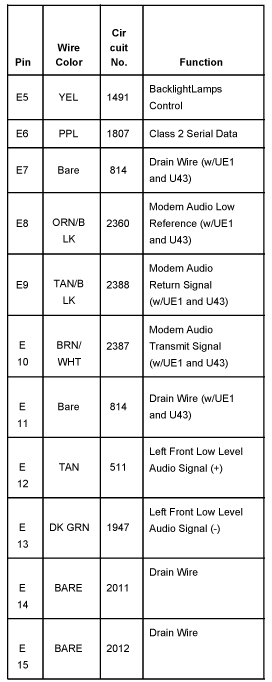

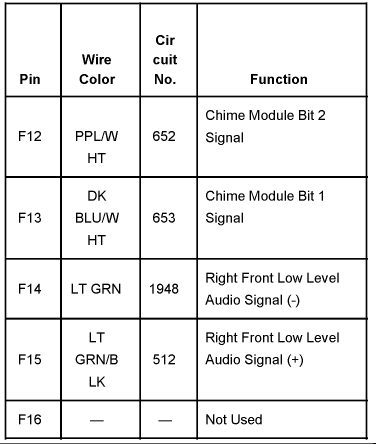

HUMMER H2






HUMMER MONSOON DELCO N60 FLASH 09370082 9355090 16219796
HUMMER GMT 345TNF DELCO D70F3269YGJ 09400465 smd 9398047 x 2
HUMMER   DELCO D70F3049YGC 24C08 smd
