1999 – 2004 Jeep Grand Cherokee







JEEP GRANG CHEROKEE 1999 - 2004

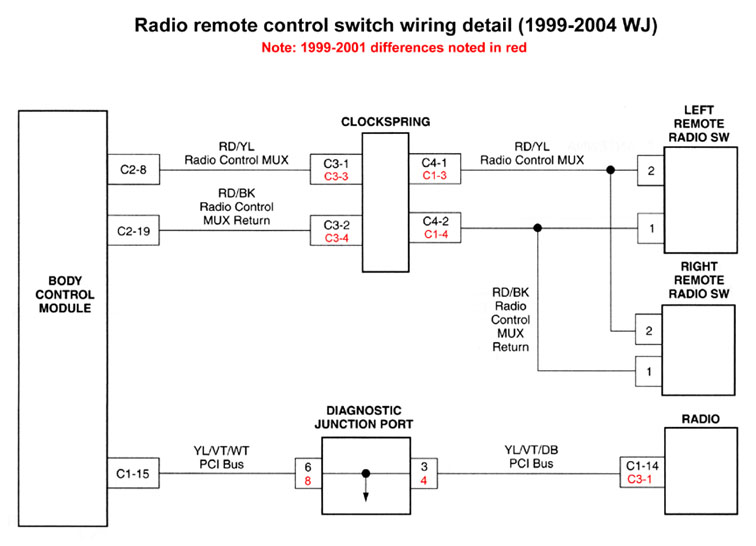

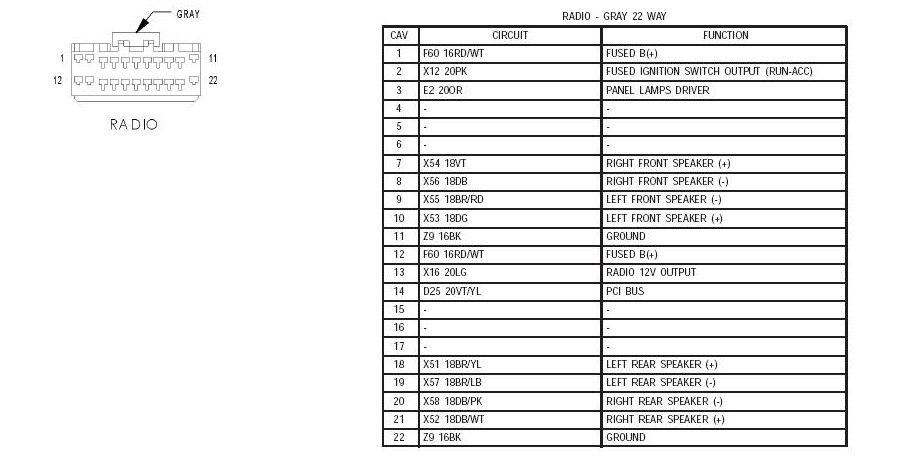

Connector
radio.

22 pin cable



10 pin cable.

Connector amplifier "JEEP GRANG CHEROKEE 1999 - 2004
Plug
the amplifier.



Connector amplifier "JEEP GRANG CHEROKEE 1999 - 2004
Plug the amplifier.

12 pin cable to connect the amplifier, a view from the contacts

18 pin cable to connect the amplifier, a view from the contacts







Chrysler  2569488- Jeep Grand Cherokee

Cpaysler 2569488

1-BAT +

8-Speaker RR-

2-ACC +

9-Speaker LR-

3-iLL

10-Speaker RF+

4-PARK

11-Speaker LF+

5-Speaker RF-

12-Speaker RR+

6-Speaker LF-

13-Speaker LR+

7-MUTE

14-Питание ANT

Общий провод находится  на корпусе между разъёмами







Chrysler - Jeep

Voyager, Saratoga, Le Baron, Jeep Grand Cherokee, Neon, Stratus, Vision, Grand Voyager

1-+12 VOLT IGNITION WIRE

12-Speaker RF-

3-+12 VOLT BATTERY WIRE

13-Speaker LF+

4-Dash Light Dimmer Wire

14-Speaker LF-

5-Power Antenna Turn On

15-Speaker LR+

9-Speaker RR+

16-Speaker LR-

10-Speaker RR-

GND-обод разьема

11-Speaker RF+

-





JEEP 04TJ Wrangler







JEEP 05TJ





JEEP 05TJ car stereo wiring diagram harness pinout connector subwoofer











Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

JEEP

PU-9549

CLARION
