LANCIA Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install

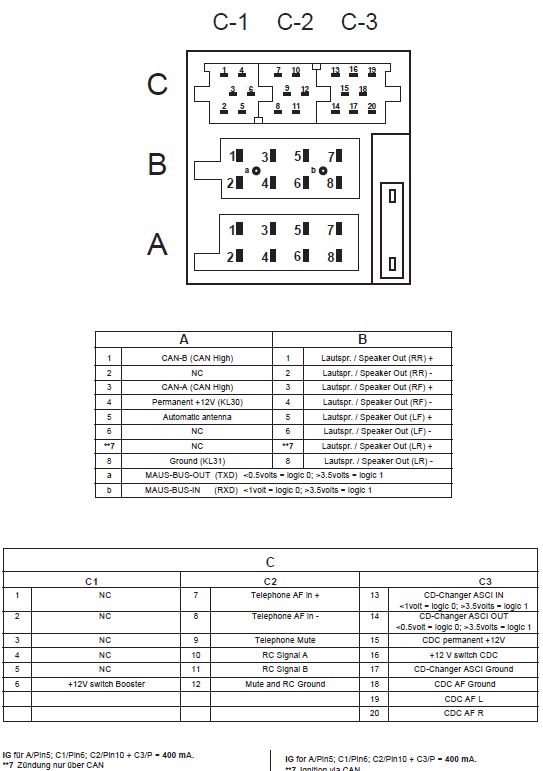

Lancia Blaupunkt MP3 CC CD stereo wiring connector









Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

LANCIA

ADM838 PU-9851

CLARION

D75518GF 202







383

LANCIA

PU-9852

CLARION



93C46







LANCIA

ADM840 PU-9984

CLARION



93C46







LANCIA

MODUL 839 NAV

GRUNDIG



24C16







LANCIA

NAVIGATION

BECKER +SIEMENS



BECKER 24C04 SIEMENS 29F400 + 29F400





KAPPA

LANCIA

NAVIGATION BP1404

BLAUPUNKT

FIS+ZC423271CFN (8925901955)+2XTI







KAPPA

LANCIA

TRAVEL PILOT RNS2

BLAUPUNKT









Y

LANCIA

TRAVEL PILOT RNS3

BLAUPUNKT











LANCIA

TRENTO NL















LANCIA 22 DC710/65L PHILIPS P83C528FFB DC710 24C08 TDA1553Q x 2
LANCIA 22 RC465/65 PHILIPS P83CE560EFB 24E16 TDA7375 x 2
LANCIA 843 CD  BP3388 BLAUPUNKT 70F3079AYGC 95320 smd + 25P10 smd TA8276H
LANCIA 843 MP3  BP3386 BLAUPUNKT
LANCIA ADM838 PU-9851A CLARION D17006GF625 + D75518GF202 93C46 smd NO
LANCIA ADM838 PU-9852 CLARION   93C46 smd
LANCIA ADM840 PU-9984 CLARION D17006AGF651 93C46 smd
LANCIA ADT838 824858750  PU-9852A CLARION D17006AGF666 + D75518QF192 93C46 smd TDA8560Q x 2
LANCIA MODUL 839 NAV  FA1157 GRUNDIG   24C16
LANCIA NAVIGATION BECKER + SIEMENS SAB80C535-16-N 24LC04 smd
LANCIA NAVIGATION  BP1404 BLAUPUNKT FIS (8638348807A02)
LANCIA TRENTO NL
LANCIA YPSILON 843 CD  BP3388 BLAUPUNKT
LANCIA YPSILON 843 CD MP3  BP3386 BLAUPUNKT
LANCIA Y RNS3  BP1430 BLAUPUNKT FIS



LANCIA Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.

LANCIA Car radio wiring diagrams. Car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.

LANCIA auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation.  How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.
