MERCEDES Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install












MERCEDES (BECKER AVUS, AVUS2000, GRAND PRIX)

Mercedes

A.A.-Power Antenna Turn On

1-+12 VOLT BATTERY WIRE

2-Dash Light Dimmer Wire

3-+12 VOLT IGNITION WIRE

4-GND





MERCEDES

Mercedes

A

B

4-+12 VOLT BATTERY WIRE

1-Speaker RR+

5-Power Antenna Turn On

2-Speaker RR-

6-Dash Light Dimmer Wire

3-Speaker RF+

7-+12 VOLT IGNITION WIRE

4-Speaker RF-

8-GND

5-Speaker LF+

-

6-Speaker LF-

-

7-Speaker LR+

-

8-Speaker LR-

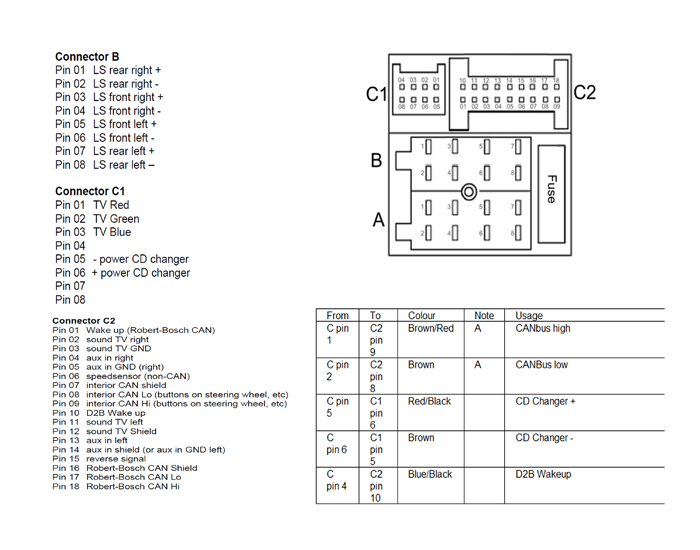

MERCEDES BENZ COMAND 2








MERCEDES BENZ Truckline CC40 no YU3F-18C838-BA









Mercedes Benz Audio 10 by Becker (BE3100) p/n A 210 820 09 86
Mercedes Benz Audio 10 by Becker (BE3200) p/n A 208 820 03 86
Mercedes Benz Audio 30 by Becker (BE3307)
Mercedes Benz Audio 30 APS (BE4705)
Mercedes Benz CD (MF2297) by ALPINE (Japan)
Mercedes Benz Truckline CC25 (BE6046)







Mercedes Benz Exquisit by Becker (BE1490)
Mercedes Benz Special by Becker (BE2210, BE1650)







Mercedes Benz MF2530 (p/n A 203 827 38 42)















Mercedes Grundig auto radio Sound 1000, Sound 3000, Sound 4000 Sound 5000 Sound 7000 Sound 8000









MERCEDES BENZ COMAND

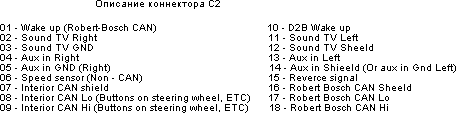

Mercedes Benz Comand 2,5DX







Mercedes Benz Command









Mercedes Benz Command Harman Becker









Mercedes Benz W220









Mercedes Benz W245 Comand









Mercedes Benz W246 Audio 20







Mercedes W204 Comand

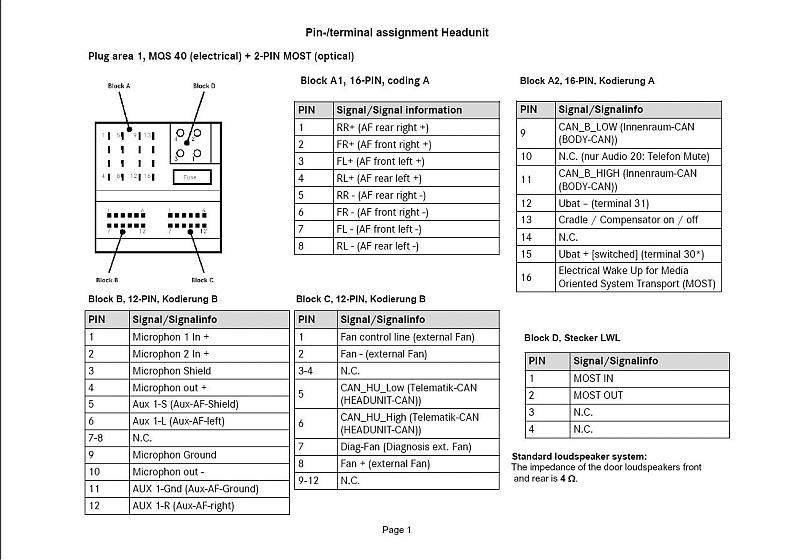

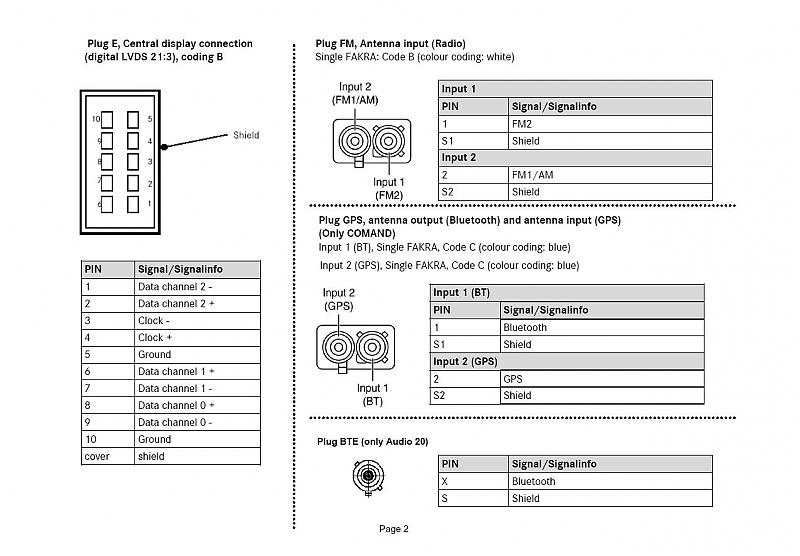

Mercedes W204 Comand stereo wiring 2
