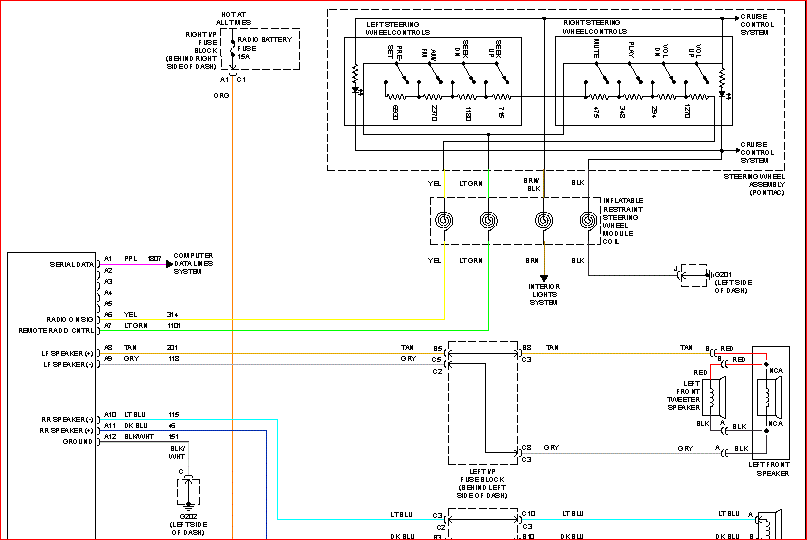

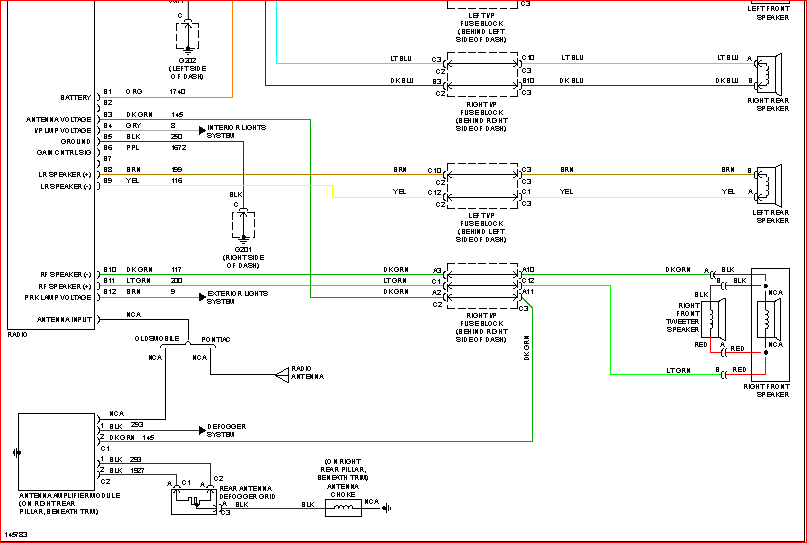

Oldsmobile Alero 2001 stereo wiring









Delco CDR-500

( A 4 - +12 V Direct) ( A5 Antenna Output +) ( A6 Ilum.) ( A7 +12 V Accessories) ( A8 - GND) ( B1 RR +) ( B2 RR-) ( B3 RF +) ( B4 RF-) ( B5 LF +) ( B6 LF-)     ( B7 LR +)   ( B8 LR-)





Delphi Famar  CDR-2005

Konzern Sam - Sam 2000 ( A1 Gala) ( A2 Mute) ( A3 Diagnosis) ( A4 +12. Acc.) ( A5 + 12.Permanente) ( A6 Ilum.)A1 Gala) ( A2 Mute) ( A3 Diagnosis) ( A4 +12. Acc.) ( A5 +12. Standing) ( A6 Ilum.) ( A7 v.Permanente +12) ( A8 GND) ( C1 LR + Line Out) ( C2 RR + Line Out) ( C3 Audio GND) ( C4 LF + Line Out.) ( C5 RF + Line Out.) ( C6 Amp.Control.) ( C7 Telephone input.) ( C8 Display remote clock.) C9 Remote Data Display) ( C10 Remote Display enable) ( C11 remote SWC) ( C12 Tel.In) ( C13 to C20 dating CDX)



DELCO MODEL: 14179985





DELCO MODEL: 16149451





DELCO MODEL: 16194975





DELCO-LOC II
MODEL: 16220765 Made in USA






Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

OLDSMOBILE

9356053

DELCO

TMS370C756











OLDSMOBILE 09376173 DELCO TMS370C756 (09373236 R158D082FN)
OLDSMOBILE 16178113 DELCO TMS370C756
OLDSMOBILE 9356053 DELCO TMS370C756
