Pontiac Bonneville 1997 stereo wiring connector





Pontiac Bonneville 1997 stereo wiring connector 2



Pontiac Bonneville 1997 stereo wiring connector 3





Pontiac Bonneville 2000-2005 stereo removal installation





Pontiac grand AM 2001-2005 stereo removal installation





Pontiac Grand AM 2004 stereo Wiring Diagram





Pontiac Grand AM 2005 stereo wiring connector

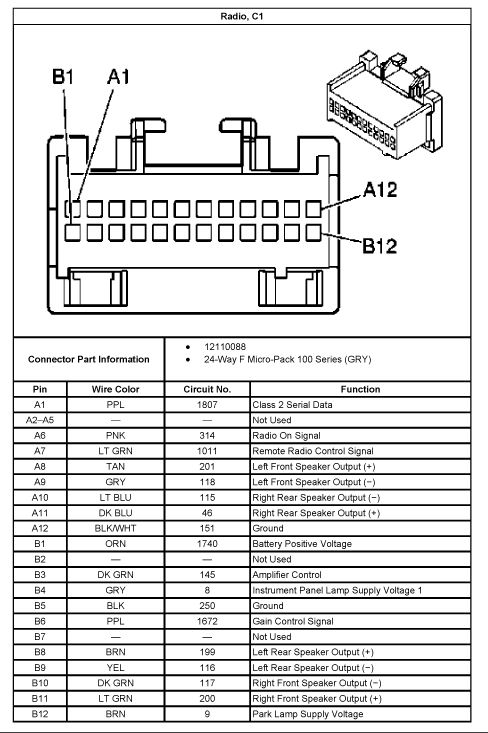

Pontiac Grand AM 2005 stereo wiring connector c1

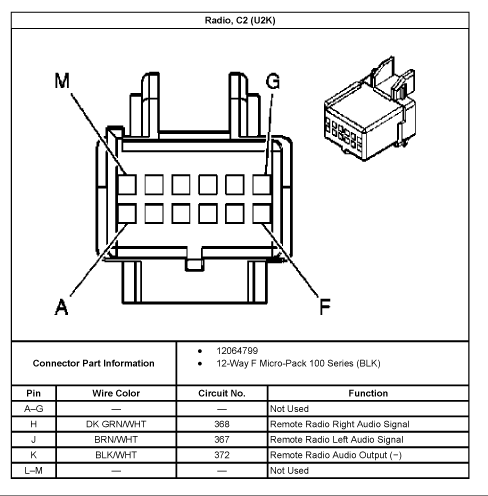

Pontiac Grand AM 2005 radio wiring connector C2

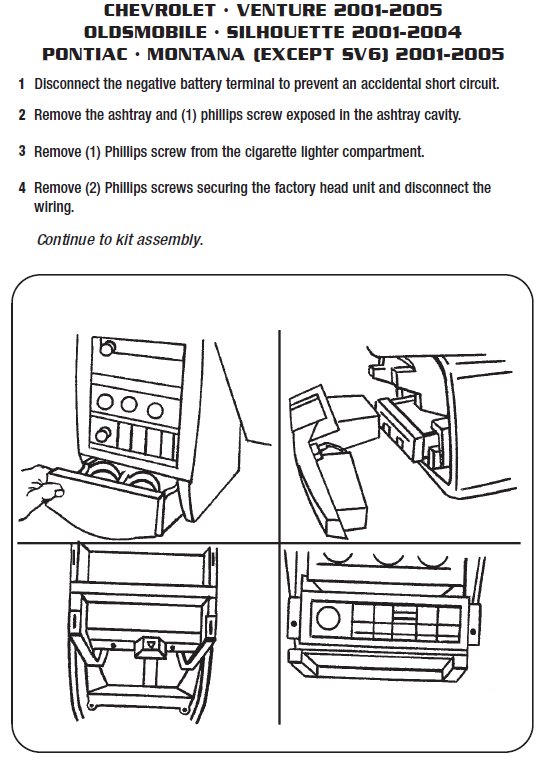

Pontiac Montana stereo removal installation





Pontiac Vibe stereo wiring connector










2000 Pontiac Sunfire Stereo Wiring

Permanant 12V+ Orange
Accessories 12V+ Yellow
Ground - Black
Illumination Gray
Dimmer Brown;Antenna Trigger;Pink
Antenna Location Right Front
Front Speakers 4 x 6 Doors
Front Left + Tan
Front Left - Gray
Front Right + Light Green
Front Right - Dark Green
Rear Speakers 6 x 9 Rear Deck
Rear Left + Brown
Rear Left - Yellow
Rear Right + Dark Blue
Rear Right - Light Blue








Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

PONTIAC

9380112

DELCO

TI   R1B3D052FN  (16238027)









PONTIAC

9390772

DELCO





NEMA







PONTIAC 09370202  MONSOON DELCO TMS370C756 (09355397 R177D027FN)   TDA7454
PONTIAC 9380112 DELCO TMS370C756 (TIR1B3D052FN)
PONTIAC 9390772 DELCO R177D019FN
