PORSCHE CR-31 Becker BE2365





Porsche 996 PCM2 car stereo wiring diagram connector pinout

Porsche 911 (996 Mk2) 2003 - 2005 PCM 2 CD

Porsche 911 (997) 2005 - 2009 PCM 2 CD

Porsche 911 (997) 2005 - 2009 PCM 2.1 DVD

Porsche Boxster/Cayman 2003 - 2009 PCM2 CD

Porsche Boxster/Cayman 2004 - 2009 PCM 2.1 DVD

Porsche Cayenne 2003 - 2009 PCM2 CD

Porsche Cayenne 2004 - 2009 PCM 2.1 DVD



PCM 2

Plug A
1 - Speed signal
2 - Free
3 - Free
4 - Terminal 30
5 - Terminal 30 for windscreen antenna
6 - Free
7 - Free
8 - Terminal 31

Plug B
1 - Loudspeaker, rear right +
2 - Loudspeaker, rear right -
3 - Loudspeaker, front right +
4 - Loudspeaker, front right -
5 - Loudspeaker, front left +
6 - Loudspeaker, front left -
7 - Loudspeaker, rear left +
8 - Loudspeaker, rear left-
Note: Plug B is assigned only if no amplifier is installed.

Plug C
1 - Lineout, rear left
2 - Line out, rear right
3 - AF ground
4 - Line out, front left
5 - Line out, front right
6 - Terminal 30 for amplifier
7 - Control lead for CD changer
8 - Terminal 30 for CD changer
9 - Free
10 - Data lead
11 - Clock lead
12 - Reset lead
13 - Free
14 - Free
15 - Free
16 - Free
17 - Free
18 - CD AF ground
19 - CD AF, left
20 - CD AF, right
Note: Plug C consists of 3 parts.
Pins 1 to 6: yellow housing.
Pins 7 to 2: green housing.
Pins 13 to 20 : blue housing.

Pins 1 to 6 are the loudspeaker outputs to the amplifier. They are assigned only if an amplifier is installed.
Pins 7 to 12 are the control leads for the CD changer.
Pins 18 to 20 are the loudspeaker outputs of the CD changer.
Pins 7 to 20 are assigned only if a CD changer is installed.

D - Antenna lead
E - Fuse

Plug I
1 - Video signal, red
2 - Video signal, green
3 - Free
4 - Free
5 - Free
6 - Terminal 31
7 - Free
8 - Free
9 - Free
10 - Terminal 30 for navigation
11 - Terminal 58 d
12 - Free
13 - Terminal 30
14 - Video signal, blue
15 - Video signal synchronization
16 - Video signal ground
17 - Free
18 - Free
19 - Terminal 31
20 - To combination plug III pin 6
21 - From combination plug III pin 11
22 - Free
23 - Fuel consumption signal
24 - Speed signal
25 - Free
26 - Terminal 30

Plug II
1 - Diagnosis lead
2 - Terminal 15
3 - Terminal 86 s
4 - Data lead to navigation unit
5 - Free
6 - DSP (amplifier) ground
7 - Handsfree microphone ground
8 - Handset microphone
9 - Handset speaker
10 - Terminal 30, handset
11 - Free
12 - Voice output ground
13 - Voice output
14 - DSP (amplifier)
15 - Data lead from the heater / A/C unit
16 - Free
17 - Data lead from the navigation unit
18 - Free
19 - Free
20 - Handsfree microphone
21 - Handset ground
22 - Handset on-hook contact
23 - Free
24 - Free
25 - Free

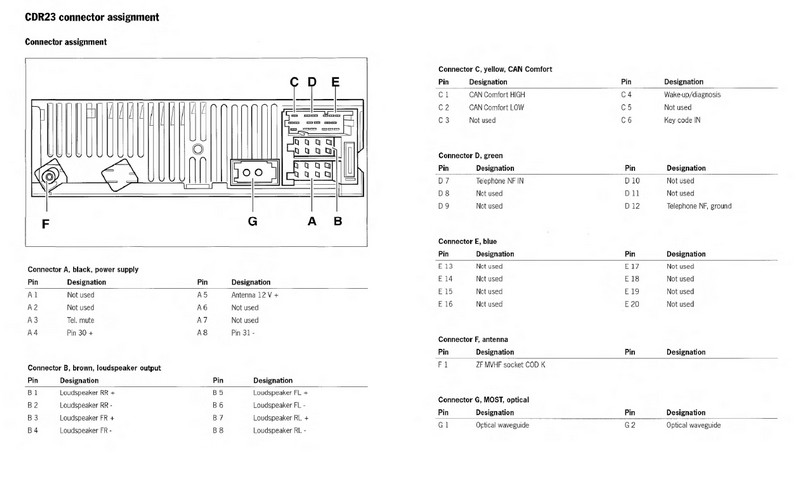

Porsche CDR23 car stereo wiring connector harness pinout

Porsche 911 (996 Mk2) 2003 - 2005 CDR-23

Porsche Boxster Porsche Cayman 2003 - 2009 CDR-23

Porsche Cayenne 2003 - 2009 CDR-23





PORSCHE CR-31





Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

PORSCHE

CD10

ALPINE

51T3562Y01 + 51T25597Y02  (D75P308GF)

24C04 smd







PORSCHE

CD2

ALPINE

51T15184W01









PORSCHE

CD31













PORSCHE

CDR21

BECKER











PORSCHE

CDR21

BECKER











PORSCHE

CDR210

BECKER











PORSCHE

CDR210

BECKER











PORSCHE

CDR22

BECKER

D78F4216GF

24C02







PORSCHE

CDR220

BECKER











PORSCHE

CDR220

BECKER











PORSCHE

CDR23

BECKER











PORSCHE

CDR23

BECKER











PORSCHE

CDR32

BECKER











PORSCHE

CR11

BECKER



24C02







PORSCHE

CR31

BECKER











PORSCHE

MDR32

BECKER

SAB80C537N

24C02







PORSCHE

NAVIGATION

SIEMENS











PORSCHE



BECKER



2402







PORSCHE



BECKER



24C04 smd







PORSCHE



BECKER













PORSCHE PCM NAVIGATION BECKER + SIEMENS SAB80C535 + SAK-C167SR-LM 24LC02 smd
PORSCHE PCM NAVIGATION BECKER + SIEMENS SAB80C535 + SAK-C167SR-LM 24LC02 smd
PORSCHE PCM NAVIGATION BECKER + SIEMENS SAB80C535 + SAK-C167SR-LM 24LC02 smd
PORSCHE PCM E1 NAVIGATION BECKER ST10F269 24C64 smd
PORSCHE PCM E1 USA NAVIGATION BECKER ST10F269 24LC16 smd TDA7454
PORSCHE PCM2.1E1 USA  NAVIGATION HARMAN/BECKER ST10F280-B3 24C64 smd
PORSCHE TRAFFIC PRO BECKER SAFC191CI32F-16F 24LC04 smd TDA8569Q
PORSCHE   BECKER   24C04 smd
PORSCHE CD-2 ALPINE 51T15184W01
PORSCHE CD-10 ALPINE 51T3562Y01 + 51T25597Y02 24C04 smd TDA7385
PORSCHE CD-10 ALPINE D75P308GF or 51T15184W01   NO
PORSCHE CDR-21 BECKER
PORSCHE CDR-21 BECKER SAB80C535-N 24LC04 TDA8561Q x 2
PORSCHE CDR-210 BECKER
PORSCHE CDR-210 BECKER
PORSCHE CDR-22 BECKER D78F4216AGF 24C02 TDA8569Q
PORSCHE CDR-22 BECKER
PORSCHE CDR-220 BECKER
PORSCHE CDR-220 BECKER NEC 1354.043-308 4362 24C02 TDA8569Q
PORSCHE CDR-220 BECKER
PORSCHE CDR23 BECKER ST10F280-B3 24LC16B smd
PORSCHE CDR23 BECKER ST10F280-B3 24LC16B smd TDA8569Q
PORSCHE CDR23 BECKER ST10F280-B3 24LC16B smd TDA8569Q
PORSCHE CDR-32 BECKER
PORSCHE CR-1 ALPINE 51T45249W01 93C46
PORSCHE CR-11 BECKER   24C02
PORSCHE CR-210 BECKER SAB80C535-N 85C82
PORSCHE CR-21 BECKER SAB80C535-N PCF85C82 smd TDA7375 x 2
PORSCHE CR-22 BECKER D78F4216GF 24C02
PORSCHE CR-31 BECKER   85C82
PORSCHE CR-31 BECKER SAB80C535N 85C92
PORSCHE MDR-32 BECKER SAB80C537N 24C02
