RENAULT R5, R19, R21, ESPACE, TWINGO

Renault R5, R19, R21, Espace, Twingo

1-+12 VOLT IGNITION WIRE

9-Speaker RR+

14-Speaker LF-

2-GND

10-Speaker RR-

15-Speaker LR+

3-+12 VOLT BATTERY WIRE

11-Speaker RF+

16-Speaker LR-

4-Dash Light Dimmer Wire

12-Speaker RF-

-

5-Power Antenna Turn On

13-Speaker LF+

-







Grundig auto radio Audio 4000, Twingo/VD











Renault Twingo HO RDS RADIOSAT 2000 RDS radio wiring diagram







  VDO Tunerlist, VDO Updatelist




A

Power  connector

1

Speed Dependent Volume Control

2

n/c

3

Phone mute (ground to activate)

4

+12V (constant)

5

+ Aerial (12V when radio on)

6

+ Lights (12V when lights on)

7

+ACC (12V when ACC on)

8

GND

B

Speaker connector

1

+ Rear Right

2

- Rear Right

3

+ Front Right

4

- Front Right

5

+ Front Left

6

- Front Left

7

+Rear Left

8

- Rear Left

C1

CCU(*) connector

1

DTA

2

CLK

3

MIRQ

4

n/c

5

Radio ON

6

GND

C2
(**)

AUX connector (**)

7

n/c

8

n/c

9

n/c

10

Audio Left

11

Audio Right

12

Audio GND

C3

CD Changer connector

13

Tx (from HU to CDC or PC)

14

Rx (from PC or CDC to HU)

15

GND

16

12V (constant)

17

HU ON (12V when HU is ON)

18

SPDIF IN (***)

19

SPDIF GND (***)

20

(SPDIF GND) (***)

  (*) Central Communication Unit. This is the way the HU receives stalk control commands and sends information to the dash display.
 (**) Auxiliary input only available on Update List models. The AUX input must be activated in the head unit's menu. C2 doesn't exist at all on Tuner List models
 (***) Models before 2000 have an analog CD Changer audio input instead of SPDIF. In that case, the pinout is as follows: 18=Audio GND, 19=Audio Left and 20=Audio Right.

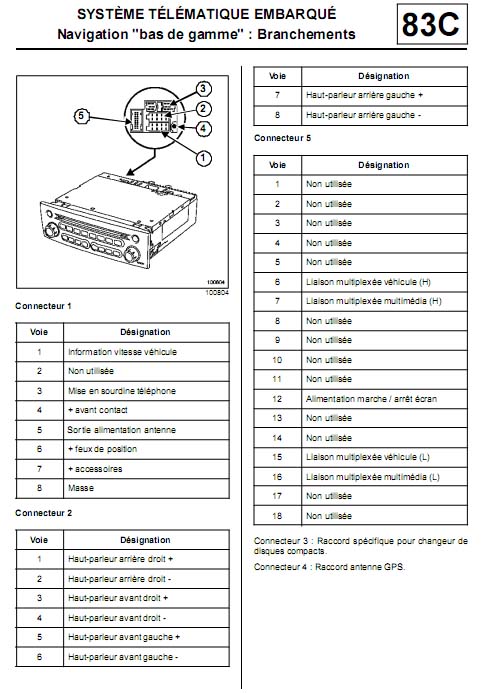

Renault Carminate





Renault Cabasse wiring connector







Philips 22DC279-62 wiring connector







  • Renault Clio II 1998 2005 VDO Tunerlist

  • Renault Clio II 1998 2005 VDO Updatelist

  • Renault Clio III 2005 VDO Updatelist

  • Renault Clio III 2005 VDO Cabasse

  • Renault Espace IV 2002 VDO Tunerlist

  • Renault Espace IV 2002 VDO Updatelist

  • Renault Espace IV 2005 VDO Cabasse

  • Renault Kangoo 2008 VDO Tunerlist

  • Renault Kangoo 2008 VDO Updatelist

  • Renault Laguna II 2001 2007 VDO Tunerlist

  • Renault Laguna II 2001 2007 VDO Updatelist

  • Renault Laguna II 2005 2007 VDO Cabasse

  • Renault Master 2001 2010 VDO Tunerlist

  • Renault Master 2001 2010 VDO Updatelist

  • Renault Megane II 2003 2008 VDO Tunerlist

  • Renault Megane II 2003 2008 VDO Updatelist

  • Renault Megane II 2005 2008 VDO Cabasse

  • Renault Modus 2004 2011 VDO Tunerlist

  • Renault Modus 2004 2011 VDO Updatelist

  • Renault Scenic II 2003 2008 VDO Tunerlist

  • Renault Scenic II 2003 2008 VDO Updatelist

  • Renault Scenic II 2005 2008 VDO Cabasse

  • Renault Traffic II 2001 VDO Tunerlist

  • Renault Traffic II 2001 VDO Updatelist

  • Renault Twingo 2007 2010 VDO Tunerlist

  • Renault Velsatis 2001 2009 VDO Tunerlist

  • Renault Velsatis 2001 2009 VDO Updatelist





Car radio Model autoradio Manufacturer MCU EEPROM IC Amplifier CD changer  Car
RENAULT     14166 PHILIPS D1723 GF-682 24C02
RENAULT 22 AC955/62    RENAULT  25  V6 PHILIPS 22AC955 -1 ER1400
RENAULT 22 DC ? bez displeja PHILIPS P83CE558EFP/077 24C16 TA8276H   MEGANE
RENAULT 22 DC229/62M PHILIPS PN R3 V1.01  93CW44DF-1803 24C32
RENAULT 22 DC239/62P PHILIPS PN R3 V1.01  93CW44DF-1803 24C32 smd TDA7385   MEGANE
RENAULT 22 DC259/62P  without  display PHILIPS PN R1 V1-13  93CW44DF-1A10 24C32
RENAULT 22 DC259/62F  without  display PHILIPS PN R1 V1.01  93CW44DF-1B03 24C32
RENAULT 22 DC278/62B PHILIPS PN R3 V1-01 24C32
RENAULT 22 DC279/62F CD PHILIPS   24C32 smd TDA7385
RENAULT 22 DC379/62B PHILIPS PN R3 V1-01 24C32 smd     MEGANE
RENAULT 22 DC451/62 PHILIPS DC459/62L-V2.0   TMP87CM21F2427 24W166     MEGANE , LAGUNA , CLIO
RENAULT 22 DC459/62S without display PHILIPS DC459/62L-V2.0   TMP87CM21F2427 24W166     MEGANE , LAGUNA , CLIO
RENAULT 22 DC461/62T PHILIPS DC459/62I- V3.0   TMP87CM21F2301 24W166     MEGANE , LAGUNA , CLIO
RENAULT 22 DC461/62E PHILIPS DC459/62L-V2.0   TMP87CM21F2427 24W166     MEGANE , LAGUNA , CLIO
RENAULT 22 DC461/62E PHILIPS DC461/62L-V3.0 24W166     MEGANE,  LAGUNA , CLIO
RENAULT 22 DC461/62L PHILIPS   24W166
RENAULT 22 DC469/62L PHILIPS   24W166
RENAULT 22 DC479/62 no display PHILIPS
RENAULT 22 DC481/62  no  display PHILIPS DC481/62-V3.0 87CM27F-2435 24C16
RENAULT 22 DC481/62  no  display PHILIPS DC479/62-V2.0 87CM21F-2304 24W166
RENAULT 22 DC481/62  CD PHILIPS   24C16
RENAULT 22 DC577/62B PHILIPS D1723GF-682   577 RC4 4C02C6      (24C02)
RENAULT 22 DC579/62 PHILIPS 47C421AF 8527 X24C02
RENAULT 22 DC593/62L PHILIPS P83CE558EFB119 24C16 2xTDA7374B
RENAULT 22 DC594/62F bez displeja PHILIPS P83CE558EFB080 24C16 2xTDA7374B
RENAULT 22 DC594/62S bez displeja PHILIPS P83CE558EFB104      594-62E v1.0 ST24W16 2 xTDA7374B
RENAULT 22 DC594/62 bez displeja PHILIPS P83CE558EFB119 ST24W16
RENAULT 22 DC594/65 bez displeja PHILIPS P83CE558EFB113 24W16
RENAULT 22 DC665/62  AUDIO PHILIPS D1714G 590
RENAULT 22 DC665/62R  SAT PHILIPS D1714G 660 X2402 2xTDA1516
RENAULT 22 DC677/62E PHILIPS TMP47C800N 24C02
RENAULT 22 DC677/62S SAT PHILIPS   24C02
RENAULT 22 DC679/62Z PHILIPS 47C800N-P437 ST24C02AB6
RENAULT 22 DC679/72E PHILIPS   24C02
RENAULT 22 DC682/82 PHILIPS 47C800N X2404
RENAULT 22 DC745/60 PHILIPS P83CE560EFB040 24C166
RENAULT 22 DC865/62B PHILIPS   24C02     25
RENAULT 22 DC882 PHILIPS   24C02
RENAULT 22 DC885 PHILIPS
RENAULT 22 DC885   no  displey   2xDIN PHILIPS 47C800N-2385 X2402
RENAULT 22 DC942/62 CD  no display PHILIPS   24C16
RENAULT 22 DC962/62B PHILIPS TMP47C800N 24C04 + 24C04 + 24C08   SAFRAN
RENAULT 22 DC982/62B PHILIPS PCF80C52 24C04 + 24C04 + 24C08 2xTDA7374
RENAULT 22 DC982/72 PHILIPS TMP47C800N 24C04 + 24C04 + 24C08
RENAULT 22 RC220 PHILIPS   24C32
RENAULT 25 ORIGINAL PHILIPS
RENAULT AP082/62 PHILIPS TMP47C800N-2358
RENAULT AL7RN6K ALPINE
RENAULT AX 300 PHILCO LC7232N-8911 59C11 smd
RENAULT AX 3023 PHILCO LC7232N-8911 59C11 smd
RENAULT CABASSE AUDITORIUM TRONIC   VDO 93CW44DF-4VU0 24C32 smd

RENRDW101-11 without display
RENAULT CM7RN41F bez displeja ALPINE 51T85132W02 24C02 smd
RENAULT CM7RN61F ALPINE   24C02
RENAULT CTR 320 AUTOSOUND LC7230 93C46
RENAULT CTR 340     S2914
RENAULT CTR 420 AUTOSOUND D1719G 552 CXK1012 2xLA4425
RENAULT CTR 440 AUTOSOUND LC7230 93C46
RENAULT CTR 480 AUTOSOUND D1719G 556 CXK1012 TDA1554Q
RENAULT CTR 510 AUTOSOUND LC7230 93C46
RENAULT CTR 560 AUTOSOUND D1719G 570 CXK1012
RENAULT CTR 620 AUTOSOUND D75116GF 652 or 707 35C102
RENAULT DEH-2006 RDS CD panel PIONEER   PDH004A
RENAULT G4 (A) BP0490 BLAUPUNKT D7514G-535  (8925900332) SDE2506 2xTDA7350
RENAULT G4 (B) BP0491 BLAUPUNKT D7514G-535  (8925900332) SDE2506 2xTDA7350
RENAULT G4 (B) BP0491 BLAUPUNKT D7514G-535 SDE2506
RENAULT G4 (C) BP0492 BLAUPUNKT D7514G-535 SDE2506
RENAULT G4 (D) BP0493 BLAUPUNKT D7514G-535 SDE2506     CLIO
RENAULT G4 (F) BP0495 BLAUPUNKT D7514G-535 SDE2506 2xTDA7375
RENAULT G5 (B) RDS BP4495 BLAUPUNKT ZC86590CFN  MC68HC05B16 (8925901561)       MCU

SDA20840A-005 panel
RENAULT G5 CLIO RDS BP4495 BLAUPUNKT ZC86590CFN  MC68HC05B16 (8925901561)          MCU

SDA20840A-005 panel
RENAULT HO  BP6120 BLAUPUNKT 47C647F-GA24 24C016
RENAULT HO CLIO BP6122 BLAUPUNKT 47C647F-GA24  (8925901751) 24C016     TWINGO
RENAULT HO RDS BP8124 BLAUPUNKT ST7282A5BQ6/CYS (8925904105) M990E9940B ST92256
RENAULT HO RDS BP8124 BLAUPUNKT ST7282A5BQ6/CYS (8925904105) M990A9845B ST92256
RENAULT HO RDS BP8124 BLAUPUNKT ST7282A5BQ6/CYS (8925904105) M990E0001B ST92256
RENAULT HO RDS TWINGO BP8126  smartcard BLAUPUNKT ST7282A5BQ6/CYS (8925904105) M990E9940B ,  ST92256

HT6HEF (8925904106) M990C9931
RENAULT HO RDS TWINGO BP8126  smartcard BLAUPUNKT ST7282A5BQ6/CYS (8925904105) M990E9935B ,  ST92256

HT6HEF (8925904106) M990C9931
RENAULT II  BP7881 BLAUPUNKT HYBRID CERAMIC  (8638309258)
RENAULT KEH-1006  no display PIONEER     TDA7385
RENAULT KEH-M1066ZRN  no display PIONEER PD4752D S220            93C56
RENAULT LAGUNA PHILIPS     2xTDA7375
RENAULT MONO CD H3 RDS  BP8128  BLAUPUNKT ZC401643CFU2  MC68HC11PA8 (8925904245) 24WC08  ,  MCU 2xTDA7375
RENAULT MONO CD H3 RDS  BP8129 BLAUPUNKT ZC401643CFU2  MC68HC11PA8 (8925904245) 24WC08  ,  MCU
RENAULT NAVIGATION BECKER   24LC04 smd
RENAULT PU-9833A CLARION D17006AGF 621 S2914 smd     406 po face liftingu
RENAULT PU-2741A CLARION
RENAULT R 2446 RDS 24V  BP7005 BLAUPUNKT ZC99193CFN MCU 2xTDA2052
RENAULT R 2446 RDS 24V  BP7005 BLAUPUNKT ZC99298CFN  MC68HC05B16 (8925901645)   MCU 2xTDA2052

TMS375C006-RDS  47C847F-WYŚWIETLACZ
RENAULT R 2446 RDS 24V  BP7005 BLAUPUNKT ZC99298CFN  MC68HC05B16 (8925901868)   MCU

TMS375C006-RDS  47C847F-WYŚWIETLACZ
RENAULT RADIOSAT 2000 BLAUPUNKT
RENAULT RADIOSAT 4000  22 DC449/62L PHILIPS TMP87CM21F 2212 ST24W166
RENAULT RADIOSAT 4000  22 DC451/62L PHILIPS DC459/62L-V2.0   TMP87CM21F2427 24W16
RENAULT RADIOSAT 4010 PHILIPS
RENAULT RADIOSAT 6000  22DC279/62CD no display PHILIPS   24C32
RENAULT RADIOSAT 6000  22DC279/62L   no display PHILIPS 93CW44DF-1B03 24C32 smd
RENAULT RADIOSAT 6000 CD PHILIPS
RENAULT RADIOSAT 6000 druga  edycja PHILIPS
RENAULT RADIOSAT 6010  22 DC459 PHILIPS TMP87PP21F ST24W166 2xTDA7375
RENAULT RADIOSAT 6010  22 DC459 PHILIPS TMP87CM21F 2301 ST24W166
RENAULT RADIOSAT 6010  22 DC459/62L PHILIPS DC459/62L-V1.7 TMP87CM21F 2254 24W166
RENAULT RDS  24V  BP5040 BLAUPUNKT      ST7282A5BQ6/CYS (8925904105)
RENAULT RDS BP4496 BLAUPUNKT ZC99175CFN  (8925901657) + (8925901557) MCU
RENAULT TRAVELPILOT RGS08 BLAUPUNKT
RENAULT TWINGO BP6500 BLAUPUNKT TMP47C847F 434 24C01
RENAULT X4 BLAUPUNKT
