SUBARU LEGACY, IMPREZA, VIVIO

Subaru Legacy, Impreza, Vivio

1-+12 VOLT IGNITION WIRE

11-SPEAKER RF+

2-GND

12-SPEAKER RF-

3-+12 VOLT BATTERY WIRE

13-SPEAKER LF+

4-DASH LIGHT DIMMER WIRE

14-SPEAKER LF-

5-Power Antenna Turn On

15-SPEAKER LR+

9-SPEAKER RR+

16-SPEAKER LR-

10-SPEAKER RR-

-

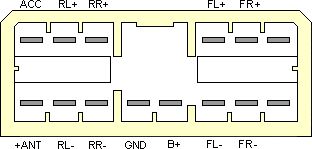

SUBARU P120








Subaru Forester 2011 CP635U1 Clarion PF-3302B-A wiring connector





Subaru GL 1986







SUBARU CX-WF8561Z





SUBARU GX806EF2 Kenwood





SUBARU GX-201LH Kenwood

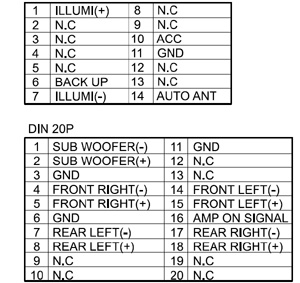

SUBARU Mclntosh PF-40621





SUBARU PF-2343I-A







SUBARU P-130 CQ-EF7360K

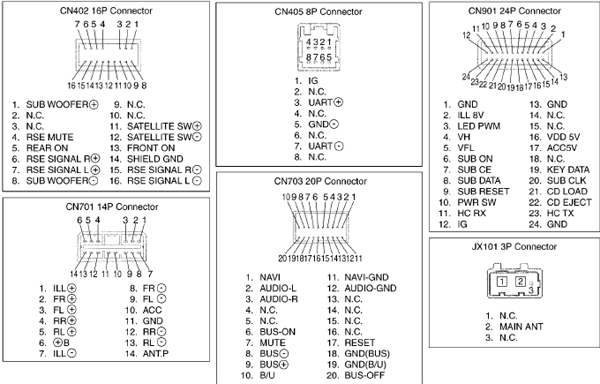

SUBARU P136 CQ-EF8560









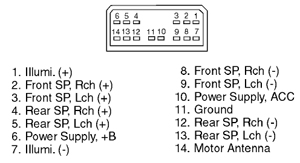

SUBARU P129







SUBARU P123

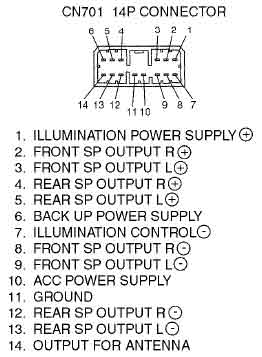

SUBARU P121 CQ-JF1910

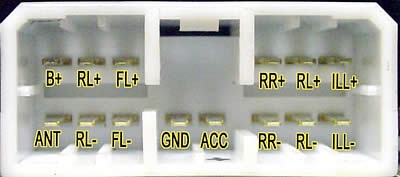

SUBARU RF-2125I









Subaru Legacy LHD





Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

SUBARU

22 DC68592

PHILIPS









LEGACY

SUBARU

22 DC632

PHILIPS











SUBARU

EASY

AUTOSOUND











SUBARU

GAMMA III





93C46

TDA1554





SUBARU

GUNMA III

AUTOSOUND

LC7230

93C46







SUBARU

MITAKA II

AUTOSOUND

D1719

CXK1012







SUBARU

PARIS III

AUTOSOUND

D75116GF 707

CAT35C102









SUBARU 22 DC68592 PHILIPS TMP47P800N 8923 24C02 TDA1516Q x 2
SUBARU GUNMA II AUTOSOUND D1719G556 or D1719G570 CXK1012 TA8205AH
SUBARU GUNMA III AUTOSOUND LC7230 93C46 TDA1554Q
SUBARU GX806 EF2 KENWOOD D703037HYGF M01 24C01 smd + 24C02 smd + 24C02 smd TDA7384
SUBARU GX-201JE F2  6CD KENWOOD D703037AYGF 24C01 smd + 24C01 smd TDA7384
SUBARU KNR100-05 NAVIGATION PHILIPS   24C32
SUBARU MITAKA AUTOSOUND LC7230 93C46 LA4425 x 2
SUBARU MITAKA II AUTOSOUND D1719 CXK1012 uPC1310V
SUBARU P126 MATSUSHITA D178076GF559   TA8259H
SUBARU P129 MATSUSHITA
SUBARU P130 MATSUSHITA D178078GF554
SUBARU PANASONIC P411 LOGIC CONTROL MATSUSHITA
SUBARU PARIS III AUTOSOUND D75116GF707 35C102
SUBARU TOKYO III AUTOSOUND D75116GF707 35C102
SUBARU   AUTOSOUND MB88551H293N ER5911
SUBARU McINTOSH  PF-2343I-A CLARION + McINTOSH



SUBARU Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install.

SUBARU Car radio wiring diagrams. Car radio wire diagram  gm radio wiring diagram. Car s car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours.

SUBARU auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation.  How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car  radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.
