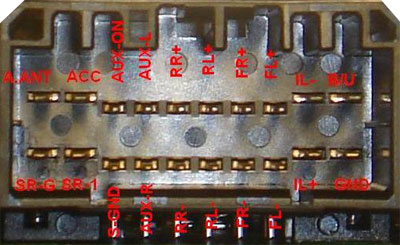

SUZUKI SWIFT

Suzuki Swift

1-+12 VOLT IGNITION WIRE

12-SPEAKER RF-

3-+12 VOLT BATTERY WIRE

13-SPEAKER LF+

4-DASH LIGHT DIMMER WIRE

14-SPEAKER LF-

5-Power Antenna Turn On

15-SPEAKER LR+

9-SPEAKER RR+

16-SPEAKER LR-

10-SPEAKER RR-

-

11-SPEAKER RF+

GND-ОБОД РАЗЬЕМА







SUZUKI Model:391001-65010

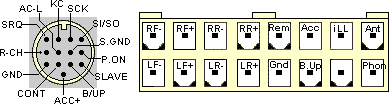

SUZUKI Model:39101-65D10
Clarion Co. Ltd JAPAN (PS-1626D-B)







SUZUKI CLARION PS-2654D-B 39101-65J30





Suzuki Baleno 1998-2001 stereo wiring

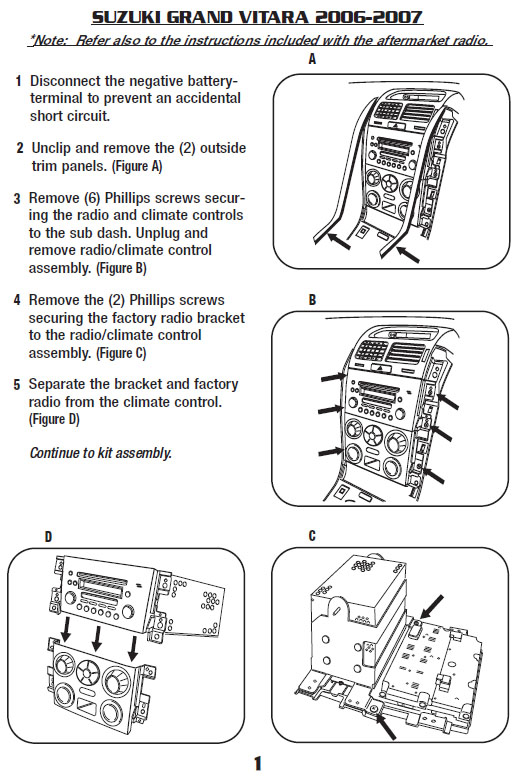

Suzuki Grand Vitara 2006 2007 stereo removal installation











Suzuki Grand Vitara





Suzuki Grand Vitara 2007





Suzuki Aerio 2006 clock wiring







Suzuki Aerio 2006 stereo wiring

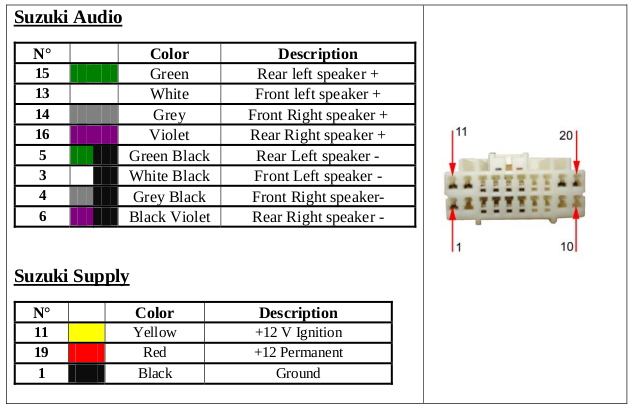

Suzuki Swift 2012 stereo wiring connector





Suzuki sx4 crossover 2008







Suzuki sx4 crossover 2008 stereo wiring 2















Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

SUZUKI

BERN

AUTOSOUND

D1719

CXK1012







SUZUKI

BERN II

AUTOSOUND

LC7230 SHINTOM

93C46







SUZUKI

DAVOS II

AUTOSOUND

LC7230

93C46







SUZUKI

GENF  AS0420

AUTOSOUND

D1719G 552

CXK1012







SUZUKI

GEO

DELCO













SUZUKI BERN AUTOSOUND D1719 CXK1012
SUZUKI BERN II AUTOSOUND LC7230 8338 93C46 TDA1554Q
SUZUKI DAVOS II AUTOSOUND LC7230 8325 93C46 LA4425 x 2
SUZUKI DY-3E44S-SL MITSUBISHI   93LC56 smd
SUZUKI GENF AUTOSOUND D1719G552 CXK1012 uPC1310V
SUZUKI GEO DELCO
SUZUKI PACR01 MATSUSHITA D784938AGF 24C01 smd
SUZUKI PACR06 MATSUSHITA
SUZUKI PS-2428D CLARION M30622MAA-D86FP  (052-3143-20)   TDA7384
SUZUKI PS-2589D CLARION M30624MGA-142GP 93C46 smd
SUZUKI PS-2654D-B  6CD CLARION M30624MGA-630GP 93C46 smd TA8276HQ
SUZUKI PS-2660D-A CLARION M30622MCA-8Y9GP 93C46 smd
SUZUKI PS-2691D  6CD CLARION M30624MGA-637GP 93LC46 smd
SUZUKI CLCC02 PS-2809K  6CD CLARION M30622MGP-D73GP 93LC46 smd TA8276HQ
SUZUKI PS-2991D  6CD CLARION   93LL46 smd TA827?
SUZUKI RY-3E44S-SL-TH MITSUBISHI
SUZUKI MSC CC  BP3062  no display BLAUPUNKT M30622MCA-7H3FP 24C08 smd or 24C16 smd TDA7375A x 2
SUZUKI MSC CD  BP3063  no display BLAUPUNKT M30622MCA-7H3FP (8925905577) 24C08 smd or 24C16 smd TDA7375A x 2
SUZUKI CD  BP4061  no display BLAUPUNKT M30622MCA 24C08 smd or 24C16 smd TDA7375A x 2
