  800W pure sine inverter schematic diagram circuit schema








An Inverter not only converts the DC Voltage of battery to 220V/120 V AC Signals but also charge the Battery when the AC mains is present.

The 800W pure Sine Wave inverter has various applications because of its key advantages such as operation with very low harmonic distortion and clean power like utility-supplied electricity, reduction in audible and electrical noise in Fans, fluorescent lights and so on, faster, quieter and cooler running of Inductive loads like microwaves and motors.

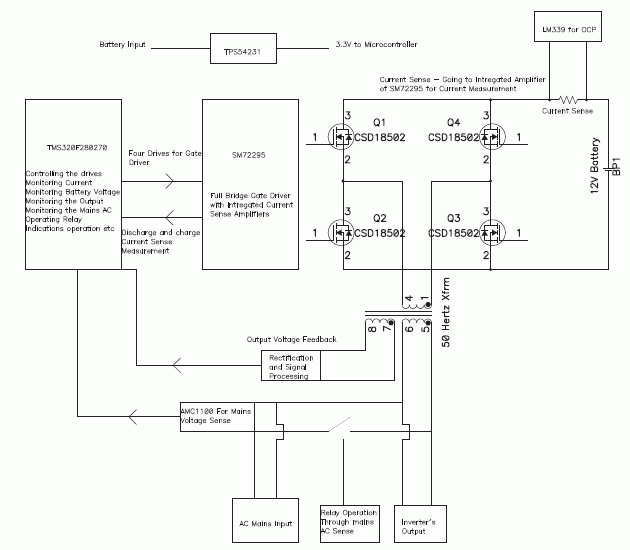

The schematic block circuit diagram schema of 800W pure sine inverter shown above is a simple depiction of the way an Inverter Works.

ISchematic block diagram of 600VA to 3 KVA Residential Pure Sine Wave inverters

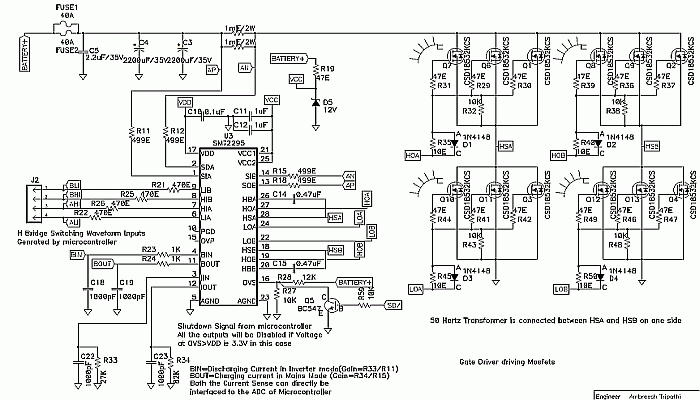

  Download 800W pure sine inverter schematic diagram circuit
