AUDI GAMMA

A	B	C
1-Gala	1-Speaker RR+ (not all models)	1-Data
2-Gnd	2-Speaker RR- (not all models)	2-Clk
3-Control+12V	3-Speaker RF+	3-Ena
5-Power Antenna Turn On	4-Speaker RF-	5-Gnd
6-Dash Light Dimmer Wire	5-Speaker LF+	6-Control+12V
7-+12 VOLT IGNITION WIRE	6-Speaker LF-	7-Line out RF
8-Gnd	7-Speaker LR+ (not all models)	8-Line out RR
-	8-Speaker LR- (not all models)	9-Line out LF
-	-	10-Line out LR

Blaupunkt gamma

Audi Chorus A8 Audi Concert A8

Grundig car stereo Audi Chorus, Audi Concert, Audi Gamma CC

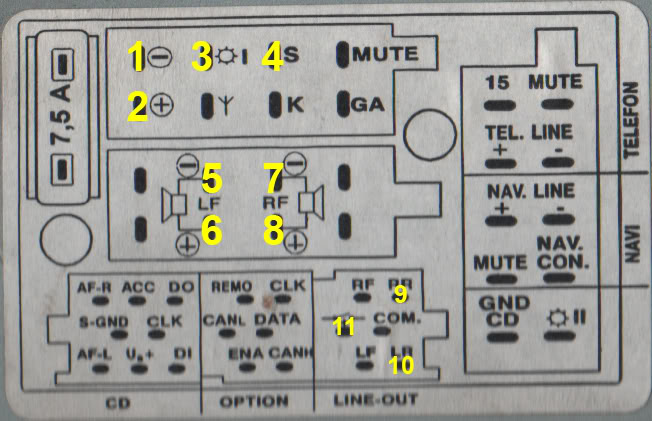

Audi A4 Symphony

Audi Symphony

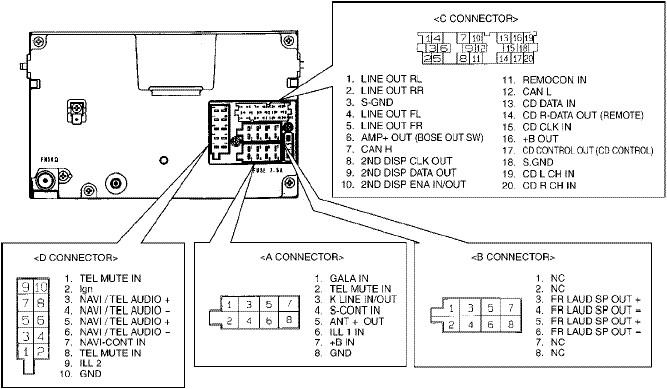

Audi Symphony CQ-JA1920L CQ-JA1924L

Audi-Concert CQ JA1071L CQ-JA1072L CQ-JA1073L CQ-JA1074L

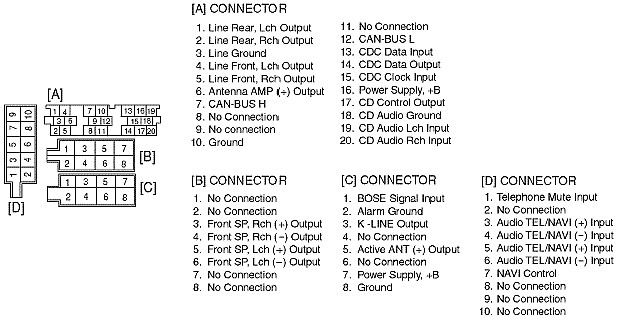

Audi Concert CQ-LA1923L

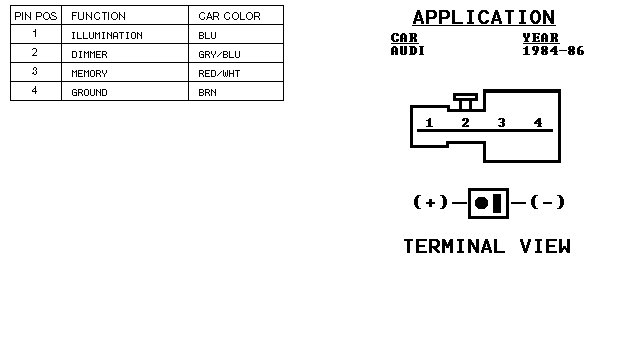

AUDI 1984 - up

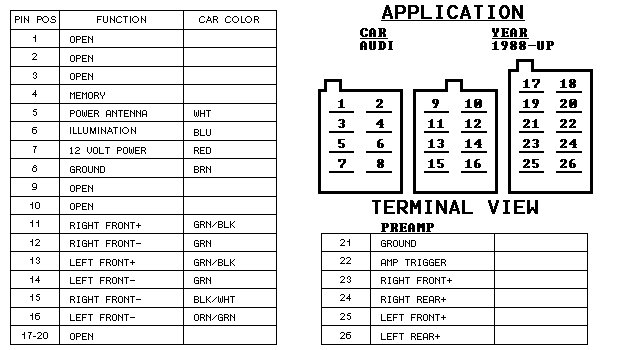

Audi 1998 -up

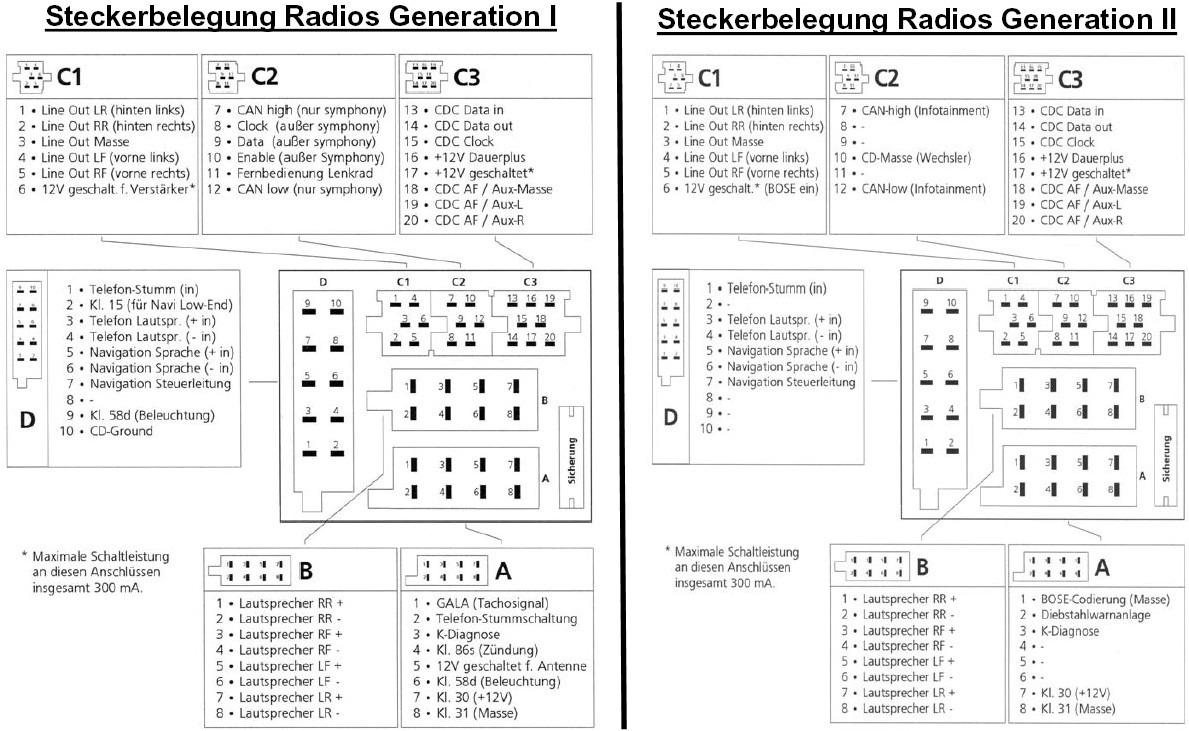

Audi A3 Symphony

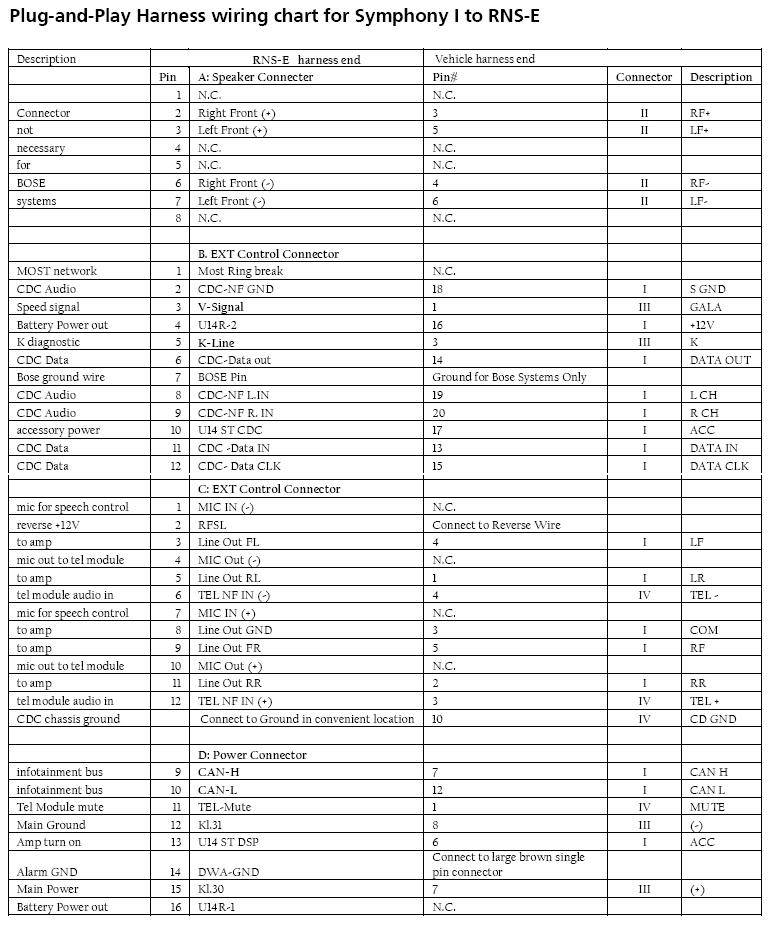

Audi Symphony I to RNS E

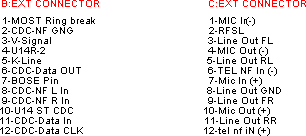

Audi Navigation plus RNS-E

Audi Symphony CQ-EA1070L CQ-EA1071L CQ-1072L CQ-1073L CQ-1074L

Audi Symphony II to RNS-E

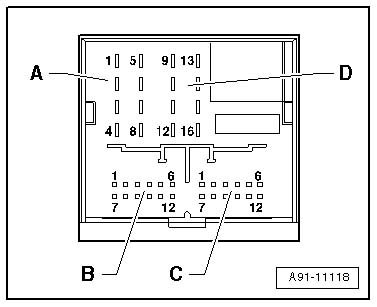

Audi Q5 8R MMI 3G stereo head unit wiring diagram

Information electronics control unit 1 -J794

A - Multi-pin connector, 8-pin
1 - LF mute from mobile phone prefitting
2 - Voltage supply to multimedia operating unit -E380-
3 - Wake UP to multimedia operating unit -E380-
5 - "Mobile ON" signal, Power ON
6 - Reset to multimedia operating unit -E380-
7 - Loop break diagnostic wire

B - Multi-pin connector, 12-pin
2 - Microphone input (+) of microphone unit in front roof module -R164- for voice control (voice control microphone)
3 - Microphone input (-) of microphone unit in front roof module -R164- for voice control (voice control microphone)
4 - Send wire to R173 - Traffic data aerial (TX VICS)
5 - Composite colour signal wire (-) of rear-view camera control unit -J772-
6 - Send wire to J676 - Chipcard reader control unit (TX ETC)
8 - Microphone input (+) microphone unit in front roof module -R164- (telephone microphone)
9 - Microphone input (-) microphone unit in front roof module -R164- (telephone microphone)
10 - Receive wire from R173 - traffic data aerial (RX VICS)
11 - Composite colour signal wire (+) of rear-view camera control unit -J772-
12 - Receive wire from J676 - Chipcard reader control unit (RX ETC)

C - Multi-pin connector, 12-pin
All pins are connected to the terminal for external audio sources -R199-.
1 - LF-In earth
2 - LF-In right
3 - USB (+5V)
4 - USB (earth)
6 - Detect
7 - LF-In left
8 - LF-In shield earth
9 - Composite colour signal wire (+)
10 - Composite colour signal wire (-)
11 - iPod data

D - Multi-pin connector, 8-pin
9 - "Telephone ON" signal to telephone bracket -R126-
10 - Data from multimedia operating unit -E380-
11 - Data to multimedia operating unit -E380-
12 - Terminal 31
13 - SNDREQ signal from telephone bracket -R126- (mobile)
14 - Reset from multimedia operating unit -E380-
15 - Terminal 30
16 - Earth to multimedia operating unit -E380-

	Audi A6 1998 2004 Concert I
	Audi A6 1998 2004 Symphony
	Audi A6 1998 2004 Navigation Plus RNS-D
	Audi A6 1998 2004 Concert
	Audi A6 1998 2004 Chorus II
	Audi A6 1998 2004 Symphony
	Audi A6/S6 2005 2009 MMI2
	Audi A6/S6 2005 2009 MMI2
	Audi A6/S6 2009 2011 MMI3
	Audi A6 Allroad 2006 2008 MMI2
	Audi A6 Allroad 2006 2008 MMI2 High
	Audi A8 1999 2003 Concert I
	Audi A8 1999 2003 Symphony
	Audi A8 1999 2003 Navigation Plus RNS-D
	Audi A8 1999 2003 Concert
	Audi A8 1999 2003 Chorus
	Audi A8 1999 2003 Symphony
	Audi A8/S8 2002 2009 MMI2
	Audi A8/S8 2009 2011 MMI3
	Audi Q5 2009 2011 MMI3
	Audi Q7 2004 2009 MMI2 Basic
	Audi Q7 2004 2009 MMI2 High
	Audi Q7 2009 2011 MMI3
	Audi R8 2006 2009 all non touch screen radios
	Audi R8 2006 2009 RNS-E
	Audi TT 1999 2003 Concert I
	Audi TT 1999 2003 Symphony
	Audi TT 1999 2003 Navigation Plus RNS-D
	Audi TT 1999 2007 Concert II
	Audi TT 1999 2007 Chorus
	Audi TT 1999 2007 Symphony II
	Audi TT 2007 2012 Concert GEN II+
	Audi TT 2007 2012 Chorus GEN II+
	Audi TT 2007 2012 Symphony GEN II+
	Audi TT 2007 2009 RNS-E
	Audi TT 2007 2012 RNS-Low (BNS 5.0)

Car radio	Model autoradio	Manufacturer	MCU	EEPROM	IC Amplifier	Car
AUDI	BETA AUTOREVERSE CC
AUDI	BETA AUTOREVERSE CC AUZ1Z2	BLAUPUNKT	47C446AFP864 ( 8925901401)	4C01C6 (24C01)	TDA7376B
AUDI	BETA AUTOREVERSE CC AUZ8Z2	ALPINE	65529W034	X24C01 smd	TA8221AL
AUDI	BETA CC AUZ1Z2	BLAUPUNKT	47C446AF 1927	93C14BN	2xTDA2005
AUDI	BETA CC AUZ1Z2	BLAUPUNKT	ZC400882CFN
AUDI	CHORUS	BLAUPUNKT	MC68HC705B32 (8925904083)	MCU	TDA7376B
AUDI	CHORUS A3	BLAUPUNKT	MC68HC705B32	MCU	TDA7376B	AUDI A3
AUDI	CHORUS A8	BLAUPUNKT	MC68HC705B32 (8609500004)	MCU	TDA7376B
AUDI	CHORUS A8	BLAUPUNKT	MC68HC705B32	MCU	TDA7376B
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	XC85535CFN MC68HC705B32 (8925904083), ZC433170FN (8925901778)	MCU
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	MC68HC705B32 (8924904134)	MCU
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	XC85535CFN MC68HC705B32 (8925904083), ZC433170FN (8925901778)	MCU	TDA7376B
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	ST6280BQ6/AMZ
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	XC85541CFN MC68HC705B32 (8925904134)	MCU	TDA7376B
AUDI	CHORUS AUZ2Z2	GRUNDIG	M306N0FGTFP	24C16
AUDI	CHORUS AUZ2Z2	GRUNDIG	M306N0FGTFP	24C16	2xTDA7375
AUDI	CHORUS M4 AUZ1Z2	BLAUPUNKT	XC85556CFN MC68HC705B32 (8925904252)	MCU	TDA7376B
AUDI	CONCERT	MATSUSHITA	YEAMH3318802	S220
AUDI	CONCERT	BLAUPUNKT
AUDI	CONCERT AUZ1Z3	BLAUPUNKT
AUDI	CONCERT AUZ5Z3	MATSUSHITA	YEMH3318A03 lub 64333118F16	S220	AN7190NK
AUDI	CONCERT AUZ5Z3	MATSUSHITA
AUDI	CONCERT AUZ5Z6	MATSUSHITA	YEMH3318A02 (03) + D75004GK08	59C22	AN7190NK
AUDI	CONCERT II AUZ5Z6	MATSUSHITA	SAFC161C132F	29S330		AUDI TT
AUDI	CONCERT A8 AUZ1Z3	BLAUPUNKT	XC85541CFN MC68HC705B32 (8925904134)	MCU	TDA7376B	AUDI A8
AUDI	CONCERT A8 AUZ1Z3	BLAUPUNKT	XC85541CFN MC68HC705B32 (8925904134)	MCU	TDA7376B	AUDI A8
AUDI	CONCERT CD AUZ2Z3	GRUNDIG	M306NDFGTFP	24C16
AUDI	CONCERT CD AUZ2Z3	GRUNDIG		24C16
AUDI	CONCERT CD AUZ2Z3	GRUNDIG	M306N0FGTFP	24LC16	TDA7375A
AUDI	CONCERT CD AUZ2Z3	GRUNDIG	M306N0FGTFP	24LC16
AUDI	CONCERT M4 AUZ1Z3	BLAUPUNKT	XC85535CFN MC68HC705B32 (8925904083)	MCU
AUDI	CONCERT M4 AUZ1Z3	BLAUPUNKT	XC85556CFN MC68HC705B32 (8925904252)
AUDI	CONCERT M4 AUZ1Z3	BLAUPUNKT	XC85541CFN (8925904134)	MCU
AUDI	CONCERT NAV AUZ1Z3	BLAUPUNKT	MC68HC05B32 (8609500001)	MCU
AUDI	CONCERT NAV AUZ1Z3	BLAUPUNKT	XC85541CFN MC68HC705B32 (8925904134)	MCU
AUDI	CONCERT NAV AUZ1Z3	BLAUPUNKT
AUDI	CONCERT PLUS AUZ1Z3	BLAUPUNKT	TI H11-01A01CW (8925904446)	25C160
AUDI	CONCERT PLUS AUZ1Z3	BLAUPUNKT	TI H11-99AC9NW (8925904448)	25C160
AUDI	CONCERT PLUS AUZ1Z3	BLAUPUNKT	TI H11-99ACDVW (8925904446)	25C160
AUDI	CONCERT PLUS AUZ1Z3	BLAUPUNKT	TI H11-07A6ROW	25C160
AUDI	CONCERT PLUS A8 AUZ1Z3	BLAUPUNKT	TI H11-98DV2DW (9825904446)	25C160
AUDI	CONCERT TT AUZ1Z3	BLAUPUNKT	MC68HC705B32 (8925904252)	MCU		AUDI TT
AUDI	DELTA CC
AUDI	DELTA CC
AUDI	DELTA CC AUZ1Z4	BLAUPUNKT	ZC99112CFN MC68HC05B16 (8925901552)	MCU	TDA7374
AUDI	DELTA CC AUZ1Z4	BLAUPUNKT	ZC422293CFN MC68HC05B16 (8925901552)	MCU	TDA7374
AUDI	DELTA CC AUZ1Z4	BLAUPUNKT	MC68HC05B16 (8925901069) DRUGI PROCESOR (8 925 901 070)	MCU	TDA7374
AUDI	DELTA CC US II AUZ1Z4	BLAUPUNKT	MC68HC05B16 (8925901978)	MCU	TDA7375
AUDI	DELTA II (M328) AUZ1Z4	BLAUPUNKT	HYBRID CERAMIC	MCU
AUDI	DELTA II (M330) AUZ1Z4	BLAUPUNKT	HYBRID CERAMIC (8638309032)	MCU
AUDI	DELTA II BOSE AUZ1Z8	BLAUPUNKT	HYBRID CERAMIC	MCU
AUDI	DELTA II BOSE (M487) AUZ1Z8	BLAUPUNKT	HYBRID CERAMIC (8638309032)	MCU
AUDI	DELTA S AUZ1Z9	BLAUPUNKT	MC68HC05B16 (8925901552)	MCU
AUDI	DELTA S US	BLAUPUNKT	MC68HC05B16 (8925901978)	MCU
AUDI	GAMMA (M327) AUZ4Z3	HITACHI	D75104G-593 + D17P19G	S2444
AUDI	GAMMA 2	GRUNDIG	HYBRID PLASTIC	NMC9306
AUDI	GAMMA 2a VWZ2Z3	GRUNDIG	HYBRID PLASTIC	NMC9306
AUDI	GAMMA 3	GRUNDIG	MC68HC11… ( 68 plcc )	MCU
AUDI	GAMMA 3a	GRUNDIG	HYBRID PLASTIC	NM93C06
AUDI	GAMMA CC	BLAUPUNKT	ZC99100CFN MC68HC05
AUDI	GAMMA CC	MATSUSHITA
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	MC68HC05B8 (89259003850	MCU	2xTDA7350
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	ZC408637CFN MC68HC05B8 (8925900419)	MCU	2xTDA7350
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	XC408599CFN MC68HC05B6 (8925900385)	MCU	2xTDA7350
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	ZC400860CFN MC68HC05B6 (8925901027)	MCU	2xTDA7350
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	MC68HC05B16 (8925901591)	MCU
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	MC68HC05B16 (8925901400)	MCU	TDA7376B
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	ZC99133CFN MC68HC05B6 (8925901591)	MCU	TDA7376B
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	ZC99133CFN MC68HC05B6 (8925901591)	MCU	TDA7376B
AUDI	GAMMA CC AUZ2Z3	GRUNDIG	MC68HC11L6 (Grundig 94) OPENED	MCU	TDA7376B
AUDI	GAMMA CC AUZ2Z3	GRUNDIG	MC68HC11L6 (Grundig 94) OPENED	MCU	TDA7376B
AUDI	GAMMA CC AUZ5Z3	MATSUSHITA	D78214GC-523 + D17102G-012 8MHz	ST61907 smd MNC93C06?	TA8210AH
AUDI	GAMMA CC BOSE EU AUZ1Z4	BLAUPUNKT	ZC408637CFN MC68HC05B6 (8925900318)	MCU	NEMA
AUDI	GAMMA CC BOSE US AUZ1Z4	BLAUPUNKT	MC68HC05B6 (8925900330)	MCU
AUDI	GAMMA CC US AUZ1Z6	BLAUPUNKT	ZC408608CFN MC68HC05B6 (8925900326)
AUDI	GAMMA CD AUZ5Z5	MATSUSHITA	D75112GF 580 + D1719G-558	ST61907 smd MNC93C06?	NEMA
AUDI	GAMMA CD AUZ5Z5	MATSUSHITA	D75112GF 580 + D78214GC 532	ST61907 smd MNC93C06?
AUDI	GAMMA CD AUZ5Z5	MATSUSHITA
AUDI	GAMMA II	BLAUPUNKT	HYBRID CERAMIC M330 (032)	MCU	4xTDA2003
AUDI	GAMMA III	PHILIPS	P83CE558	24C16
AUDI	GAMMA III (M327) AUZ1Z3	BLAUPUNKT	HYBRID CERAMIC (8638309250 or 034)	MCU	2xTDA2005
AUDI	GAMMA III (M327) AUZ1Z3	BLAUPUNKT	HYBRID CERAMIC (8638309250 or 034)	MCU	2xTDA2005
AUDI	GAMMA III (M327) AUZ1Z3	BLAUPUNKT	HYBRID CERAMIC (8638309033)	MCU	2xTDA2005
AUDI	GAMMA RDS	BLAUPUNKT	MC68HC05B6 (8925900574)	MCU
AUDI	GAMMA S AUZ1Z8	BLAUPUNKT	MC68HC05B6 (8925901591)	MCU
AUDI	GAMMA US	BLAUPUNKT	MC68HC05B6 (8925900326)	MCU
AUDI	NAVIGATION	BLAUPUNKT	FIS
AUDI	NAVIGATION AUZ1Z1	BLAUPUNKT	FIS
AUDI	NAVIGATION 2D	BLAUPUNKT	FIS (8638340559A02)
AUDI	NAVIGATION 2D AUZ1Z1	BLAUPUNKT	FIS 3MCM (8638340559A02)
AUDI	NAVIGATION 3 AUZ1Z1	BLAUPUNKT
AUDI	NAVIGATION PLUS AUZ1Z1	BLAUPUNKT
AUDI	NAVIGATION PLUS AUZ1Z1	BLAUPUNKT
AUDI	NAVIGATION PLUS AUZ1Z1	BLAUPUNKT
AUDI	NAVIGATION PLUS AUZ1Z1	BLAUPUNKT	FIS
AUDI	NAVIGATION PLUS AUZ1Z1	BLAUPUNKT	FIS (8638348807A02)			A6
AUDI	NAVIGATION PLUS A6 AUZ1Z1	BLAUPUNKT				A6
AUDI	NAVIGATION PLUS A8 AUZ1Z1	BLAUPUNKT	FIF (8638348807A02)			A8
AUDI	RADIO NAVIGATION AUZ1Z1	BLAUPUNKT
AUDI	RADIO NAVIGATION AUZ1Z1	BLAUPUNKT	FIS
AUDI	RADIO NAVIGATION AUZ1Z1	BLAUPUNKT	FIS (8638348807A02)
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA		59C11 S220	AN7190NK
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA	SC507418CFU MC68HC05X32	59C22 S220
AUDI	SYMPHONY HC400 AUZ5Z4	MATSUSHITA	HD64F3048F16	59C11 S220	AN7190NK
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAF-C161C132F-16F	S220
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAF-C161C132F-16F	S220	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAF-C161C132F-16F	S220
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAF-C161C132F-16F	S220
AUDI	WEISBADEN	MATSUSHITA	D1723AG	NMC9306

AUDI		CLARION	D75517GF372	93C46
AUDI	ALPHA (M095) AUZ1Z1 only radio	BLAUPUNKT	D1708AG784
AUDI	AUTOBAHN		47C200F2151 + 47C420AF8357	X2444
AUDI	BETA	BLAUPUNKT	47C446AFP836	24C01
AUDI	BETA 2 AUZ2Z2	GRUNDIG	D7507G646 BETA02		TDA2003 x 2
AUDI	BETA II	PHILIPS
AUDI	BETA CC AUZ1Z2	BLAUPUNKT	TMP47C446AF1927	93C46	TDA2005 x 2
AUDI	BETA CC AUZ1Z2	BLAUPUNKT	ZC400882CFN
AUDI	BETA AUTOREVERSE CC AUZ1Z2 wide panel	BLAUPUNKT	47C446AFP864 (8925901401)	24C01 smd	TDA7376B
AUDI	BETA AUTOREVERSE CC AUZ1Z5 wide panel	BLAUPUNKT	47C446AFP864 (8925901401)	24C01 smd	TDA7376B
AUDI	BETA AUTOREVERSE CC AUZ8Z2 wide panel	ALPINE	65529W034	X24C01 smd	TA8221AL
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	MC68HC705B32 (8609500210)		TDA7376B
AUDI	CHORUS A3	BLAUPUNKT	MC68HC705B32		TDA7376B
AUDI	CHORUS A8	BLAUPUNKT	MC68HC705B32 (8609500004)		TDA7376B
AUDI	CHORUS A8	BLAUPUNKT	MC68HC705B32		TDA7376B
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	MC68HC705B32 (XC85535CFN 8925904083 or 8612204083)		TDA7376B
AUDI	CHORUS AUZ1Z2	BLAUPUNKT	MC68HC705B32 (8925904134)		TDA7376B
AUDI	CHORUS M4 AUZ1Z2	BLAUPUNKT	MC68HC705B32 (8925904252)		TDA7376B
AUDI	CHORUS M4 AUZ1Z2	BLAUPUNKT	MC68HC705B32 (8925904784)		TDA7376B
AUDI	CHORUS AUZ2Z2	GRUNDIG	M306N0FGTFP	24C16
AUDI	CHORUS AUZ2Z2	GRUNDIG	M306N0FGTFP	24LC16	TDA7375A
AUDI	CHORUS AUZ2Z2	GRUNDIG	M306N0FGTFP	24LC16	TDA7375A
AUDI	CHORUS AUZ2Z2	GRUNDIG	M306N0FGTFP	24LC16	TDA7375A
AUDI	CHORUS CD AUZ1Z2	BLAUPUNKT	D703078	M95128 smd	TDA7566
AUDI	CHORUS CD AUZ1Z2	BLAUPUNKT	D703078	M95128 smd	TDA7566
AUDI	CONCERT CD AUZ2Z3	GRUNDIG	M306N0FGTFP	24LC16 smd
AUDI	CONCERT CD AUZ2Z3	GRUNDIG	M306NAMG102FP (AUDI C/C 03)	24LC16 smd	TDA7375A
AUDI	CONCERT CD AUZ2Z3	GRUNDIG	M306N0FGTFP	24LC16 smd	TDA7375A
AUDI	CONCERT CD AUZ2Z3	GRUNDIG	M306N0FGTFP	24LC16 smd	TDA7375A
AUDI	CONCERT CD AUZ2Z3	GRUNDIG		24LC16 smd	TDA7375A
AUDI	CONCERT CD AUZ2Z3	GRUNDIG		24LC16 smd	TDA7375A
AUDI	CONCERT AUZ5Z6	MATSUSHITA	YEAMH3318B02 6433318F16 A02 or YEAMH3318B03 6433318F16 A06	S220	AN7190NK
AUDI	CONCERT AUZ5Z6	MATSUSHITA	YEAMH3318B02 6433318F16 A02	S220	AN7190NK
AUDI	CONCERT AUZ5Z6	MATSUSHITA	C2BBGG000002 6433318F16 A10	S220	AN7190NK
AUDI	CONCERT AUZ5Z6	MATSUSHITA	YEAMH3318A02(03) 6433318F16 + D75004GK08	S220	AN7190NK
AUDI	CONCERT AUZ5Z3	MATSUSHITA	YEAMH3318A03 or 64333118F16	S220 or 59C22 smd	AN7190NK
AUDI	CONCERT AUZ5Z3	MATSUSHITA	6433318F16 + 75004GK13	S220	AN7190NK
AUDI	CONCERT AUZ5Z3	MATSUSHITA	YEMH3318A03 or (64333118F16)	S220	AN7190NK
AUDI	CONCERT AUZ5Z3	MATSUSHITA	64333118F16	S220	AN7190NK
AUDI	CONCERT AUZ1Z3	BLAUPUNKT	MC68HC705B32 (XC85535CFN 8925904083)		TDA7376B
AUDI	CONCERT II AUZ5Z6	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II AUZ5Z6	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II AUZ5Z6	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II AUZ5Z6	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT II AUZ5Z6	MATSUSHITA	SAFC161CI32F	S330 smd	TDA7376B
AUDI	CONCERT A8	BLAUPUNKT	MC68HC705B32 (8609500004 or XC85541CFN 8 925904134)		TDA7376B
AUDI	CONCERT A8	BLAUPUNKT	MC68HC705B32		TDA7376B
AUDI	CONCERT M4 AUZ1Z3	BLAUPUNKT	MC68HC705B32 (8925904252 or 904134)		TDA7376B
AUDI	CONCERT NAV AUZ1Z3	BLAUPUNKT	MC68HC05B32 (8609500001)
AUDI	CONCERT NAV AUZ1Z3	BLAUPUNKT	MC68HC705B32 (8925904134)		TDA7376B
AUDI	CONCERT PLUS AUZ1Z3	BLAUPUNKT	H11-99AC9NW (8925904448)	25C160 smd + M92256 smd	TDA7376B
AUDI	CONCERT PLUS A8 AUZ1Z3	BLAUPUNKT	H11-98DV2DW (8925904446)	25C160 smd + M92256 smd	TDA7376B
AUDI	CONCERT TT AUZ1Z3	BLAUPUNKT	MC68HC705B32 (8925904252)		TDA7376B
AUDI	CONCERT B7	BLAUPUNKT	D703078	M95128 smd	TDA7566
AUDI	CONCERT B7 EU AUZ1Z3	BLAUPUNKT	D70F3286YGJ	M95128 smd	TDA7566
AUDI	CONCERT A3 AUZ1Z3	BLAUPUNKT		M95128 smd
AUDI	DELTA II (M328) AUZ1Z4	BLAUPUNKT	HYBRID CERAMIC
AUDI	DELTA II (M330) AUZ1Z4	BLAUPUNKT	HYBRID CERAMIC (8638309032)		LM2005T x 2
AUDI	DELTA II BOSE (M487) AUZ1Z8	BLAUPUNKT	HYBRID CERAMIC (8638309032)
AUDI	DELTA II BOSE AUZ1Z8	BLAUPUNKT	HYBRID CERAMIC
AUDI	DELTA US (M329) AUZ1Z6	BLAUPUNKT	HYBRID CERAMIC		TDA2005 x 2
AUDI	DELTA US (M329) AUZ1Z6	BLAUPUNKT	HYBRID CERAMIC (8638309030)		TDA2005 x 2
AUDI	DELTA CC AUZ1Z4 wide panel	BLAUPUNKT	MC68HC05B16 (ZC99112CFN 8925901552) + MC68HC05B6 (ZC422293CFN 8925901551)		TDA7374
AUDI	DELTA CC AUZ1Z4 wide panel	BLAUPUNKT	MC68HC05B16 (ZC86551CFN 8925901069) + MC68HC05B6 (ZC422057CFN 8925901070)		TDA7374
AUDI	DELTA CC US AUZ1Z7 wide panel	BLAUPUNKT	MC68HC05B6 (8925901914) + B16(8925901978)		TDA7375
AUDI	DELTA CC US II AUZ1Z6 wide panel	BLAUPUNKT	MC68HC05B16 (ZC99344CFN 8925901978) + B8 (ZC422293CFN 8925901551)		TDA7375
AUDI	DELTA S AUZ1Z9	BLAUPUNKT	MC68HC05B16 (8925901552)
AUDI	DELTA S US	BLAUPUNKT	MC68HC05B16 (8925901978)
AUDI	GAMMA AUZ4Z3	HITACHI	D75104G593 + D17P19G	S2444	TA7281P x 2
AUDI	GAMMA (M327) AUZ4Z3	HITACHI	D75104G593 + D17P19G	S2444
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	MC68HC05B6 (ZC408637CFN 8925900419)		TDA7350 x 2
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	MC68HC05B8 (ZC400860CFN 8925901027)		TDA7350 x 2
AUDI	GAMMA CC AUZ1Z3	BLAUPUNKT	MC68HC05B6 (XC408599CFN 8925900385)		TDA7350 x 2
AUDI	GAMMA CC BOSE US AUZ1Z4	BLAUPUNKT	MC68HC05B6 (8925900330)		NO
AUDI	GAMMA CC BOSE US AUZ1Z7	BLAUPUNKT	MC68HC05B6 (ZC408639CFN 8925900330)		NO
AUDI	GAMMA CC BOSE EU AUZ1Z4	BLAUPUNKT	MC68HC05B6 (8925900318)		NO
AUDI	GAMMA CC AUZ1Z3 wide panel	BLAUPUNKT	MC68HC05B16 (8925901591)		TDA7376B
AUDI	GAMMA CC AUZ1Z3 wide panel	BLAUPUNKT	MC68HC05B16 (ZC99100CFN 8925901574)
AUDI	GAMMA CC AUZ1Z3 wide panel	BLAUPUNKT	MC68HC05B16 (8925901400)		TDA7376B
AUDI	GAMMA CC AUZ1Z6 wide panel	BLAUPUNKT	MC68HC05B16 (8925901591)		TDA7376B
AUDI	GAMMA CC AUZ2Z3 wide panel	GRUNDIG	MC68HC11L6 (Grundig 94)		TDA7376B
AUDI	GAMMA CC AUZ5Z3	MATSUSHITA	D78214GC523 or GC214 or GC453 + D17102G012	ST61907 smd or SM16 smd	TA8210AH
AUDI	GAMMA CC	MATSUSHITA
AUDI	GAMMA CD AUZ5Z5	MATSUSHITA	D75112GF580 + D1719G558	ST61907 smd	NO
AUDI	GAMMA CD AUZ5Z5	MATSUSHITA	D75112GF580 + D75108G680	NMC9306EN	NO
AUDI	GAMMA CD	MATSUSHITA
AUDI	GAMMA CD AUZ5Z5	MATSUSHITA	D75112GF580 + D78214GC532	ST61907 smd
AUDI	GAMMA CC US AUZ1Z6	BLAUPUNKT	MC68HC705B16
AUDI	GAMMA US AUZ1ZB	BLAUPUNKT	MC68HC05B6 (XC408608CFN 8925900326)
AUDI	GAMMA S AUZ1Z8 wide panel	BLAUPUNKT	MC68HC05B16 (ZC99133CFN 8925901591)
AUDI	GAMMA II	BLAUPUNKT	HYBRID CERAMIC (8638309255)		TDA2003 x 4
AUDI	GAMMA II A (M972) VWZ1Z3	BLAUPUNKT	HYBRID CERAMIC
AUDI	GAMMA III (M327) AUZ1Z3	BLAUPUNKT	HYBRID CERAMIC (8638309250 or 309034)		TDA2005 x 2
AUDI	GAMMA III (M327) AUZ1Z3	BLAUPUNKT	HYBRID CERAMIC (8638309034)		TDA2005 x 2
AUDI	GAMMA III (M327) AUZ1Z3	BLAUPUNKT	HYBRID CERAMIC (8638309033)		TDA2005 x 2
AUDI	GAMMA III	PHILIPS	C83CE558	24C16
AUDI	GAMMA 2	GRUNDIG	HYBRID PLASTIC	NMC9306
AUDI	GAMMA 2a VWZ2Z3	GRUNDIG	HYBRID PLASTIC	NMC9306
AUDI	GAMMA 3	GRUNDIG	HYBRID PLASTIC	NMC9306
AUDI	GAMMA 3a	GRUNDIG	HYBRID PLASTIC	NMC9306
AUDI	NAVIGATION AUZ1Z1	BLAUPUNKT	FIS		TDA7376B
AUDI	NAVIGATION AUZ1Z1	BLAUPUNKT	FIS		TDA7376B
AUDI	NAVIGATION AUZ1Z1	BLAUPUNKT	FIS		TDA7376B
AUDI	NAVIGATION AUZ1Z1	BLAUPUNKT	FIS		TDA7376B
AUDI	NAVIGATION A8 AUZ1Z1	BLAUPUNKT	FIS (8638348807A02)		TDA7376B
AUDI	NAVIGATION 2D AUZ1Z1	BLAUPUNKT	FIS (8638340559A02)		TDA7376B
AUDI	NAVIGATION 2D AUZ1Z1	BLAUPUNKT	FIS (8638340559A02)		TDA7376B
AUDI	NAVIGATION 2D AUZ1Z1	BLAUPUNKT	FIS		TDA7376B
AUDI	NAVIGATION 2D AUZ1Z1	BLAUPUNKT	FIS (8638340559A02)		TDA7376B
AUDI	NAVIGATION PLUS AUZ1ZY	BLAUPUNKT	FIS (8638348807A02)		TDA7376B
AUDI	NAVIGATION PLUS A6 AUZ1Z1	BLAUPUNKT	FIS (8638348807A02)		TDA7376B
AUDI	NAVIGATION PLUS A6 AUZ1Z1	BLAUPUNKT	FIS (8638340559A02)		TDA7376B
AUDI	NAVIGATION PLUS A8 AUZ1Z1	BLAUPUNKT	FIS		TDA7376B
AUDI	NAVIGATION PLUS A8 AUZ1Z1	BLAUPUNKT	FIS
AUDI	NAVIGATION PLUS AUZ1Z1	BLAUPUNKT	FIS (8638340559A02)		TDA7376B
AUDI	NAVIGATION PLUS RNS-E	AISIN AW	D70F3079YGC	24C16 smd	TDA7376B
AUDI	NAVIGATION PLUS RNS-E	AISIN AW	D70F3079YGC	24C16 smd
AUDI	NAVIGATION LOWLINE AUZ1Z1	BLAUPUNKT	D70F3089YGJ + STA2052	M95640 smd	TDA7564
AUDI	NAVIGATION LOWLINE AUZ1Z1	BLAUPUNKT	D70F3089YGJ + STA2052	M95640 smd	TDA7564
AUDI	NAVIGATION LOWLINE TT AUZ1Z1	BLAUPUNKT	D70F3089YGJ + STA2052	M95640 smd + M25P10A smd	TDA7564
AUDI	NAVIGATION LOWLINE AUZ1Z1	BLAUPUNKT	D70F3089YGJ + STA2052	M95640 smd + M25P10A smd	TDA7564
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA	HD64F3048F16	S220	AN7190NK
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA	HD64F3048F16	S220	AN7190NK
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA		S220	AN7190NK
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA	HD64F3048F16	S220	AN7190NK
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA	C2CBKJ000009	S220	AN7190NK
AUDI	SYMPHONY AUZ5Z4	MATSUSHITA	C2CBKJ000009	S220	AN7190NK
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CI32F-16F	S220	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CI32F-16F	S220	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CI32F-16F	S220	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CI32F-16F	S330	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CI32F-16F	S220	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CI32F-16F	S220	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CI32F-16F	S220	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CS32RF C2CBKH000037	93C56 smd	TDA7376B
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	SAFC161CS32RF	93C56 smd
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	M30833FJGP307G1A5	S330
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	M30833FJGP348	S330	TDA7375A
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	M30833FJGP	S330	TDA7375A
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	M30833FJGP 337H1A1	S330	TDA7375A
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA	M30833FJGP 525J1A2	S330	TDA7375A
AUDI	SYMPHONY II AUZ5Z4	MATSUSHITA		S330	TDA7375A
AUDI	SYMPHONY A3 6CD MP3	BLAUPUNKT	D703078	M95128 smd	TDA7566
AUDI	SYMPHONY B7 6CD MP3 AUZ1Z4	BLAUPUNKT	D70F3286YGJ V0850ES/SJ2	M95128 smd	TDA7566
AUDI	SYMPHONY B7 6CD MP3	BLAUPUNKT	D703078	M95128 smd	TDA7566
AUDI	WIESBADEN AUZ5Z7	MATSUSHITA	D1713AG600	NMC9306
AUDI	WIESBADEN	MATSUSHITA	D1723AG	NMC9306	TA8201AK x 2



	AUDI Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install. AUDI Car radio wiring diagrams. car radio wire diagram stereo wiring diagram gm radio wiring diagram. Car stereo wiring diagrams car radio wiring car radio wiring colors car radio wire car radio connections wiring diagram car radio wire colours. AUDI auto radio wiring diagrams install car radio. How to install car radio autoradio wiring harness stereo installation. How to install car radio wires. Car radio install car wiring diagrams wiring harness pinout connector diagram. Car stereo radio wiring diagram. How to wire a car radio wiring diagram for car stereo. Car stereo wiring diagram radio installation head unit. Car radio wire colors car audio wiring free radio wiring diagrams. Radio diagram wiring car radio car radio wiring diagrams. Free car radio wires stock diagram. Car radio wiring colour codes car radio speakers.

Audi Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install
