Becker
Car Radio Stereo Audio Wiring
Diagram Autoradio connector wire installation
schematic schema esquema de conexiones stecker konektor
connecteur
cable shema car stereo harness wire speaker pinout connectors
power how to install
|
|
| |
|
|
BECKER AVUS,
AVUS2000, GRAND PRIX
|
|
A.A.-Power Antenna Turn On |
|
1 -+12 Volt Battery Wire |
|
2 -Dash Light Dimmer Wire |
|
3 -+12 VOLT IGNITION WIRE |
|
4 -Gnd |
BECKER GRAND PRIX CD
|
 |
A |
B |
C |
|
1-Spekaer
Control |
1-Speaker
RR+ |
1-Line
out LR |
|
3-Tel
mute |
2-Speaker
RR- |
2-Line
out RR |
|
4-+12
Volt Battery Wire |
3-Speaker
RF+ |
3-Gnd-
Line out |
|
5-Power
Antenna Turn On |
4-Speaker
RF- |
4-Line
out LF |
|
7-+12
VOLT IGNITION WIRE |
5-Speaker
LF+ |
5-Line
out RF |
|
8-Gnd |
6-Speaker
LF- |
6-Control |
|
- |
7-Speaker
LR+ |
7-20-Datalink |
|
- |
8-Speaker
LR- |
- |
PORSCHE CR-31 by Becker (Be2365)
.gif)
BECKER BE-3301
Becker
:Grand Prix CD, Traffic Pro (BE-4720)
|
A: Power |
B: Speakers |
C: Changer / special |
| 1. GAL-volume
control (*) |
1. RR |
1.Line Out LR |
| 2. Reverse
lamp (navi) |
2. RR - |
2. Line
Out RR |
| 3. Mute
your phone (phone mute) |
3. RF |
3. ground
line outputs |
| 4. Backup |
4. RF
- |
4. LF
Line Out |
| 5. Automatic
antenna control |
5. LF |
5. linear
output RF |
| 6. Illumination |
6. LF
- |
6. Subwoofer
line out |
| 7. Power
supply (+12 V) |
7. LR |
7. CDW
switching control |
| 8. Ground
(-) |
8. LR
- |
8. The
power is not disconnected |
|
(*) Volume
control depending
on thespeed |
R - right (right), L - Left
(left), second letter indicates the location of R
- Rear (rear) F - Front (front) - Means the negative speaker
terminal Note: Do not connect (-) with the mass of the vehicle
and May damage the amplifier.
|
9. ground |
| 10. CDW
Date |
| 11. CDW
Clock |
| 12. CDW
Reset |
| 13. NF-Phone |
| 14. NF-Phone |
| 15. TXD
BUS Service |
| 16. Service
BUS RXD |
| 17. The
power is not disconnected |
| 18. Weight
of line inputs |
| 19. CDW
input L |
| 20. CDW
input R |
| 7 - 20 changer (datalink) |
Signals
marked with
CDW
is used to
communicate with the
changer.
probably
noticed
that they are very
similar to those
which
are
in the new
Sony
changers
(Uni-link).
This is true
because
Becker
radio
after changing
firmware
(not
always necessary to do
so) control
Sony
changers.
Only that
if
a lot of features
does not work
too well
(eg,
volume control
and
tone
correction,
depending on speed).
Another
interesting feature
is the existence of
the radio
piece
for
hands-free
mobile phone.
NF-phone
connectors
are
audio
inputs
from the speakerphone
(tel
mute
signal
activation).
And one
not
encountered
elsewhere
namely
the
connector
service.
It has a
meaning
similar
to the equivalent
in mobile phones.
You can modify the
soft
contained
on the radio.
Interesting
pin
connector
for connecting
a
flash
backwards
(only
in navigation).
This provides
navigation
information,
whether
we move
backwards
or
forwards,
and completes the
signal from the GPS
antenna and
signal
speed-dependent volume control.
(GAL).
Becker
Traffic Star
|
A: Power |
B: Speakers |
C: Changer / special |
| 1. GAL-volume
control (*) |
1. RR |
1. Line
Out LR |
| 2. Reverse
lamp (navi) |
2. RR
- |
2. Line
Out RR |
| 3. Mute
your phone (phone mute) |
3. RF |
3. Ground
line outputs |
| 4. maintain |
4. RF
- |
4. LF
Line Out |
| 5. automatic
antenna control |
5. LF |
5. linear
output RF |
| 6. - |
6. LF
- |
6. control
amplifier |
| 7. power
supply (+12 V) |
7. LR |
7. CDW
switching control |
| 8. weight
/ gps-gnd/tel-gnd |
8. LR
- |
8. power
is not disconnected |
|
(*) Volume
control depending
on thespeed |
R
- right (right), L - Left (left), second letter indicates the
location of R - Rear (rear) F - Front (front) -
Means the negative speaker terminal Note: Do not connect (-)
with the mass of the vehicle and May damage the amplifier.
|
9. Ground |
| 10. CDW
Date |
| 11. CDW
Clock |
| 12. CDW
Reset |
| 13. TXD2
(Phone RXD) |
| 14. RXD2
(Phone TXD) |
| 15. TXD1
(GPS RXD blue) PM |
| 16. RXD1
(GPS TXD White) PM-BUS |
| 17. power
is not disconnected |
| 18. Ground
line inputs |
| 19. CDW
input L |
| 20. CDW
input R |
| 7 - 20 changer (datalink) |
The first
navigation
1DIN.
A few
joints
as you can see
is
just
for navigation.
In addition, the
telephone interface.

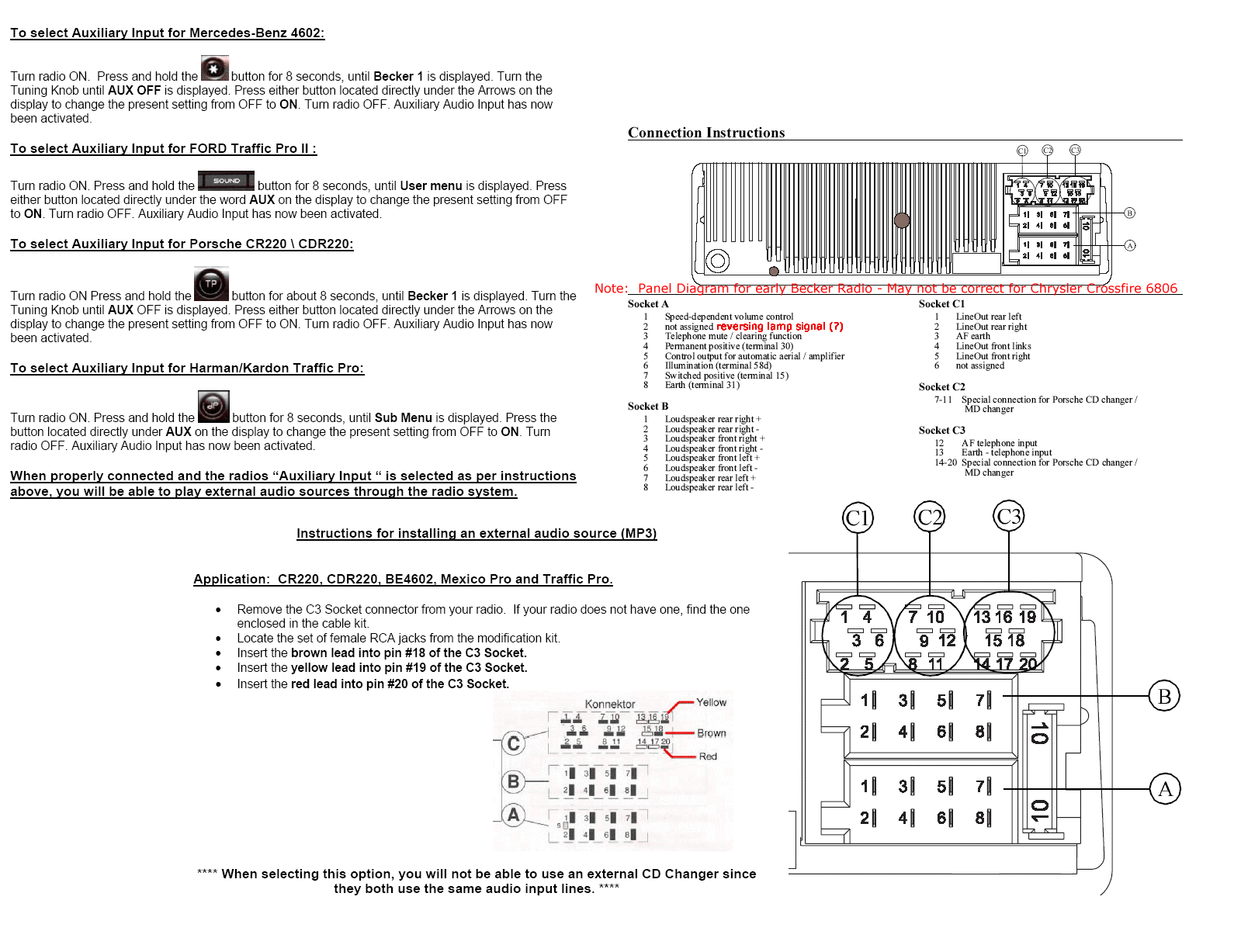

Becker CR220 CDR220 BE4602 Mexico Pro Traffic
