Chrysler Voyager,
Saratoga, Le Baron, Neon, Stratus, Vision, Grand Voyager
|
 |
1-+12
VOLT IGNITION WIRE |
12-Speaker
RF- |
|
2-+12
VOLT BATTERY WIRE |
13-Speaker
LF+ |
|
3-Dash
Light Dimmer Wire |
14-Speaker
LF- |
|
4-Power
Antenna Turn On |
15-Speaker
LR+ |
|
9-Speaker
RR+ |
16-Speaker
LR- |
|
10-Speaker
RR- |
GND-обод
разьема |
|
11-Speaker
RF+ |
- |
Chrysler 2569488- Jeep
Grand Cherokee
|
1-BAT
+ |
8-Speaker
RR- |
|
2-ACC
+ |
9-Speaker
LR- |
|
3-iLL |
10-Speaker
RF+ |
|
4-PARK |
11-Speaker
LF+ |
|
5-Speaker
RF- |
12-Speaker
RR+ |
|
6-Speaker
LF- |
13-Speaker
LR+ |
|
7-MUTE |
14-Питание
ANT |
|
Общий провод находится на
корпусе между разъёмами |
Chrysler - Jeep,
Renault
|
 |
1-+12
VOLT IGNITION WIRE |
12-Speaker
RF- |
|
3-+12
VOLT BATTERY WIRE |
13-Speaker
LF+ |
|
4-Dash
Light Dimmer Wire |
14-Speaker
LF- |
|
5-Power
Antenna Turn On |
15-Speaker
LR+ |
|
9-Speaker
RR+ |
16-Speaker
LR- |
|
10-Speaker
RR- |
GND-обод
разьема |
|
11-Speaker
RF+ |
- |
Chrysler Voyager, Saratoga, Le
Baron, Neon, Stratus, Vision, Grand Voyager

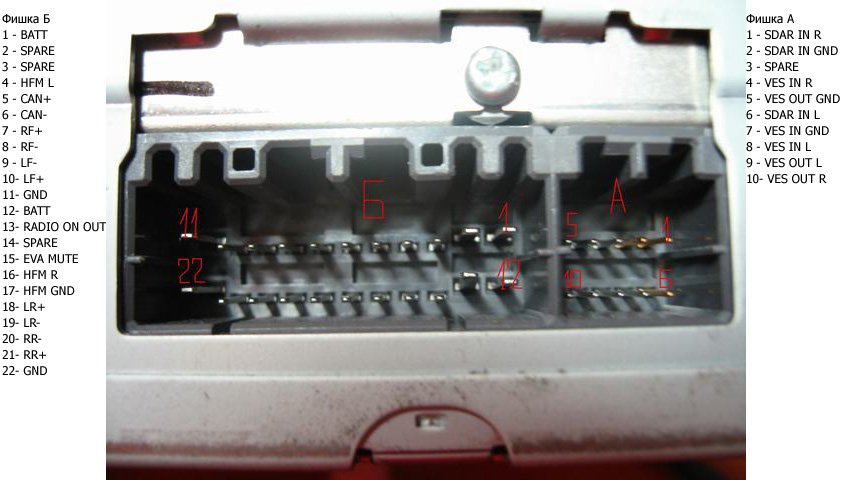

Chrysler - PU-9549A
JEEP
GRANG CHEROKEE
1999 - 2004
Connector
radio.
22
pin
cable
Connector
amplifier
"JEEP GRANG
CHEROKEE
1999 - 2004
Plug
the amplifier.
Connector
amplifier
"JEEP GRANG
CHEROKEE
1999 - 2004
Plug
the amplifier.
12
pin
cable
to connect
the amplifier,
a view from the
contacts
18
pin
cable
to connect
the amplifier,
a view from the
contacts
CHRYSLER P05064066AE
Chrysler P0509456AE
Chrysler P56038555AK
Chrysler RAH
Chrysler RET Alpine
Chrysler P05064300AB

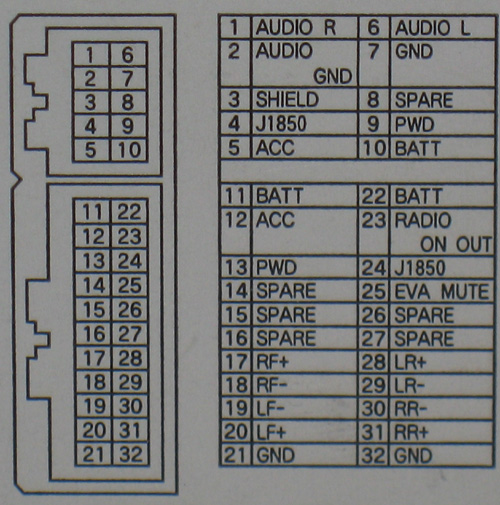

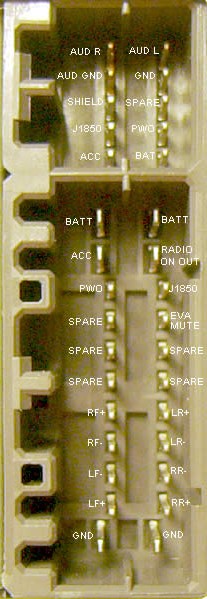

'02-'04 Chrysler 300M
'02-'04 Chrysler Concorde
'02-'05 Chrysler PT Cruiser
'02-'05 Chrysler Sebring (sedan and convertible)
'02-'05 Chrysler Town & Country
'02-'03 Chrysler Voyager
Chrysler 300C 2006
| |

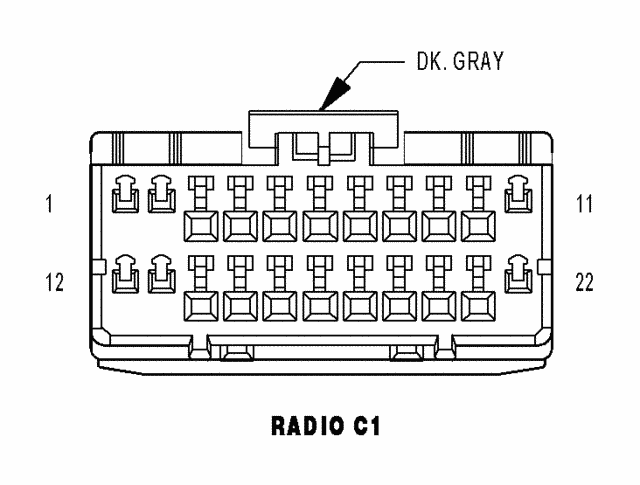

CAV |
CIRCUIT |
FUNCTION |
| |
1 |
A300 16GY/LG |
FUSED B(+) (I.O.D.) |
| |
2 |
- |
- |
| |
3 |
- |
- |
| |
4 |
X703 22DG/OR (HANDS FREE) |
LEFT AUDIO OUTPUT |
| |
5 |
D55 20WT/OR |
CAN B BUS (+) |
| |
6 |
D54 20WT |
CAN B BUS (-) |
| |
7 |
X202 18DG/VT (LOWLINE/MIDLINE I) |
RIGHT FRONT DOOR SPEAKER (+) |
| |
8 |
X292 18DG/YL (LOWLINE/MIDLINE I) |
RIGHT FRONT DOOR SPEAKER (-) |
| |
9 |
X291 18GY/YL (LOWLINE/MIDLINE I) |
LEFT FRONT DOOR SPEAKER (-) |
| |
10 |
X201 18GY/VT (LOWLINE/MIDLINE I) |
LEFT FRONT DOOR SPEAKER (+) |
| |
11 |
Z909 18BK/LG |
GROUND |
| |
12 |
A300 16GY/LG |
FUSED B(+) (I.O.D.) |
| |
13 |
- |
- |
| |
14 |
- |
- |
| |
15 |
- |
- |
| |
16 |
X704 22DG/YL (HANDS FREE) |
RIGHT AUDIO OUTPUT |
| |
17 |
X795 20DG (HANDS FREE) |
COMMON AUDIO OUTPUT |
| |
18 |
X303 18DG/TN (LOWLINE/MIDLINE I) |
LEFT REAR SPEAKER (+) |
| |
18 |
X51 18DG/DB (MIDLINE II/HIGHLINE) |
RADIO LEFT AUDIO (+) |
| |
19 |
X393 18DG/GY (LOWLINE/MIDLINE I) |
LEFT REAR SPEAKER (-) |
| |
19 |
X57 18DG/OR (MIDLINE II/HIGHLINE) |
RADIO LEFT AUDIO (-) |
| |
20 |
X394 18YL/GY (LOWLINE/MIDLINE I) |
RIGHT REAR SPEAKER (-) |
| |
20 |
X58 18GY/OR (MIDLINE II/HIGHLINE) |
RADIO RIGHT AUDIO (-) |
| |
21 |
X304 18DG/BR (LOWLINE/MIDLINE I) |
RIGHT REAR SPEAKER (+) |
| |
21 |
X52 18GY/DB (MIDLINE II/HIGHLINE) |
RADIO RIGHT AUDIO (+) |
| |
22 |
Z909 18BK/LG |
GROUND |
| |

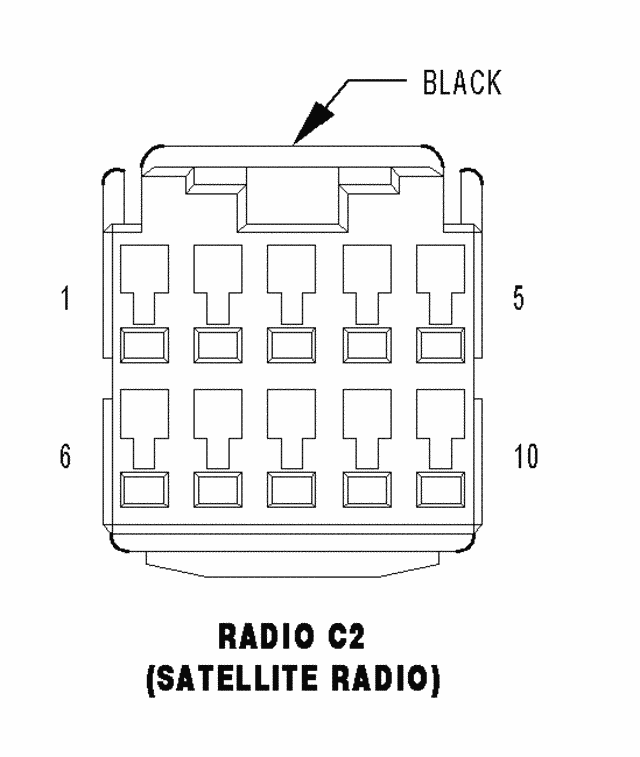

CAV |
CIRCUIT |
FUNCTION |
| |
1 |
X16 20DG/YL |
AUDIO SIGNAL RIGHT (+) |
| |
2 |
X917 20DG |
AUDIO SIGNAL COMMON |
| |
3 |
- |
- |
| |
4 |
X510 20DG/LB |
DVD AUDIO RIGHT (+) |
| |
5 |
X926 20GY/OR |
AUX AUDIO COMMON |
| |
6 |
X17 20DG/OR |
AUDIO SIGNAL LEFT (+) |
| |
7 |
X910 20GY/DG |
DVD AUDIO COMMON |
| |
8 |
X511 20GY/LG |
DVD AUDIO LEFT (+) |
| |
9 |
X521 20GY/LB |
AUX AUDIO LEFT (+) |
| |
10 |
X522 20GY/DB |
AUX AUDIO RIGHT (+) |
| |
|
Car radio |
Model autoradio |
Manufacturer |
MCU |
EEPROM |
IC Amplifier |
CD changer |
Car |
|
CHRYSLER |
56006932 |
|
|
|
|
|
|
|
CHRYSLER |
850 RDS |
|
ATR282XR-136 |
24C04 |
|
|
|
|
CHRYSLER |
P04671088 |
ALPINE |
51T65123W03-375 |
X24C00 smd |
|
|
|
|
CHRYSLER |
P04704345-G |
ALPINE |
51T65123W03 |
X24C00 smd |
|
|
|
|
CHRYSLER |
P04704345-F |
ALPINE |
51T65123W02 |
X24C00 smd |
|
|
|
|
CHRYSLER |
P04704383AD USA
|
MITSUBISHI |
|
|
|
|
|
|
CHRYSLER |
P04858513AF |
ALPINE |
51T95264W02-097 + 51T95288W02-096 |
24C01 smd +
24C01 smd |
2xTDA8563AQ |
|
|
|
CHRYSLER |
P04858513AG-A |
ALPINE |
51T95264W03 |
ST24C016 smd |
|
|
|
|
CHRYSLER |
P04858513AK-A |
ALPINE |
51T35078W01
+51T35077Y01 |
24C01 smd +
24C01 smd |
2xTDA8563AQ |
|
|
|
CHRYSLER |
P04858526 |
ALPINE |
|
|
|
|
|
|
CHRYSLER |
P04858540AE |
MITSUBISHI |
D75518GF 380 |
|
|
|
|
|
CHRYSLER |
P04858543AC-A |
ALPINE |
51T35686Y01 |
24C01 smd +
24C01 smd |
|
|
|
|
CHRYSLER |
P04858556 |
ALPINE |
SC433377CB |
|
|
|
|
|
CHRYSLER |
P04859504AD-A |
ALPINE |
51T95288W03-096
+ 51T95264W02-097 |
24C01 smd +
24C01 smd |
2xTDA8563AQ |
|
|
|
CHRYSLER |
P05091601AE |
|
SAA7705H/303 +
51T65259Y01 |
24C01 smd |
|
|
|
|
CHRYSLER |
P05269484 |
ALPINE |
51T65123W03 |
X24C00 smd |
2xTA8233H |
|
|
|
CHRYSLER |
P05269485 |
ALPINE |
51T65123W01 |
X24C00 smd |
2xTA8233H |
|
|
|
CHRYSLER |
P05269486 |
ALPINE |
51T65123W03 |
X24C00 smd |
2xTA8233H |
|
|
|
CHRYSLER |
P4704392 |
|
|
|
|
|
|
|
CHRYSLER |
P5269482 |
|
|
|
|
|
|
|
CHRYSLER |
P5269484AB |
ALPINE |
51T65123W02
|
X24C00 smd |
2xTA8233H |
|
|
|
CHRYSLER |
P5269485 |
ALPINE |
51T65123W01 |
X24C00 smd |
|
|
|
|
CHRYSLER |
P5269486 |
ALPINE |
51T65123W03 |
X24C00 smd |
2xTA8233H |
|
|
|
CHRYSLER |
P5269488 |
ALPINE |
51T65123W02 +
51T45258W02 |
X24C00 smd |
|
|
|
|
CHRYSLER |
P5269495 |
ALPINE |
D17003AGF 631 |
|
|
|
|
|
CHRYSLER |
P56006932 |
|
|
|
|
|
|
|
CHRYSLER |
P56038585 |
|
|
24C16 |
|
|
|
|
CHRYSLER |
PU-9479A |
CLARION |
051-1141-02 |
S24H30 |
MC13306T3S |
|
|
|
CHRYSLER |
PU-9540 |
CLARION |
|
|
|
|
|
|
CHRYSLER |
PU-9542B |
CLARION |
D17003 AGF 631 |
|
|
|
|
|
CHRYSLER |
PU-9545 |
CLARION |
|
|
|
|
|
|
CHRYSLER |
PU-9549A |
CLARION |
|
|
|
|
|
|
CHRYSLER |
PU-9639 |
CLARION |
D17006 AGF 611 |
S2914 |
|
|
|
|
CHRYSLER |
RADIO
NAVIGATION |
BECKER |
|
|
|
|
|
|
CHRYSLER |
|
BECKER |
CAN-BUS |
24C04 smd |
|
|
|
|
|
| |
|
CHRYSLER |
P4704345-F |
ALPINE |
51T65123W02 or W03 + 51T45258W02 |
X24C00 smd |
TA8233H x 2 |
|
CHRYSLER |
P04671088 |
ALPINE |
51T65123W03-375 |
X24C00 smd |
|
|
CHRYSLER |
P04704345-G |
ALPINE |
51T65123W03 + 51T45258W02 |
X24C00 smd |
TA8233H x 2 |
|
CHRYSLER |
P04704378AC |
ALPINE |
|
|
|
|
CHRYSLER |
P04704383AD |
MITSUBISHI |
D75517GF423 |
24C02 |
TA8221 x 2 |
|
CHRYSLER |
P04858513AG-A |
ALPINE |
51T95264W03 102 + 51T95288W03 105 |
24C01 smd + 24C01 smd |
TDA8563AQ x 2 |
|
CHRYSLER |
P04858513AK-A |
ALPINE |
51T35078W01 + 51T35077Y01 |
24C01 smd + 24C01 smd |
TDA8563AQ x 2 |
|
CHRYSLER |
P04858513AI-A |
ALPINE |
51T95288W05 + 51T95264W05 |
24C01 smd + 24C01 smd |
TDA8563AQ x 2 |
|
CHRYSLER |
P04858513AF |
ALPINE |
51T95288W02-096 + 51T95264W02-097 |
24C01 smd + 24C01 smd |
TDA8563AQ x 2 |
|
CHRYSLER |
P04858518 |
MITSUBISHI |
|
24C02 |
|
|
CHRYSLER |
P04858526 |
ALPINE |
|
|
|
|
CHRYSLER |
P04858540AE-B |
MITSUBISHI |
|
|
|
|
CHRYSLER |
P04858543AC-A |
ALPINE |
51T35686Y01 |
24C01 smd + 24C01 smd |
|
CHRYSLER |
P04858543AD-A |
ALPINE |
51T35686Y03 + 51T15582Y03 126 |
24C01 smd + 24C01 smd |
TDA7454 |
|
CHRYSLER |
P04858543AE-A |
ALPINE |
|
24C01 smd + 24C01 smd |
|
CHRYSLER |
P04858543AG-A |
ALPINE |
51T35686Y03 + 51T15582Y03 |
24C01 smd + 24C01 smd |
|
CHRYSLER |
P04858583AE |
|
SC433378CB 04827915AA |
24C02 |
04231192AA |
|
CHRYSLER |
P04858556AD |
|
MC68HC705C8 (SC433377CB) |
|
|
|
CHRYSLER |
P04858584AF |
ALPINE |
|
|
|
|
CHRYSLER |
P04859504AB-A |
ALPINE |
51T95288W03-096 + 51T95264W02-097 |
24C01 smd + 24C01 smd |
TDA8563AQ x 2 |
|
CHRYSLER |
P04859504AD-A |
ALPINE |
51T95288W03-096 + 51T95264W02-097 |
24C01 smd + 24C01 smd |
TDA8563AQ x 2 |
|
CHRYSLER |
P04859504AD-B |
ALPINE |
|
24C01 smd + 24C01 smd |
TDA8563AQ x 2 |
|
CHRYSLER |
P05064354AI |
|
M9S12DJ256B |
|
04831866AB |
|
CHRYSLER |
P05091610AB-A |
|
M30625MGA-570GP |
24C64 smd |
|
|
CHRYSLER |
P05091610AC |
|
|
24C64 smd |
|
|
CHRYSLER |
P05091650AB |
MITSUBISHI |
MC9S12DJ256B |
|
|
|
CHRYSLER |
P05269484AB |
ALPINE |
51T65123W03 |
X24C00 smd |
TA8233H x 2 |
|
CHRYSLER |
P05269486 |
ALPINE |
51T65123W03 |
X24C00 smd |
TA8233H x 2 |
|
CHRYSLER |
P5269484 |
ALPINE |
51T65123W03 |
X24C00 smd |
TA8233H x 2 |
|
CHRYSLER |
P5269485 |
ALPINE |
51T65123W01 |
X24C00 smd |
TA8233H x 2 |
|
CHRYSLER |
P5269488 |
ALPINE |
51T65123W02 |
X24C00 smd |
|
|
CHRYSLER |
P5269495 |
CLARION |
D17003AGF631 |
|
|
|
CHRYSLER |
P56006932 |
|
|
|
|
|
CHRYSLER |
P56038518AG |
|
|
|
|
|
CHRYSLER |
P56038518AJ |
|
MC68HC908AS60 |
|
TDA1564J x 2 |
|
CHRYSLER |
P56038567AH |
|
MC68HC908AS60 |
|
TDA1564J x 2 |
|
CHRYSLER |
P56038583AG |
|
|
|
|
|
CHRYSLER |
RAD P05091601AE |
ALPINE |
51T65259Y01 MB90547C409 |
24C16 smd |
|
|
CHRYSLER |
RAD P55064385AD |
ALPINE |
51T55516Y01 MB90547C391 |
24C16 smd |
|
|
CHRYSLER |
RAD P05064385AF |
ALPINE |
51T55546Y01 MB90574C |
24C16 smd |
TA8261AH |
|
CHRYSLER |
RAD P05064385AE |
ALPINE |
51T55546Y01 MB90574C391 |
24C16 smd |
TA8261AH |
|
CHRYSLER |
RAD P56038585AL |
ALPINE |
MB90F574A |
24C16 smd |
TA8261AH |
|
CHRYSLER |
P56038585AO |
ALPINE |
MB90F574A |
24C16 smd |
|
|
CHRYSLER |
P05064066AE |
MITSUBISHI |
MC9S12DJ256B |
|
TDA7563 |
|
CHRYSLER |
RAK P050640032AJ |
|
|
|
|
|
CHRYSLER |
RAQ P05064053 |
|
|
24C16 smd |
|
|
CHRYSLER |
RAQ P05064072AD 6CD MP3 |
|
|
|
|
|
CHRYSLER |
RAQ P05064010AK 6CD MP3 |
MITSUBISHI |
MC9S12DG256B |
|
|
|
CHRYSLER |
RAQ P05064010AL 6CD MP3 |
|
|
|
|
|
CHRYSLER |
RAH P05094564AB MP3 |
MITSUBISHI |
M30625MGA-585GP |
93LC46 smd |
TA8261AH |
|
CHRYSLER |
RAR P05064066AD 6CD MP3 |
MITSUBISHI |
MC9S12DJ256B |
|
|
|
CHRYSLER |
RAR P05064363AA 6CD MP3 |
MITSUBISHI |
MC9S12DJ256B |
|
|
|
CHRYSLER |
RB1 NAV DVD P56038629AD |
ALPINE |
51T35297Y01 |
24C16 smd + 24C01 smd |
04831866AB |
|
CHRYSLER |
RB3 NAV P56038643AD |
BECKER |
SAF-C161JC-32FF CE |
24C64 smd |
TDA7454 |
|
CHRYSLER |
RB4 NAV P56043286AE |
BECKER |
|
|
|
|
CHRYSLER |
RBB P56038588AK |
|
MC68HC908AS60 |
|
TDA1564J x 2 |
|
CHRYSLER |
RBK P05091888AA |
|
MC9S12DG256B |
|
|
|
CHRYSLER |
RBP P05064125AD |
ALPINE |
51T55583Y01 |
24C16 smd |
TA8261AH |
|
CHRYSLER |
RBP P05094468AB |
ALPINE |
51T65086Y01 MB90574C 411 |
24C16 smd |
TA8261AH |
|
CHRYSLER |
RBP P05094468AC |
ALPINE |
|
|
|
|
CHRYSLER |
RBP P56038586AG |
ALPINE |
MB90F574A |
24C16 smd |
|
|
CHRYSLER |
P56038586AH |
|
MB90F574A 350 |
24C16 smd |
|
|
CHRYSLER |
RBQ P05064038AA 6CD |
|
|
|
|
|
CHRYSLER |
RBQ P05091979AF 6CD |
|
|
|
|
|
CHRYSLER |
REC NAV MP3 6CD DVD P56038646AL |
ALPINE |
D70F3089YGJ |
24C16 smd |
|
|
CHRYSLER |
REC NAV MP3 6CD DVD P56038646AJ |
ALPINE |
|
24C256 smd |
|
|
CHRYSLER |
REF P05091710AE |
|
MC9S12DG256B |
|
|
|
CHRYSLER |
REJ NAV MP3 6CD DVD P05091508AE |
ALPINE |
D70F3089YGJ |
24C01 smd + 24C256 smd |
|
CHRYSLER |
RET 6CD/DVD 05064055AK |
ALPINE |
D70F3349GJ |
24C16 smd |
|
|
CHRYSLER |
REZ MP3 DVD P05064247AK |
HARMAN/BECKER |
|
|
TDA8559J |
|
CHRYSLER |
PU-9479A |
CLARION |
051-1141-02 |
S24H30 |
MC13306T3S |
|
CHRYSLER |
PU-9540 |
CLARION |
|
|
|
|
CHRYSLER |
PU-9542B |
CLARION |
D17003AGF606 or AGF631 |
|
|
|
CHRYSLER |
PU-9545 |
CLARION |
|
|
|
|
CHRYSLER |
PU-9549A 56006833 |
CLARION |
D1723-585 |
|
TA8210 |
|
CHRYSLER |
PU-9607A |
CLARION |
D75312GF145 |
93C06 |
|
|
CHRYSLER |
PU-9639 |
CLARION |
D17006AGF611 |
S2914 smd |
|
|
CHRYSLER |
850 RDS |
|
ATR282XR-136 |
24C04 |
|
|
CHRYSLER |
ZH 29 |
HARMAN/BECKER |
ST10F280-B3 |
24LC16 smd |
|
|
CHRYSLER |
RADIO NAVIGATION |
BECKER |
|
|
|
|
|
| |
CHRYSLER Car Radio Stereo Audio Wiring Diagram Autoradio connector
wire installation schematic schema esquema de conexiones stecker
konektor connecteur cable shema car stereo harness wire speaker
pinout connectors power how to install.
CHRYSLER Car radio wiring diagrams. car
radio wire diagram stereo wiring diagram gm radio
wiring diagram. Car stereo wiring diagrams car radio wiring car radio
wiring colors car radio wire car radio connections wiring diagram
car radio wire colours.
CHRYSLER
auto radio wiring diagrams install car radio. How to install car radio
autoradio wiring harness stereo installation. How to install car radio wires.
Car radio
install car wiring diagrams wiring harness pinout connector diagram.
Car stereo radio
wiring diagram. How to wire a car radio wiring diagram for car stereo.
Car stereo wiring diagram radio installation head unit. Car radio
wire colors car audio wiring free radio wiring diagrams. Radio
diagram wiring car radio car radio wiring diagrams. Free car radio
wires stock diagram. Car radio wiring colour codes car
radio speakers. |
|
| |
|
|
|
