CLARION Car Radio Stereo Audio Wiring Diagram Autoradio connector wire installation schematic schema esquema de conexiones stecker konektor connecteur cable shema car stereo harness wire speaker pinout connectors power how to install










CLARION CXR401

Clarion CXR401

1-Speaker RF-

9-Speaker LF-

2-Speaker RF+

10-Speaker LF+

3-Speaker RR-

11-Speaker LR-

4-Speaker RR+

12-Speaker LR+

5-Power Antenna Turn On (?)

13-GND

6-+12 VOLT IGNITION WIRE

14-+12 VOLT BATTERY WIRE

8-Dash Light Dimmer Wire (?)

-







CLARION RAX660DZ

Clarion RAX660Dz

1- Speaker LR+

9- Speaker LR-

2- Speaker LF-

10 -   ---

3- Speaker LF+

11-+12 VOLT IGNITION WIRE

4- Speaker RF+

12 -   ---

5- Speaker RF-

13-Power Antenna Turn On

6- Speaker RR+

14-Dash Light Dimmer Wire

7- Speaker RR-

15-+12 VOLT BATTERY WIRE

8- +12V

16-GND







CLARION FINISH LINE 742 PT9653V





Clarion PU-2471   PU-2472    PU-2473







CLARION CRH71 PE-9411A







CLARION RAX 531D





CLARION PU-9150-B





CLARION ADX-5355
CLARION ARX-6370





CLARION DRX-7575Z

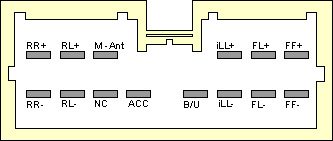

CLARION 15120
Mitsubishi Motors model: C602





CLARION PU-1666A-A (VW)





CLARION PT-9672L











 Clarion PF-3302B-A



Land Rover Clarion PU-9836A stereo wiring connector







Car radio

Model autoradio

Manufacturer

MCU

EEPROM

IC Amplifier

CD changer

 Car

CLARION

940HP PE-9097A

CLARION

CLARION 051-0794-00









CLARION

949HP PE-9096A

CLARION

CLARION 051-0794-00   D1714GF









CLARION

950HX PE-9095A

CLARION

CLARION 051-0794-00









CLARION

959HX PE-9094A

CLARION

CLARION 051-0794-00









CLARION

960HP PE-9093B

CLARION

CLARION 051-0794-00









CLARION

960HX

CLARION











CLARION

969HX PE-9092A

CLARION

CLARION 051-0794-00









CLARION

971HX PE-9187A

CLARION

CLARION 051-1141-01

S2430







CLARION

985MX

CLARION











CLARION

986MX

CLARION

CLARION 051-0849-21

NMC9306







CLARION

ADX5555RZ

CLARION



93C46 smd







CLARION

ADX5655RZ

CLARION

M30624MGD28FP    052-3914-01

93C46







CLARION

ADX5666RZ

CLARION

M30624MGD28FP  052-3914-01

93C46







CLARION

CDC6000

CLARION



S24H30







CLARION

CDC6300

CLARION

D75312QF 115

S2914 smd







CLARION

CDC6700R

CLARION

D75116GFE62

S2914 smd







CLARION

CDC7000

CLARION











CLARION

CRH60

CLARION



S24H30







CLARION

CRH61 PE-9413A

CLARION

CLARION 051-1141-02

S2430







CLARION

CRH70 PE-9412A

CLARION

CLARION 051-1141-02

S2430







CLARION

CRH71

CLARION

CLARION 051-1141-02

S24H30







CLARION

CRH81R PE-9439A

CLARION

D75328GC115

93C46







CLARION

CRM57R

CLARION

D17006

134T46E

 93C46rotated







CLARION

CRX111R PE-9436A

CLARION



93C46 smd







CLARION

CRX115R

CLARION



93C06







CLARION

CRX601R  PE-9868A

CLARION

D17006AGF622

93C46 smd

HA13151





CLARION

CRX62

CLARION



S24H30







CLARION

CRX63R

CLARION











CLARION

CRX67R

CLARION











CLARION

CRX71

CLARION



S24H30







CLARION

CRX72

CLARION

CLARION 051-1141-02/8236

S2430







CLARION

CRX73    PE-9607

CLARION

D753126F145

93C06







CLARION

CRX74

CLARION

D75...

93C06







CLARION

CRX75R PE-9639A

CLARION

D17006AGF 611

S2914







CLARION

CRX77R

CLARION











CLARION

CRX83R

CLARION



93C46







CLARION

CRX85R

CLARION

D75116GF 762

S2914







CLARION

CRX87R

CLARION











CLARION

CRX91R  PE9438A

CLARION

D75116GF 762

93C46







CLARION

CRX95R

CLARION



93C46 smd







CLARION

FINISH LINE 411

CLARION

D1723G 585









CLARION

FINISH LINE 441

CLARION

D1723G 595









CLARION

FINISH LINE 511  PT9342

CLARION



S24H30

TA8210





CLARION

FINISH LINE 540

CLARION

D1723GF









CLARION

FINISH LINE 611 PT9344

CLARION

O51-1141-02

S24H30







CLARION

FINISH LINE 742

CLARION

D75116GF 763

S2914







CLARION

FINISH LINE 842

CLARION

D75116GF 763

S2914







CLARION

FINISH LINE 900  PT-9197U

CLARION

051-0794-00  D1714G









CLARION

FINISH LINE 901  PT-9196U

CLARION

CLARION 051-0794-00









CLARION

PE-2022A

CLARION











CLARION

PE-9094A

CLARION











CLARION

PE-9097B

CLARION











CLARION

PE-9840W01

CLARION

D17003AGF 653

93C46







CLARION

PI-9413N

CLARION











CLARION

PN-2056D U CD

CLARION

D75004G752

93C46

NEMA





CLARION

PN-9270U

CLARION

051-0794-10









CLARION

PN-9410F

CLARION

LC7230

S24H30    S2444







CLARION

PN-9483L CT259 ili CT439

CLARION

LC7230-8339

S24H30







CLARION

PN-9484L

CLARION



S24H30







CLARION

PN-9270N LX968

CLARION

LC7232

S24H30







CLARION

PN-9524U CK96B

CLARION

LC7232A

S24H30







CLARION

PN-9525U CK98B

CLARION



S24H30







CLARION

PN-9726U CK953

CLARION

D17006AGF 607

S2914

MC13306T3S





CLARION

PN-9728

CLARION











CLARION

PN-9886D

CLARION

D75116GF763

93C46 smd

MC13304T3S





CLARION

PN-9908U  CK954

CLARION

D17006AGF 621 Iili 646

S2914 smd

MC13306T3S





CLARION

PP-9410L RDS

CLARION











CLARION

PP-9484H

CLARION











CLARION

PT-9653U

CLARION











CLARION

PU-1633A

CLARION

D78F4216

93C46







CLARION

PU-2295A

CLARION











CLARION

PU-2358

CLARION



24C02







CLARION

PU-2380

CLARION



24C02







CLARION

PU-2471A  bez displeja

CLARION

D784216GF 109

24C02







CLARION

PU-2975A

CLARION











CLARION

PU-9252A

CLARION

051-0794-00  D1714G









CLARION

PU-9270U

CLARION











CLARION

PU-9312B

CLARION











CLARION

PU-9317A

CLARION

D1719G 593









CLARION

PU-9318A

CLARION

D1719G 593









CLARION

PU-9347

CLARION











CLARION

PU-9353

CLARION











CLARION

PU-9357A

CLARION

D1719G 584









CLARION

PU-9358A

CLARION

D1719G 584  051-1155-01



4xTA8201AK





CLARION

PU-9359A

CLARION

D1719G 608









CLARION

PU-9387A

CLARION











CLARION

PU-9427A

CLARION

D1719G 608









CLARION

PU-9526U

CLARION











CLARION

PU-9527A

CLARION

D1719G









CLARION

PU-9534A

CLARION

D1723GF 679



TA7270P



PEUGEOT

CLARION

PU-9548

CLARION











CLARION

PU-9554A

CLARION











CLARION

PU-9571A

CLARION











CLARION

PU-9637A

CLARION











CLARION

PU-9654P

CLARION

D1719G 593









CLARION

PU-9667A

CLARION











CLARION

PU-9716

CLARION











CLARION

PU-9879

CLARION

D17006AGF 646

93C46 smd







CLARION

PU-9879A

CLARION

D7008AG F625 + D75518AGF 181

93C46 smd







CLARION

PU-9940

CLARION



93C46 smd









CLARION 940HP PE-9097A CLARION CLARION 051-0794-00   TA7250BP + TA7251BP
CLARION 949HP PE-9096A CLARION CLARION 051-0794-00
CLARION 950HX PE-9095A CLARION CLARION 051-0794-00
CLARION 959HX PE-9094A CLARION CLARION 051-0794-00   TA7280P + TA7281P
CLARION 960HP PE-9093B CLARION CLARION 051-0794-00
CLARION 960HX CLARION CLARION 051-0794-00
CLARION 969HX PE-9092A CLARION CLARION 051-0794-00
CLARION 971HX PE-9187A CLARION CLARION 051-1141-01 S2430
CLARION 985MX CLARION CLARION 051-0849-21 NMC9306 NO
CLARION 986MX CLARION CLARION 051-0849-21 NMC9306
CLARION ADX5555RZ CLARION   93C46 smd
CLARION ADX5655RZ CLARION M30624MGD28FP    052-3914-01 93C46 LA4743B
CLARION ADX5655Z CLARION M30620MC-D89FP   052-3913-01 NO LA4743B
CLARION ADZ628R CLARION M30624MGA-E23FP  052-3922-00 93C46
CLARION ARB4171R  panel CLARION D17006AGF622 93C46 smd TDA8561Q
CLARION CDC-6000 CLARION   S24H30
CLARION CDC-6300  PE-2048A CLARION D75312GF115 or GF082 S2914 smd TA8210AH
CLARION CDC-6700R CLARION D75116GFE62 S2914 smd
CLARION CDC-7000 CLARION CLARION 051-1021-01   NO
CLARION CR705R  PE-9963E  panel CLARION D17006AGF622 93C46 smd TDA8561Q
CLARION CRH33  PE9569A CLARION D1723GF585
CLARION CRH60 CLARION   S24H30
CLARION CRH61 PE-9413A CLARION CLARION 051-1141-02 S2430
CLARION CRH70 PE-9412A CLARION CLARION 051-1141-02 S2430
CLARION CRH71  PE-9411A CLARION CLARION 051-1141-02 S24H30 TA8205AH
CLARION CRH81R PE-9439A CLARION D75328GC115 93C46
CLARION CRM57R CLARION D17006AGF608 93C46 smd TA8215AH
CLARION CRX62 CLARION   S24H30
CLARION CRX63R CLARION D17006GF523 S2914 smd MC13306T3S
CLARION CRX67R CLARION LC7537AN + D17006AGF S2914 smd MC13306T3S
CLARION CRX71 CLARION   S2430
CLARION CRX72 CLARION CLARION 051-1141-02/8236 S2430
CLARION CRX73 CLARION D753126F145 93C06
CLARION CRX74 CLARION D75312GF145 93C06
CLARION CRX75R PE-9639A CLARION D17006AGF611 or GF523 S2914 smd
CLARION CRX77R CLARION D17006AGF608 S2914 smd TA8210
CLARION CRX83R PE-9586A CLARION D75116GF762 93C46 smd
CLARION CRX85R PE-9586C CLARION D75116GF762 93C46 smd TA8205AH
CLARION CRX87R CLARION D75516GF523   HA13150
CLARION CRX91R   PE-9438A CLARION D75116GF762 93C46 smd
CLARION CRX95R CLARION D75116GF762 S2914 smd TA8205
CLARION CRX111R  PE-9436A CLARION   93C46 smd
CLARION CRX115R  PE-9436C CLARION D75116GF762 93C46 smd TA8205AH
CLARION CRX601R  PE-9868A CLARION D17006AGF622 93C46 smd HA13151
CLARION DB628RMP     24C01 smd
CLARION MAX668RVD CLARION D70F3339GJ V850ES/SJ3 93LC56 smd x 2 TB2906HQ
CLARION PI-9413N CLARION
CLARION PE-2022A CLARION
CLARION PE-9840W01 CLARION D17003AGF653 93C46
CLARION PN-2056D U CD CLARION D75004G752 93C46 NO
CLARION PN-9270U CLARION CLARION 051-0794-10   TA7250BP + TA7251BP
CLARION PN-9483L  CT259  or CT439 CLARION LC7230-8339 24H30 TA8205
CLARION PN-9484L CLARION   24H30
CLARION PN-9524U  CK96B CLARION LC7232A S24H30
CLARION PN-9525U  CK68B CLARION D1714 S24H30
CLARION PN-9726U  CK953 CLARION D17006AGF607 S2914 smd MC13306T3S
CLARION PN-9908U  CK954 CLARION D17006AGF621 or AGF646 S2914 smd MC13306T3S
CLARION PN-9410F CLARION LC7230 S24H30
CLARION PP-9484H CLARION   S24H30
CLARION PU-2194A CLARION D178018GC556
CLARION PU-2975A CLARION
CLARION PU-9252A CLARION Clarion 051-0794-00   D1714G
CLARION PU-9317A CLARION D1719G593
CLARION PU-9347 CLARION
CLARION PU-9353 CLARION
CLARION PU-9357A CLARION D1719G584
CLARION PU-9358A CLARION CLARION 051-1155-01 (D1719G584)   TA8201AK x 4
CLARION PU-9359A CLARION D1719G608   TA8201K x 4
CLARION PU-9387 CLARION
CLARION PU-9427A CLARION D1719G608   TA8201AK x 4
CLARION PU-9527A CLARION D1719G
CLARION PU-9534A CLARION D1723GF679   TA7270P
CLARION PU-9554A CLARION
CLARION PU-9571A CLARION
CLARION PU-9637A CLARION
CLARION PU-9667A CLARION
CLARION PU-9940 CLARION   93C46 smd
CLARION FINISH LINE 411  PT-9649U CLARION D1723G585 or G595   TA8210H
CLARION FINISH LINE 511  PT-9342U CLARION CLARION 051-1141-02 S24H30 TA8210H
CLARION FINISH LINE 540 CLARION D1723GF
CLARION FINISH LINE 541  PT-9651U CLARION D1723GF585   TA8205AH
CLARION FINISH LINE 611  PT-9344U CLARION CLARION 051-1141-02 S24H30
CLARION FINISH LINE 742  PT-9653V CLARION D75116GF763 + D75328GC521 S2914 smd TA8205AH
CLARION FINISH LINE 842 CLARION D75116GF763 S2914 smd
CLARION FINISH LINE 900 CLARION
CLARION FINISH LINE 901  PT-9196U CLARION CLARION 051-0794-00
CLARION WXZ-466MP CLARION
CLARION WXZ-468RMP  PE-2758E-B CLARION D703272YGC307 93LC46 smd
