ROVER
Car Radio Stereo Audio Wiring
Diagram Autoradio connector wire installation
schematic schema esquema de conexiones stecker konektor
connecteur
cable shema car stereo harness wire speaker pinout connectors
power how to install
|
|
| |
|
|
Rover 75 car stereo wiring diagram harness
pinout

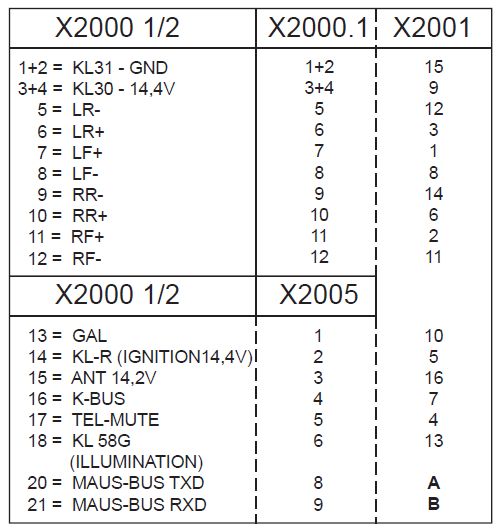

Rover 45 Rover 75 Rover 25 Blaupunkt CD43 stereo wiring connector

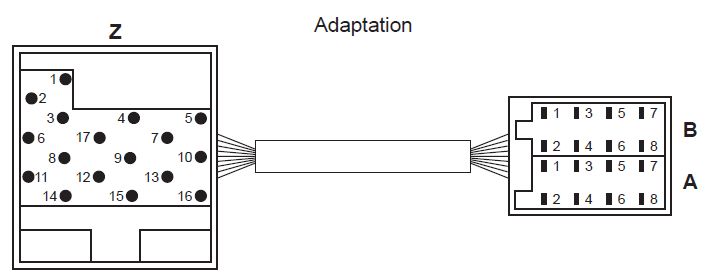

adaptation iso

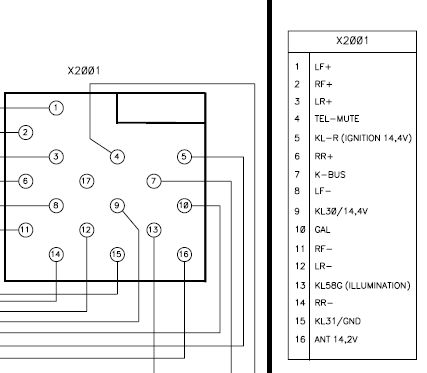

Rover 45 Rover 75 Rover 25 Blaupunkt CD43 stereo wiring connector
| |
|
Car radio |
Model autoradio |
Manufacturer |
MCU |
EEPROM |
IC Amplifier |
CD changer |
Car |
|
ROVER
|
22 DC349/60B |
PHILIPS |
|
24C04 |
|
|
ROVER 200 |
|
ROVER |
22 DC494 |
PHILIPS |
|
|
2xTDA1518AQ |
|
|
|
ROVER |
22 DC570 |
PHILIPS |
|
|
|
|
|
|
ROVER |
22 DC594/60S |
PHILIPS |
|
|
|
|
|
|
ROVER |
22 DC594/60E |
PHILIPS |
|
24C16 |
|
|
|
|
ROVER |
22 DC597/60E |
PHILIPS |
|
|
|
|
|
|
ROVER |
22 DC652/60 |
PHILIPS |
|
24C02 |
2xTDA1516Q |
|
|
|
ROVER |
22 DC681/60 |
PHILIPS |
TMP47P800N |
24C02 |
|
|
ROVER 75 |
|
ROVER |
22 DC745/60 |
PHILIPS |
P83CE560EFB040 |
24C16 |
|
|
|
|
ROVER |
22 DC785/60Z |
PHILIPS |
|
24C16 |
|
|
|
|
ROVER |
39100 |
BLAUPUNKT |
|
|
|
|
|
|
ROVER |
39100-SN8-E20 C BP2013
|
BLAUPUNKT
|
MC68HC05B6 (8925902467) |
|
|
|
|
|
ROVER |
A BP2011 |
BLAUPUNKT |
|
93C46 |
|
|
|
|
ROVER |
AL7RV630 |
ALPINE |
|
24C02 smd |
|
|
|
|
ROVER |
B BP2012 |
BLAUPUNKT |
|
93C46 |
|
|
|
|
ROVER |
C42 |
|
|
|
|
|
ROVER 25 , ROVER 45 |
|
ROVER |
CD32 BP2162 |
BLAUPUNKT |
|
|
|
|
ROVER 25 , ROVER 45 |
|
ROVER |
CD43 DIN BP9262 |
BLAUPUNKT |
|
25C160 |
|
|
ROVER 25 , ROVER 45 |
|
ROVER |
CD43 DIN BP9262 |
BLAUPUNKT |
|
|
|
|
ROVER 75 |
|
ROVER |
HIGH LINE |
ALPINE |
|
|
|
|
ROVER 25 , ROVER 45 , MGF |
|
ROVER |
MG CD43 DIN |
BLAUPUNKT |
|
25C160 |
|
|
|
|
ROVER |
PU-9590B |
CLARION |
D75116GF 763 |
S2914 |
|
|
ROVER 75 |
|
ROVER |
XQD101043PUY |
ALPINE |
|
24C02 |
2xTDA7376B |
|
|
|
ROVER |
CD BP0623 |
BLAUPUNKT |
H11-02A162W (8924904674)
|
25L160 |
|
|
|
|
ROVER |
|
BLAUPUNKT |
|
|
|
|
|
|
ROVER |
|
BLAUPUNKT |
|
|
|
|
|
|
ROVER |
|
BLAUPUNKT |
|
|
|
|
|
|
ROVER |
|
BLAUPUNKT |
|
|
|
|
|
|
ROVER |
|
BLAUPUNKT |
|
|
|
|
|
|
ROVER |
|
BLAUPUNKT |
|
|
|
|
|
|
|
| |
|
ROVER |
AL7RV630 wide panel |
ALPINE |
D78P058FGC |
24C02 smd |
TDA7385 |
|
ROVER |
wide panel |
ALPINE |
51T85523 |
24C02 smd |
|
|
ROVER |
wide panel |
ALPINE |
|
24C02 |
|
|
ROVER |
wide panel |
ALPINE |
51T85523W03 135 + D78P058FGC |
24C02 |
TDA7385 |
|
ROVER |
CC + CD |
DELCO |
D70F3029Y (09382045) |
9355093 |
|
|
ROVER |
A BP2011 |
BLAUPUNKT |
ST6154Q8/RC (8925901007) |
93C46 |
TDA2005 |
|
ROVER |
B BP2012 |
BLAUPUNKT |
|
93C46 |
|
|
ROVER |
C BP2013 |
BLAUPUNKT |
MC68HC05B6 (8925902467 or 900914) |
|
|
|
ROVER |
CD BP0263 |
BLAUPUNKT |
H11-02A162W (8925904674) |
25C160 smd |
TDA7376B x 2 |
|
ROVER |
CD43 BP9262 |
BLAUPUNKT |
|
25C160 smd |
|
|
ROVER |
BP9263 |
BLAUPUNKT |
H11-9CAHF2W (8925904453) |
25C160 smd |
TDA7376B x 2 |
|
ROVER |
MG CD43 |
BLAUPUNKT |
|
25C160 smd |
|
|
ROVER |
MG CD413X |
VDO |
TMP87P21F |
24C16 |
TDA7384A |
|
ROVER |
CD-80 |
ROVER |
D17078GF657 |
24C01 |
TDA7561 |
|
ROVER |
CR-80 IX-T03 |
|
D178F098GF |
24C01 smd |
TDA7561 |
|
ROVER |
R660 22 DC349/60E |
PHILIPS |
47C620DFN777 349/60E V1.0 |
24C04 |
TDA7374B |
|
ROVER |
R750 |
PHILIPS |
|
|
|
|
ROVER |
R760 22 DC594/60E without display |
PHILIPS |
P83CE558EFB109 or EFB040 |
24W16 |
TDA7374 |
|
ROVER |
R860 22 DC594/60S without display |
PHILIPS |
P83CE558EFB108 or P83CE558EFB039 |
24W16 |
TDA7375 |
|
ROVER |
R960 22 DC710/60B |
PHILIPS |
P83C528FFB |
24C08 |
TDA1553Q x 2 |
|
ROVER |
22 DC597/60E |
PHILIPS |
|
|
|
|
ROVER |
22 DC597/60L |
PHILIPS |
P83CE560EFB053 |
24C16 |
TDA7375 x 2 |
|
ROVER |
22 DC652/60E |
PHILIPS |
TMP47C421AF8807 |
24C02 |
|
|
ROVER |
22 DC652/60R |
PHILIPS |
TMP47C421AF8807 |
24C02 |
TDA1518BQ |
|
ROVER |
22 DC681/60 |
PHILIPS |
TMP47P800N |
24C02 |
TDA1516Q x 2 |
|
ROVER |
22 DC745/60 |
PHILIPS |
P83CE560EFB040 RC1 ROVER C42 |
24C16 smd |
TDA7375 |
|
ROVER |
22 DC745/60B |
PHILIPS |
|
24C16 smd |
TDA7375 |
|
ROVER |
22 DC785/60Z |
PHILIPS |
P87CE560EFB01 |
24C16 |
|
|
ROVER |
PU-9590B |
CLARION |
D75116GF763 |
S2914 smd |
|
|
ROVER |
|
ALPINE |
51T85524W03 133 + 51T85523W03 135 |
24C02 smd |
|
|
ROVER |
|
VDO |
TMP87PD21F |
24C32 |
|
|
|
| |
